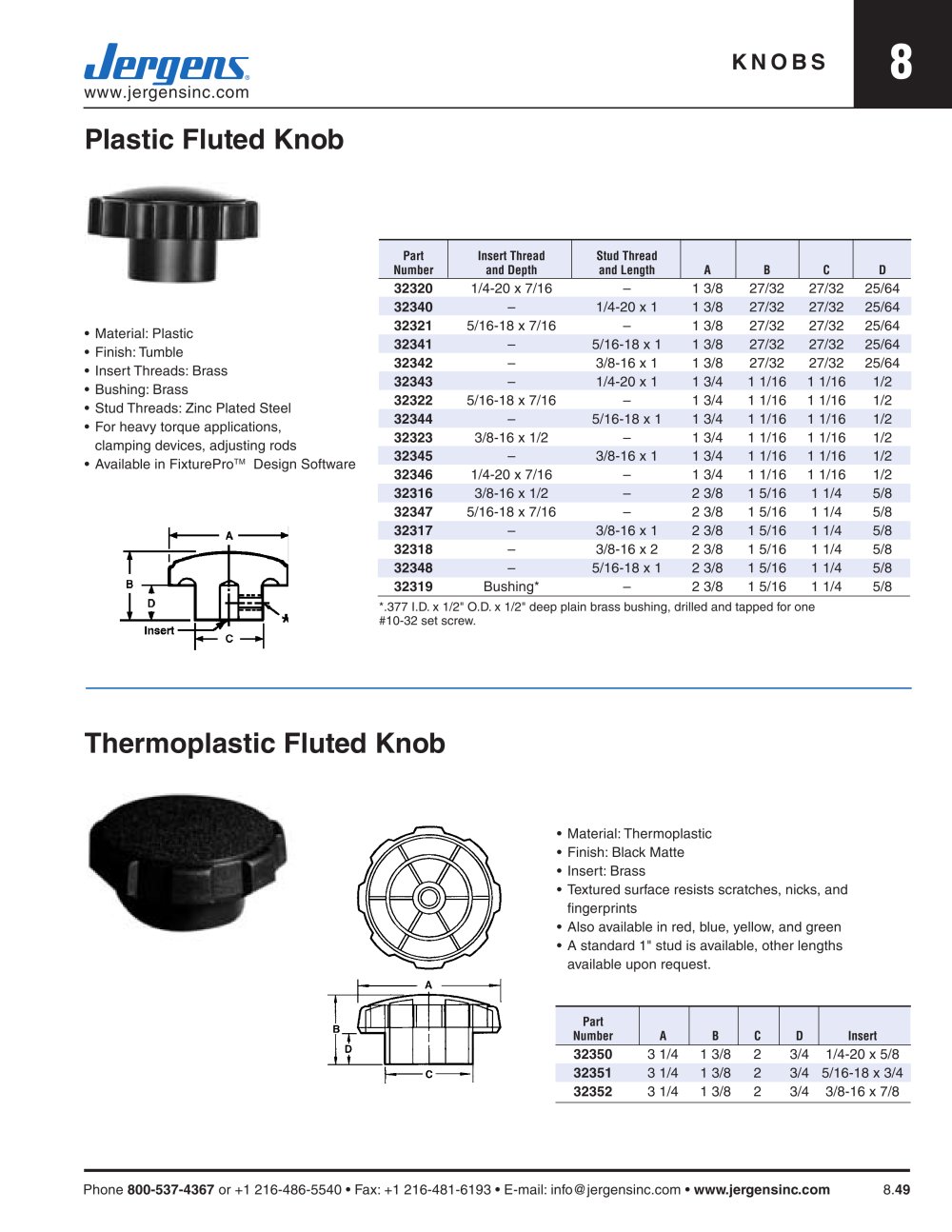

KNOBS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.49 Part Number A B C D Insert 32350 3 1/4 1 3/8 2 3/4 1/4-20 x 5/8 32351 3 1/4 1 3/8 2 3/4 5/16-18 x 3/4 32352 3 1/4 1 3/8 2 3/4 3/8-16 x 7/8 Plastic Fluted Knob *.377 I.D. x 1/2" O.D. x 1/2" deep plain brass bushing, drilled and tapped for one #10-32 set screw. Thermoplastic Fluted Knob • Material: Thermoplastic • Finish: Black Matte • Insert: Brass • Textured surface resists scratches, nicks, and fingerprints • Also available in red, blue, yellow, and green • A standard 1" stud is available, other lengths available upon request. • Material: Plastic • Finish: Tumble • Insert Threads: Brass • Bushing: Brass • Stud Threads: Zinc Plated Steel • For heavy torque applications, clamping devices, adjusting rods • Available in FixtureProTM Design Software Part Insert Thread Stud Thread Number and Depth and Length A B C D 32320 1/4-20 x 7/16 – 1 3/8 27/32 27/32 25/64 32340 – 1/4-20 x 1 1 3/8 27/32 27/32 25/64 32321 5/16-18 x 7/16 – 1 3/8 27/32 27/32 25/64 32341 – 5/16-18 x 1 1 3/8 27/32 27/32 25/64 32342 – 3/8-16 x 1 1 3/8 27/32 27/32 25/64 32343 – 1/4-20 x 1 1 3/4 1 1/16 1 1/16 1/2 32322 5/16-18 x 7/16 – 1 3/4 1 1/16 1 1/16 1/2 32344 – 5/16-18 x 1 1 3/4 1 1/16 1 1/16 1/2 32323 3/8-16 x 1/2 – 1 3/4 1 1/16 1 1/16 1/2 32345 – 3/8-16 x 1 1 3/4 1 1/16 1 1/16 1/2 32346 1/4-20 x 7/16 – 1 3/4 1 1/16 1 1/16 1/2 32316 3/8-16 x 1/2 – 2 3/8 1 5/16 1 1/4 5/8 32347 5/16-18 x 7/16 – 2 3/8 1 5/16 1 1/4 5/8 32317 – 3/8-16 x 1 2 3/8 1 5/16 1 1/4 5/8 32318 – 3/8-16 x 2 2 3/8 1 5/16 1 1/4 5/8 32348 – 5/16-18 x 1 2 3/8 1 5/16 1 1/4 5/8 32319 Bushing* – 2 3/8 1 5/16 1 1/4 5/8
