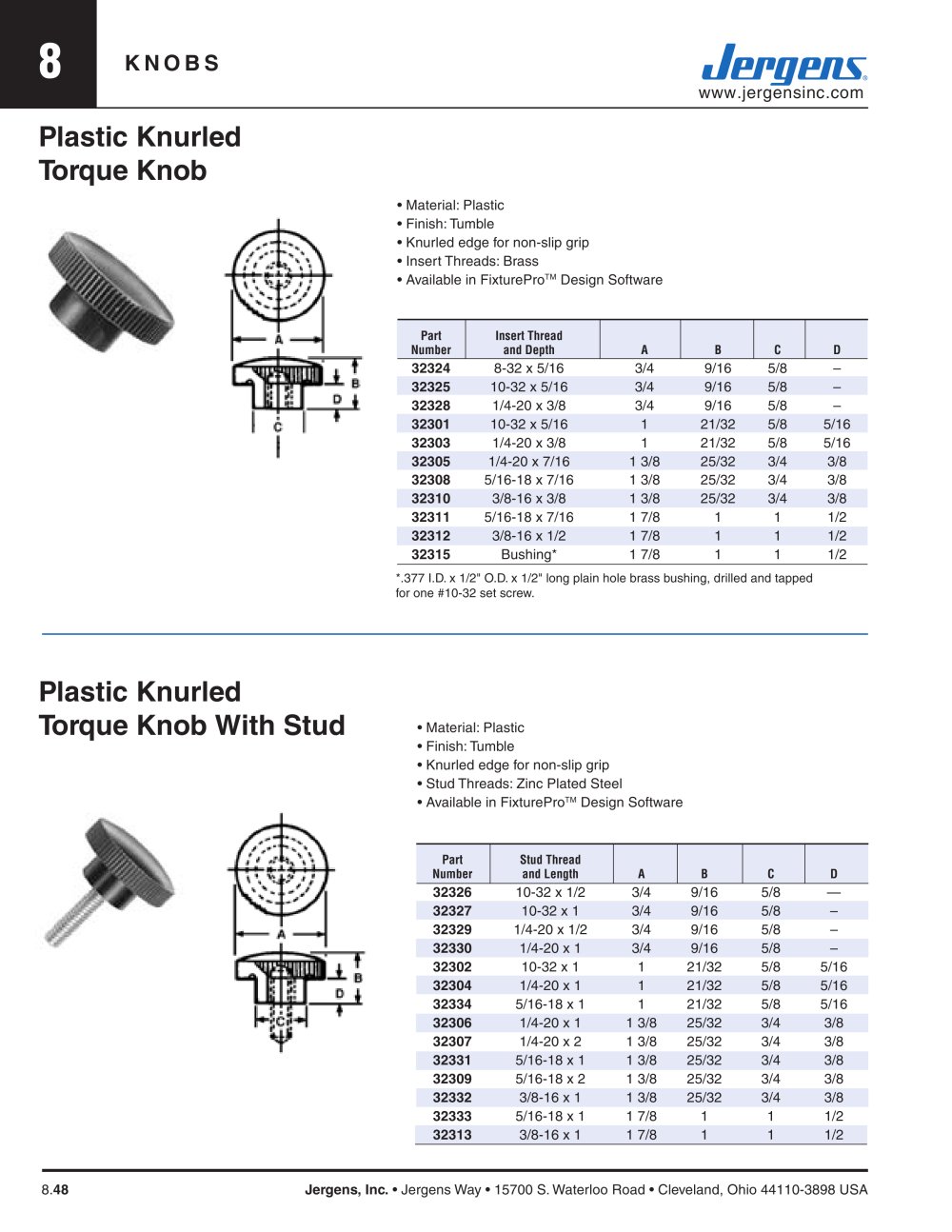

8 KNOBS www.jergensinc.com 8.48 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA *.377 I.D. x 1/2" O.D. x 1/2" long plain hole brass bushing, drilled and tapped for one #10-32 set screw. Plastic Knurled Torque Knob • Material: Plastic • Finish: Tumble • Knurled edge for non-slip grip • Insert Threads: Brass • Available in FixtureProTM Design Software Part Insert Thread Number and Depth A B C D 32324 8-32 x 5/16 3/4 9/16 5/8 – 32325 10-32 x 5/16 3/4 9/16 5/8 – 32328 1/4-20 x 3/8 3/4 9/16 5/8 – 32301 10-32 x 5/16 1 21/32 5/8 5/16 32303 1/4-20 x 3/8 1 21/32 5/8 5/16 32305 1/4-20 x 7/16 1 3/8 25/32 3/4 3/8 32308 5/16-18 x 7/16 1 3/8 25/32 3/4 3/8 32310 3/8-16 x 3/8 1 3/8 25/32 3/4 3/8 32311 5/16-18 x 7/16 1 7/8 1 1 1/2 32312 3/8-16 x 1/2 1 7/8 1 1 1/2 32315 Bushing* 1 7/8 1 1 1/2 • Material: Plastic • Finish: Tumble • Knurled edge for non-slip grip • Stud Threads: Zinc Plated Steel • Available in FixtureProTM Design Software Plastic Knurled Torque Knob With Stud Part Stud Thread Number and Length A B C D 32326 10-32 x 1/2 3/4 9/16 5/8 — 32327 10-32 x 1 3/4 9/16 5/8 – 32329 1/4-20 x 1/2 3/4 9/16 5/8 – 32330 1/4-20 x 1 3/4 9/16 5/8 – 32302 10-32 x 1 1 21/32 5/8 5/16 32304 1/4-20 x 1 1 21/32 5/8 5/16 32334 5/16-18 x 1 1 21/32 5/8 5/16 32306 1/4-20 x 1 1 3/8 25/32 3/4 3/8 32307 1/4-20 x 2 1 3/8 25/32 3/4 3/8 32331 5/16-18 x 1 1 3/8 25/32 3/4 3/8 32309 5/16-18 x 2 1 3/8 25/32 3/4 3/8 32332 3/8-16 x 1 1 3/8 25/32 3/4 3/8 32333 5/16-18 x 1 1 7/8 1 1 1/2 32313 3/8-16 x 1 1 7/8 1 1 1/2
