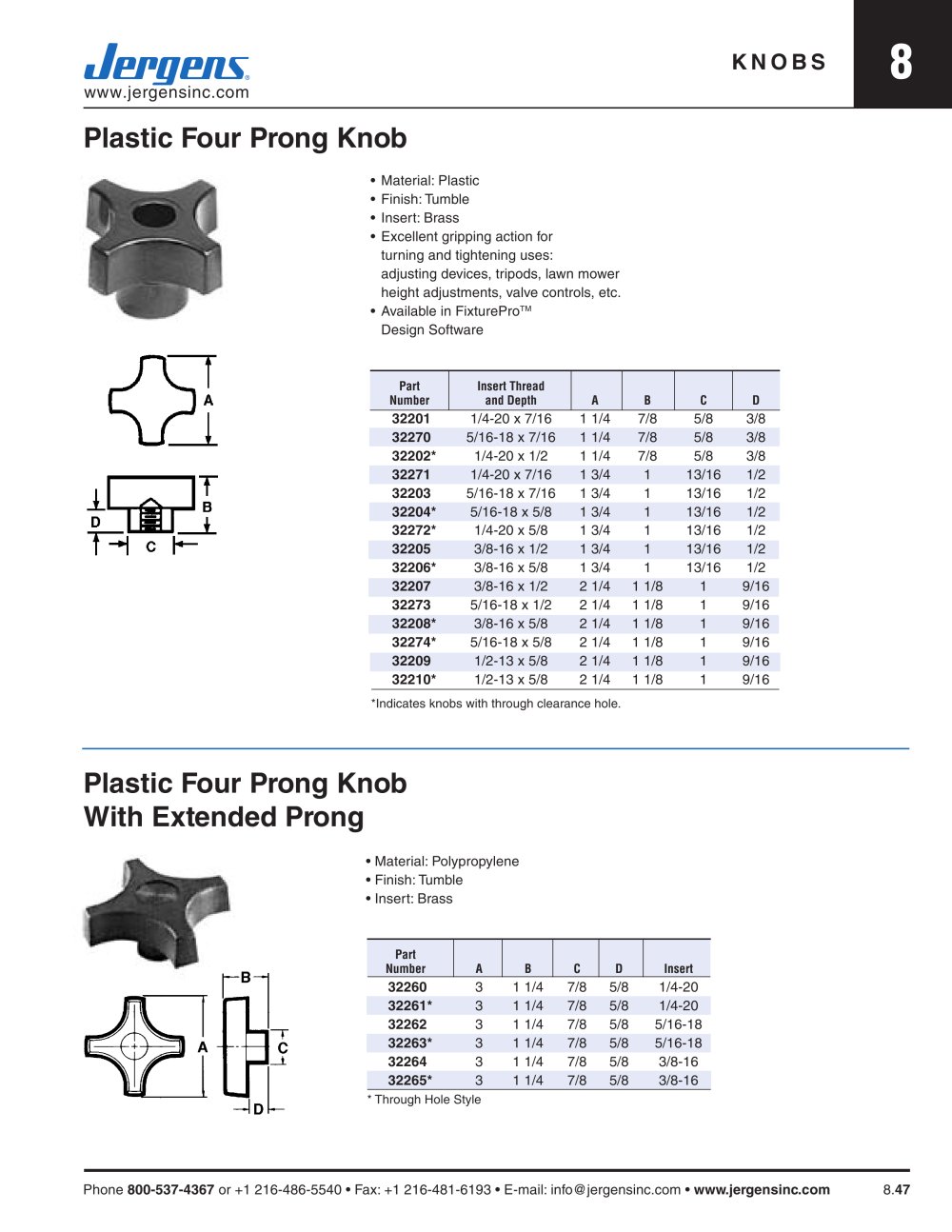

KNOBS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.47 • Material: Plastic • Finish: Tumble • Insert: Brass • Excellent gripping action for turning and tightening uses: adjusting devices, tripods, lawn mower height adjustments, valve controls, etc. • Available in FixtureProTM Design Software Plastic Four Prong Knob Part Insert Thread Number and Depth A B C D 32201 1/4-20 x 7/16 1 1/4 7/8 5/8 3/8 32270 5/16-18 x 7/16 1 1/4 7/8 5/8 3/8 32202* 1/4-20 x 1/2 1 1/4 7/8 5/8 3/8 32271 1/4-20 x 7/16 1 3/4 1 13/16 1/2 32203 5/16-18 x 7/16 1 3/4 1 13/16 1/2 32204* 5/16-18 x 5/8 1 3/4 1 13/16 1/2 32272* 1/4-20 x 5/8 1 3/4 1 13/16 1/2 32205 3/8-16 x 1/2 1 3/4 1 13/16 1/2 32206* 3/8-16 x 5/8 1 3/4 1 13/16 1/2 32207 3/8-16 x 1/2 2 1/4 1 1/8 1 9/16 32273 5/16-18 x 1/2 2 1/4 1 1/8 1 9/16 32208* 3/8-16 x 5/8 2 1/4 1 1/8 1 9/16 32274* 5/16-18 x 5/8 2 1/4 1 1/8 1 9/16 32209 1/2-13 x 5/8 2 1/4 1 1/8 1 9/16 32210* 1/2-13 x 5/8 2 1/4 1 1/8 1 9/16 *Indicates knobs with through clearance hole. • Material: Polypropylene • Finish: Tumble • Insert: Brass Plastic Four Prong Knob With Extended Prong Part Number A B C D Insert 32260 3 1 1/4 7/8 5/8 1/4-20 32261* 3 1 1/4 7/8 5/8 1/4-20 32262 3 1 1/4 7/8 5/8 5/16-18 32263* 3 1 1/4 7/8 5/8 5/16-18 32264 3 1 1/4 7/8 5/8 3/8-16 32265* 3 1 1/4 7/8 5/8 3/8-16 * Through Hole Style
