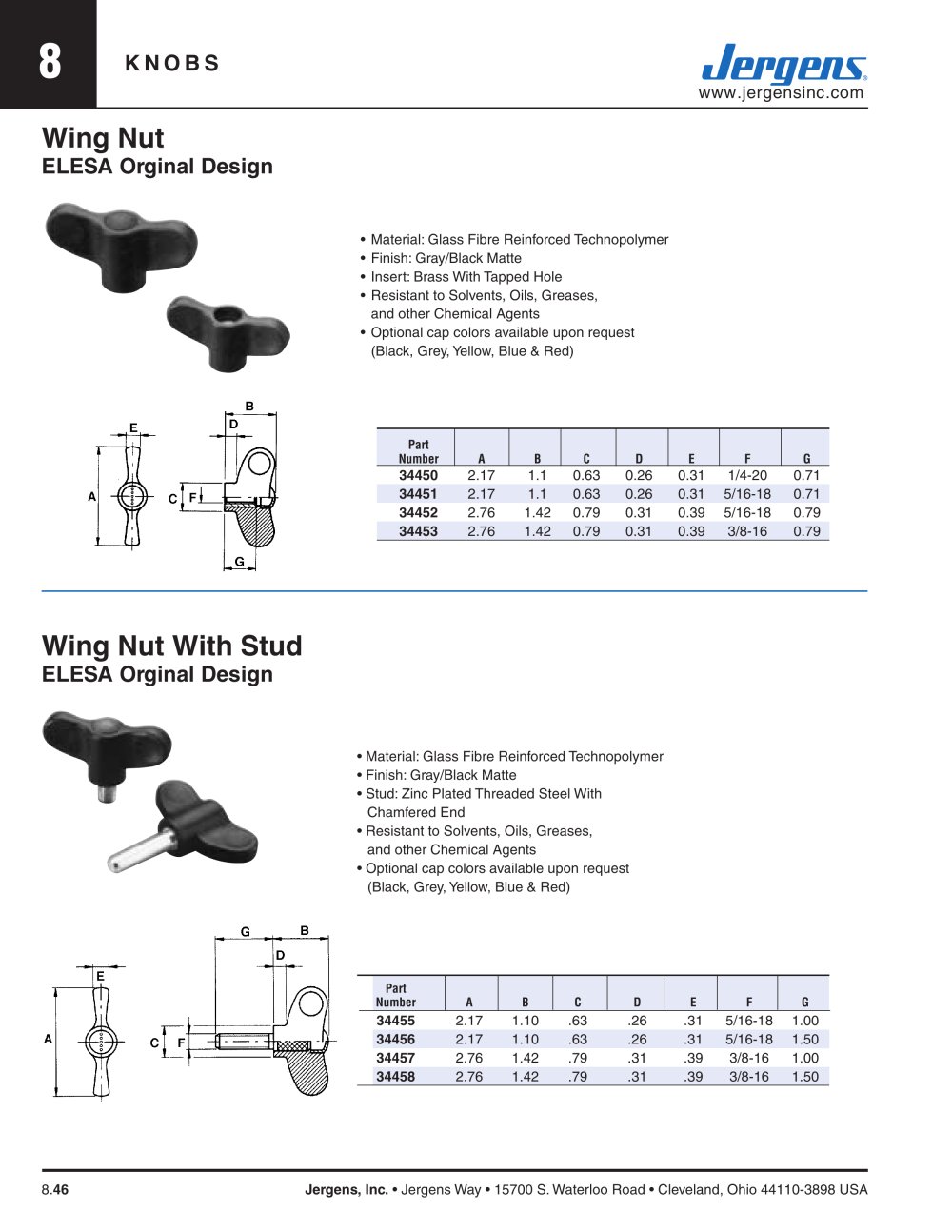

8 KNOBS
www.jergensinc.com
8.46 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA
Wing Nut
Elesa Orginal Design
Wing Nut With Stud
Elesa Orginal Design
• Material: Glass Fibre Reinforced Technopolymer
• Finish: Gray/Black Matte
• Insert: Brass With Tapped Hole
• Resistant to Solvents, Oils, Greases,
and other Chemical Agents
• Optional cap colors available upon request
(Black, Grey, Yellow, Blue & Red)
Part
Number A B C D E F G
34455 2.17 1.10 .63 .26 .31 5/16-18 1.00
34456 2.17 1.10 .63 .26 .31 5/16-18 1.50
34457 2.76 1.42 .79 .31 .39 3/8-16 1.00
34458 2.76 1.42 .79 .31 .39 3/8-16 1.50
• Material: Glass Fibre Reinforced Technopolymer
• Finish: Gray/Black Matte
• Stud: Zinc Plated Threaded Steel With
Chamfered End
• Resistant to Solvents, Oils, Greases,
and other Chemical Agents
• Optional cap colors available upon request
(Black, Grey, Yellow, Blue & Red)
Part
Number A B C D E F G
34450 2.17 1.1 0.63 0.26 0.31 1/4-20 0.71
34451 2.17 1.1 0.63 0.26 0.31 5/16-18 0.71
34452 2.76 1.42 0.79 0.31 0.39 5/16-18 0.79
34453 2.76 1.42 0.79 0.31 0.39 3/8-16 0.79
