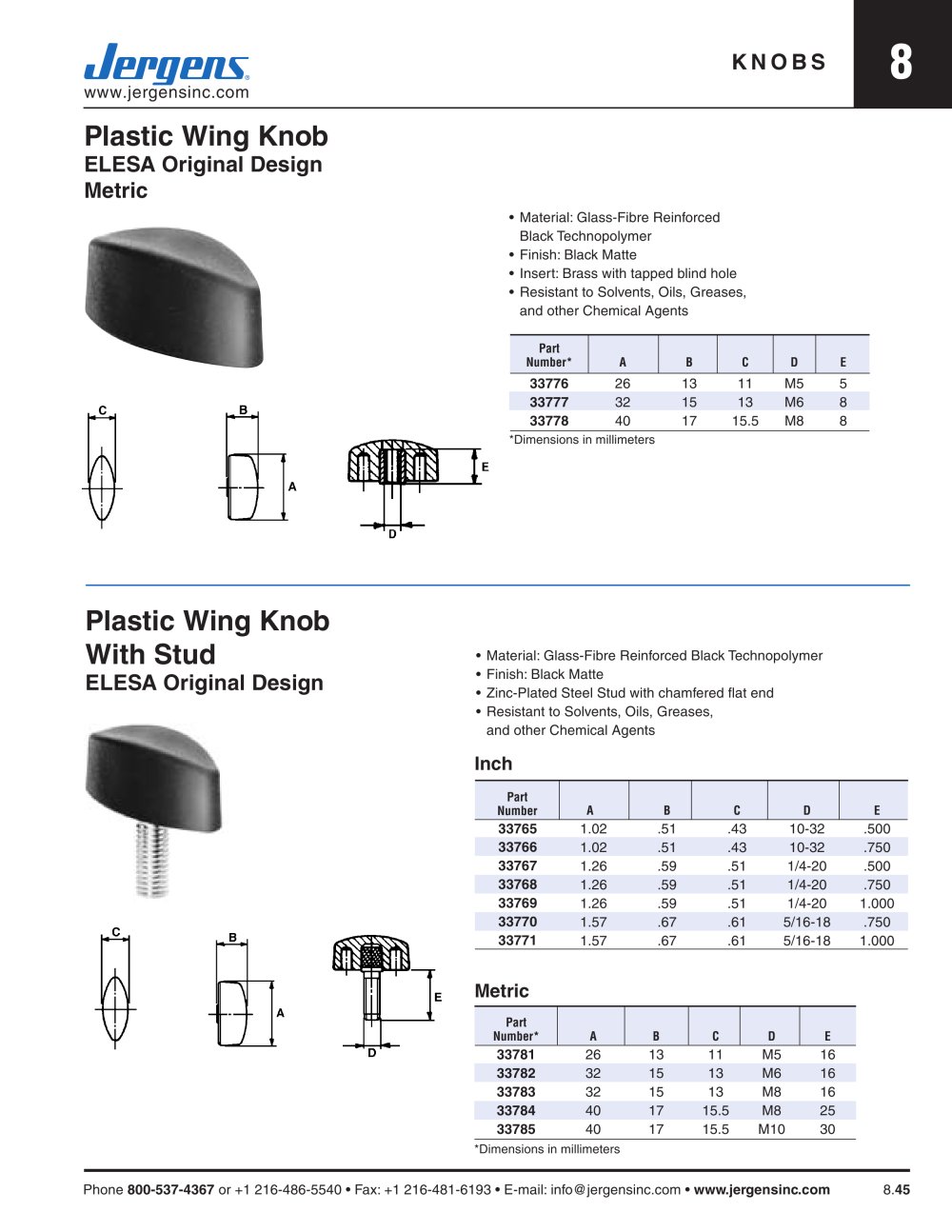

KNOBS 8
www.jergensinc.com
Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.45
Plastic Wing Knob
ELESA Original Design
Metric
• Material: Glass-Fibre Reinforced
Black Technopolymer
• Finish: Black Matte
• Insert: Brass with tapped blind hole
• Resistant to Solvents, Oils, Greases,
and other Chemical Agents
Part
Number* A B C D E
33776 26 13 11 M5 5
33777 32 15 13 M6 8
33778 40 17 15.5 M8 8
Plastic Wing Knob
With Stud
ELESA Original Design
A B C D E
1.02 .51 .43 10-32 .500
1.02 .51 .43 10-32 .750
1.26 .59 .51 1/4-20 .500
1.26 .59 .51 1/4-20 .750
1.26 .59 .51 1/4-20 1.000
1.57 .67 .61 5/16-18 .750
1.57 .67 .61 5/16-18 1.000
Part
Number
• Material: Glass-Fibre Reinforced Black Technopolymer
• Finish: Black Matte
• Zinc-Plated Steel Stud with chamfered flat end
• Resistant to Solvents, Oils, Greases,
and other Chemical Agents
Part
Number* A B C D E
33781 26 13 11 M5 16
33782 32 15 13 M6 16
33783 32 15 13 M8 16
33784 40 17 15.5 M8 25
33785 40 17 15.5 M10 30
33765
33766
33767
33768
33769
33770
33771
Metric
Inch
*Dimensions in millimeters
*Dimensions in millimeters
