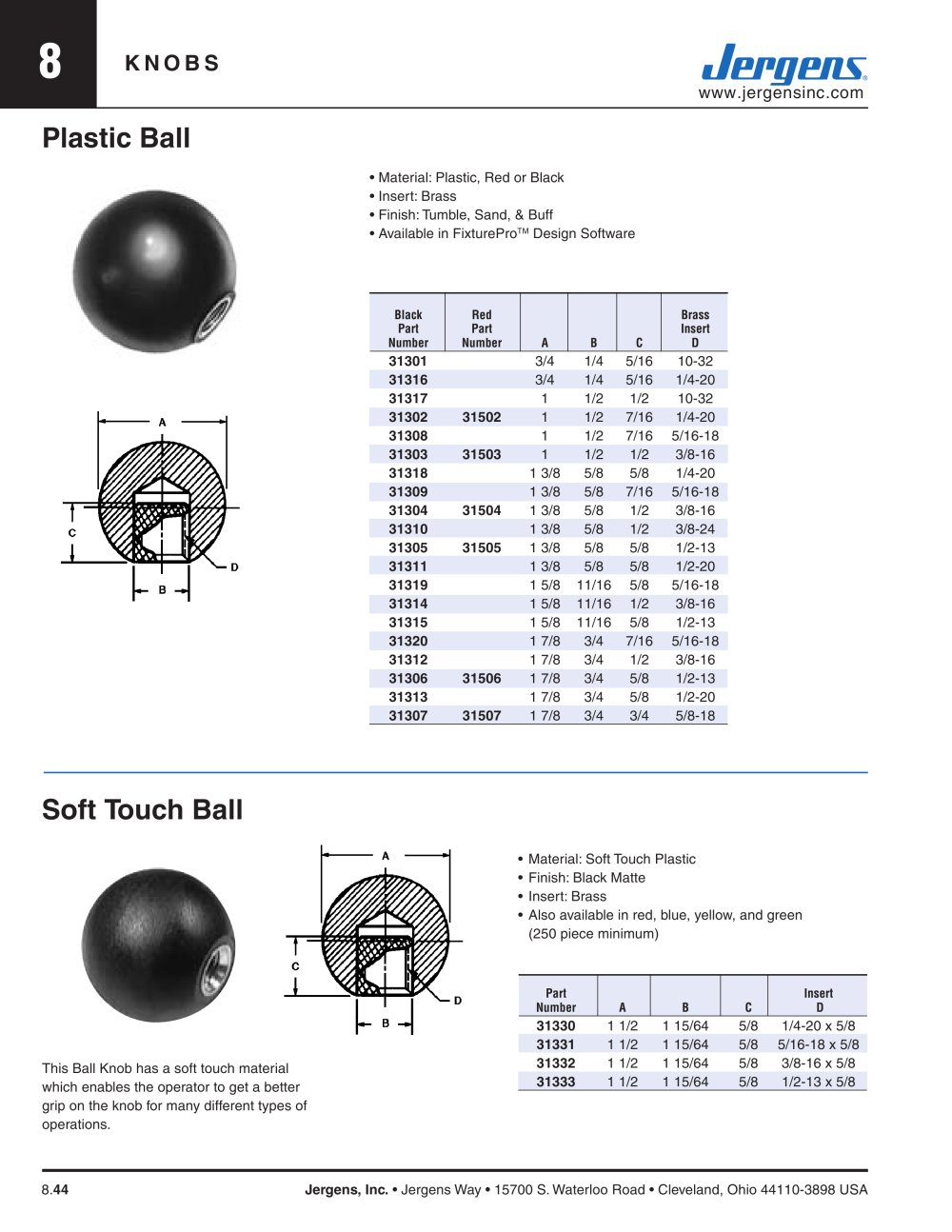

8 KNOBS www.jergensinc.com 8.44 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Part Insert Number A B C D 31330 1 1/2 1 15/64 5/8 1/4-20 x 5/8 31331 1 1/2 1 15/64 5/8 5/16-18 x 5/8 31332 1 1/2 1 15/64 5/8 3/8-16 x 5/8 31333 1 1/2 1 15/64 5/8 1/2-13 x 5/8 Soft Touch Ball Plastic Ball • Material: Plastic, Red or Black • Insert: Brass • Finish: Tumble, Sand, & Buff • Available in FixtureProTM Design Software • Material: Soft Touch Plastic • Finish: Black Matte • Insert: Brass • Also available in red, blue, yellow, and green (250 piece minimum) This Ball Knob has a soft touch material which enables the operator to get a better grip on the knob for many different types of operations. Black Red Brass Part Part Insert Number Number A B C D 31301 3/4 1/4 5/16 10-32 31316 3/4 1/4 5/16 1/4-20 31317 1 1/2 1/2 10-32 31302 31502 1 1/2 7/16 1/4-20 31308 1 1/2 7/16 5/16-18 31303 31503 1 1/2 1/2 3/8-16 31318 1 3/8 5/8 5/8 1/4-20 31309 1 3/8 5/8 7/16 5/16-18 31304 31504 1 3/8 5/8 1/2 3/8-16 31310 1 3/8 5/8 1/2 3/8-24 31305 31505 1 3/8 5/8 5/8 1/2-13 31311 1 3/8 5/8 5/8 1/2-20 31319 1 5/8 11/16 5/8 5/16-18 31314 1 5/8 11/16 1/2 3/8-16 31315 1 5/8 11/16 5/8 1/2-13 31320 1 7/8 3/4 7/16 5/16-18 31312 1 7/8 3/4 1/2 3/8-16 31306 31506 1 7/8 3/4 5/8 1/2-13 31313 1 7/8 3/4 5/8 1/2-20 31307 31507 1 7/8 3/4 3/4 5/8-18
