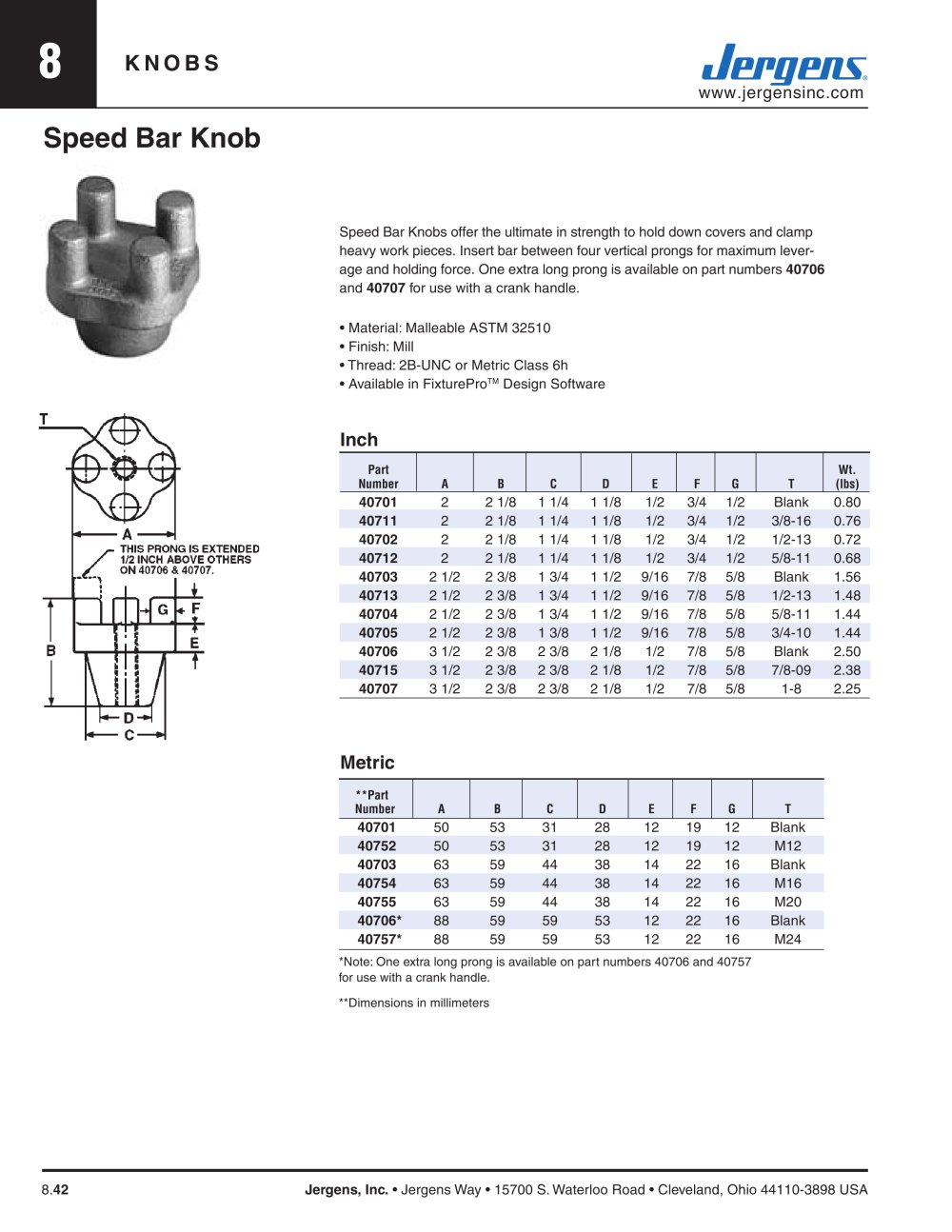

8 KNOBS www.jergensinc.com 8.42 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Speed Bar Knob Speed Bar Knobs offer the ultimate in strength to hold down covers and clamp heavy work pieces. Insert bar between four vertical prongs for maximum leverage and holding force. One extra long prong is available on part numbers 40706 and 40707 for use with a crank handle. • Material: Malleable ASTM 32510 • Finish: Mill • Thread: 2B-UNC or Metric Class 6h • Available in FixtureProTM Design Software Part Wt. Number A B C D E F G T (lbs) 40701 2 2 1/8 1 1/4 1 1/8 1/2 3/4 1/2 Blank 0.80 40711 2 2 1/8 1 1/4 1 1/8 1/2 3/4 1/2 3/8-16 0.76 40702 2 2 1/8 1 1/4 1 1/8 1/2 3/4 1/2 1/2-13 0.72 40712 2 2 1/8 1 1/4 1 1/8 1/2 3/4 1/2 5/8-11 0.68 40703 2 1/2 2 3/8 1 3/4 1 1/2 9/16 7/8 5/8 Blank 1.56 40713 2 1/2 2 3/8 1 3/4 1 1/2 9/16 7/8 5/8 1/2-13 1.48 40704 2 1/2 2 3/8 1 3/4 1 1/2 9/16 7/8 5/8 5/8-11 1.44 40705 2 1/2 2 3/8 1 3/8 1 1/2 9/16 7/8 5/8 3/4-10 1.44 40706 3 1/2 2 3/8 2 3/8 2 1/8 1/2 7/8 5/8 Blank 2.50 40715 3 1/2 2 3/8 2 3/8 2 1/8 1/2 7/8 5/8 7/8-09 2.38 40707 3 1/2 2 3/8 2 3/8 2 1/8 1/2 7/8 5/8 1-8 2.25 **Part Number A B C D E F G T 40701 50 53 31 28 12 19 12 Blank 40752 50 53 31 28 12 19 12 M12 40703 63 59 44 38 14 22 16 Blank 40754 63 59 44 38 14 22 16 M16 40755 63 59 44 38 14 22 16 M20 40706* 88 59 59 53 12 22 16 Blank 40757* 88 59 59 53 12 22 16 M24 *Note: One extra long prong is available on part numbers 40706 and 40757 for use with a crank handle. **Dimensions in millimeters Metric Inch
