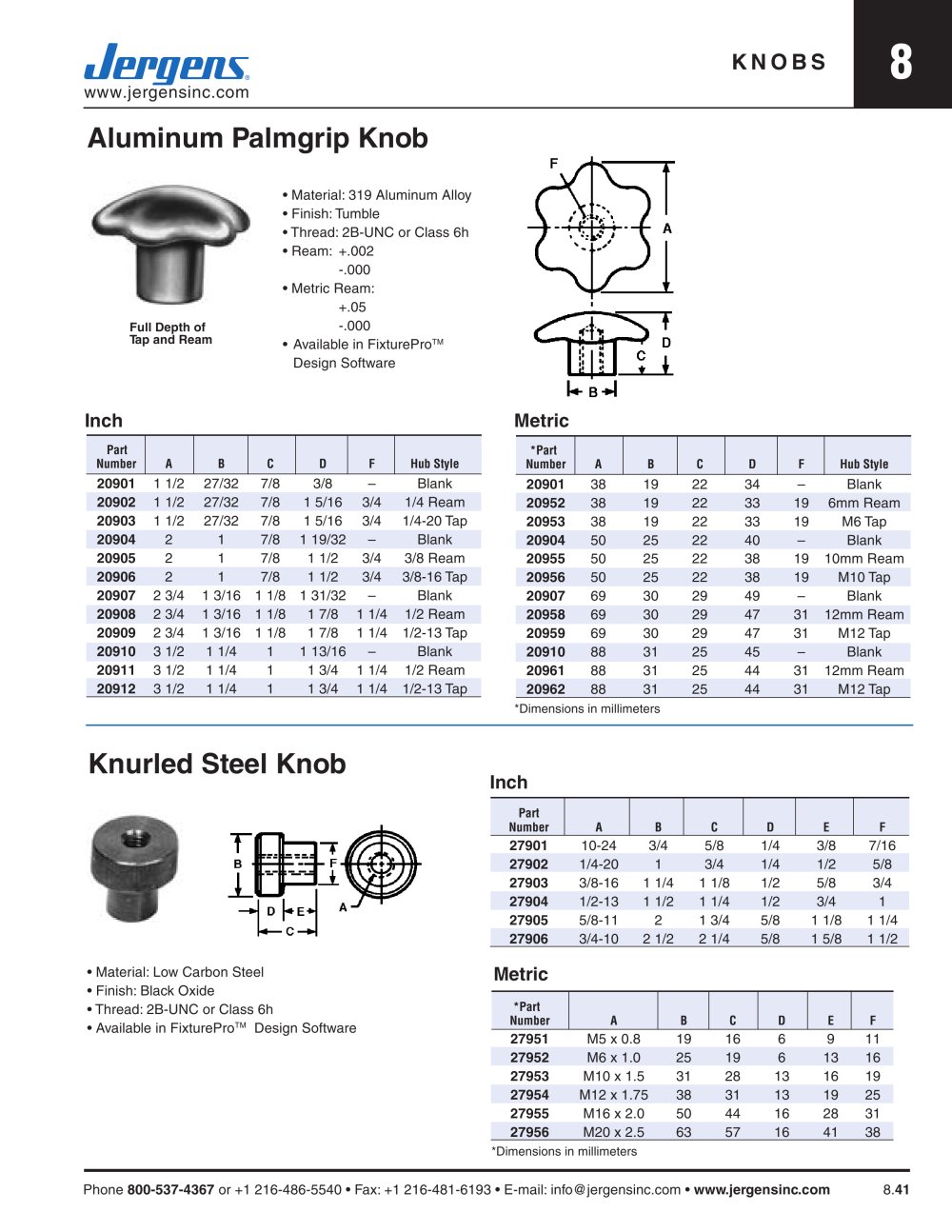

KNOBS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.41 Aluminum Palmgrip Knob • Material: 319 Aluminum Alloy • Finish: Tumble • Thread: 2B-UNC or Class 6h • Ream: +.002 -.000 • Metric Ream: +.05 -.000 • Available in FixtureProTM Design Software Full Depth of Tap and Ream *Part Number A B C D F Hub Style 20901 38 19 22 34 – Blank 20952 38 19 22 33 19 6mm Ream 20953 38 19 22 33 19 M6 Tap 20904 50 25 22 40 – Blank 20955 50 25 22 38 19 10mm Ream 20956 50 25 22 38 19 M10 Tap 20907 69 30 29 49 – Blank 20958 69 30 29 47 31 12mm Ream 20959 69 30 29 47 31 M12 Tap 20910 88 31 25 45 – Blank 20961 88 31 25 44 31 12mm Ream 20962 88 31 25 44 31 M12 Tap *Dimensions in millimeters Inch Metric Inch Knurled Steel Knob Part Number A B C D E F 27901 10-24 3/4 5/8 1/4 3/8 7/16 27902 1/4-20 1 3/4 1/4 1/2 5/8 27903 3/8-16 1 1/4 1 1/8 1/2 5/8 3/4 27904 1/2-13 1 1/2 1 1/4 1/2 3/4 1 27905 5/8-11 2 1 3/4 5/8 1 1/8 1 1/4 27906 3/4-10 2 1/2 2 1/4 5/8 1 5/8 1 1/2 • Material: Low Carbon Steel • Finish: Black Oxide • Thread: 2B-UNC or Class 6h • Available in FixtureProTM Design Software Metric *Part Number A B C D E F 27951 M5 x 0.8 19 16 6 9 11 27952 M6 x 1.0 25 19 6 13 16 27953 M10 x 1.5 31 28 13 16 19 27954 M12 x 1.75 38 31 13 19 25 27955 M16 x 2.0 50 44 16 28 31 27956 M20 x 2.5 63 57 16 41 38 *Dimensions in millimeters Part Number A B C D F Hub Style 20901 1 1/2 27/32 7/8 3/8 – Blank 20902 1 1/2 27/32 7/8 1 5/16 3/4 1/4 Ream 20903 1 1/2 27/32 7/8 1 5/16 3/4 1/4-20 Tap 20904 2 1 7/8 1 19/32 – Blank 20905 2 1 7/8 1 1/2 3/4 3/8 Ream 20906 2 1 7/8 1 1/2 3/4 3/8-16 Tap 20907 2 3/4 1 3/16 1 1/8 1 31/32 – Blank 20908 2 3/4 1 3/16 1 1/8 1 7/8 1 1/4 1/2 Ream 20909 2 3/4 1 3/16 1 1/8 1 7/8 1 1/4 1/2-13 Tap 20910 3 1/2 1 1/4 1 1 13/16 – Blank 20911 3 1/2 1 1/4 1 1 3/4 1 1/4 1/2 Ream 20912 3 1/2 1 1/4 1 1 3/4 1 1/4 1/2-13 Tap
