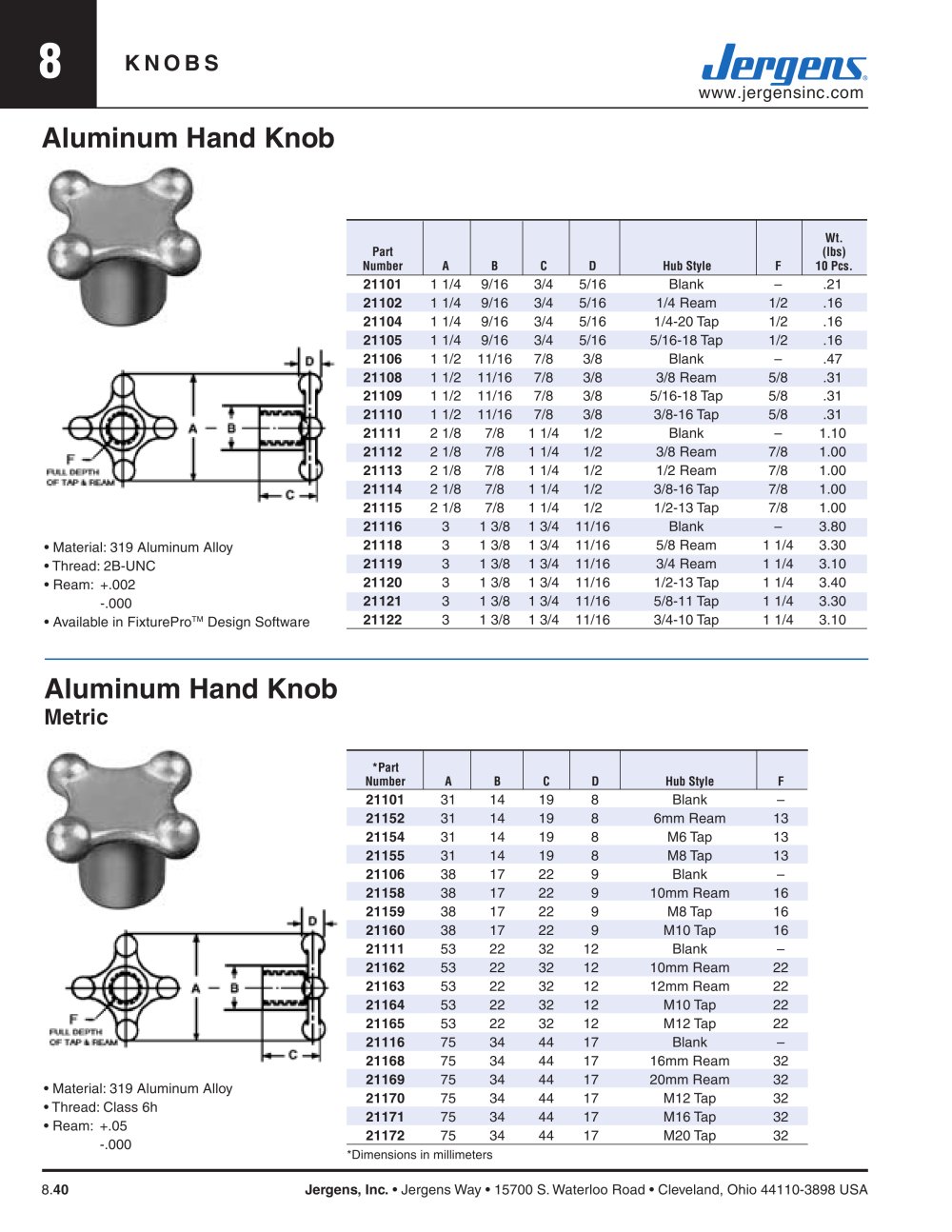

8 KNOBS www.jergensinc.com 8.40 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Wt. Part (lbs) Number A B C D Hub Style F 10 Pcs. 21101 1 1/4 9/16 3/4 5/16 Blank – .21 21102 1 1/4 9/16 3/4 5/16 1/4 Ream 1/2 .16 21104 1 1/4 9/16 3/4 5/16 1/4-20 Tap 1/2 .16 21105 1 1/4 9/16 3/4 5/16 5/16-18 Tap 1/2 .16 21106 1 1/2 11/16 7/8 3/8 Blank – .47 21108 1 1/2 11/16 7/8 3/8 3/8 Ream 5/8 .31 21109 1 1/2 11/16 7/8 3/8 5/16-18 Tap 5/8 .31 21110 1 1/2 11/16 7/8 3/8 3/8-16 Tap 5/8 .31 21111 2 1/8 7/8 1 1/4 1/2 Blank – 1.10 21112 2 1/8 7/8 1 1/4 1/2 3/8 Ream 7/8 1.00 21113 2 1/8 7/8 1 1/4 1/2 1/2 Ream 7/8 1.00 21114 2 1/8 7/8 1 1/4 1/2 3/8-16 Tap 7/8 1.00 21115 2 1/8 7/8 1 1/4 1/2 1/2-13 Tap 7/8 1.00 21116 3 1 3/8 1 3/4 11/16 Blank – 3.80 21118 3 1 3/8 1 3/4 11/16 5/8 Ream 1 1/4 3.30 21119 3 1 3/8 1 3/4 11/16 3/4 Ream 1 1/4 3.10 21120 3 1 3/8 1 3/4 11/16 1/2-13 Tap 1 1/4 3.40 21121 3 1 3/8 1 3/4 11/16 5/8-11 Tap 1 1/4 3.30 21122 3 1 3/8 1 3/4 11/16 3/4-10 Tap 1 1/4 3.10 Aluminum Hand Knob *Part Number A B C D Hub Style F 21101 31 14 19 8 Blank – 21152 31 14 19 8 6mm Ream 13 21154 31 14 19 8 M6 Tap 13 21155 31 14 19 8 M8 Tap 13 21106 38 17 22 9 Blank – 21158 38 17 22 9 10mm Ream 16 21159 38 17 22 9 M8 Tap 16 21160 38 17 22 9 M10 Tap 16 21111 53 22 32 12 Blank – 21162 53 22 32 12 10mm Ream 22 21163 53 22 32 12 12mm Ream 22 21164 53 22 32 12 M10 Tap 22 21165 53 22 32 12 M12 Tap 22 21116 75 34 44 17 Blank – 21168 75 34 44 17 16mm Ream 32 21169 75 34 44 17 20mm Ream 32 21170 75 34 44 17 M12 Tap 32 21171 75 34 44 17 M16 Tap 32 21172 75 34 44 17 M20 Tap 32 *Dimensions in millimeters Aluminum Hand Knob Metric • Material: 319 Aluminum Alloy • Thread: 2B-UNC • Ream: +.002 -.000 • Available in FixtureProTM Design Software • Material: 319 Aluminum Alloy • Thread: Class 6h • Ream: +.05 -.000
