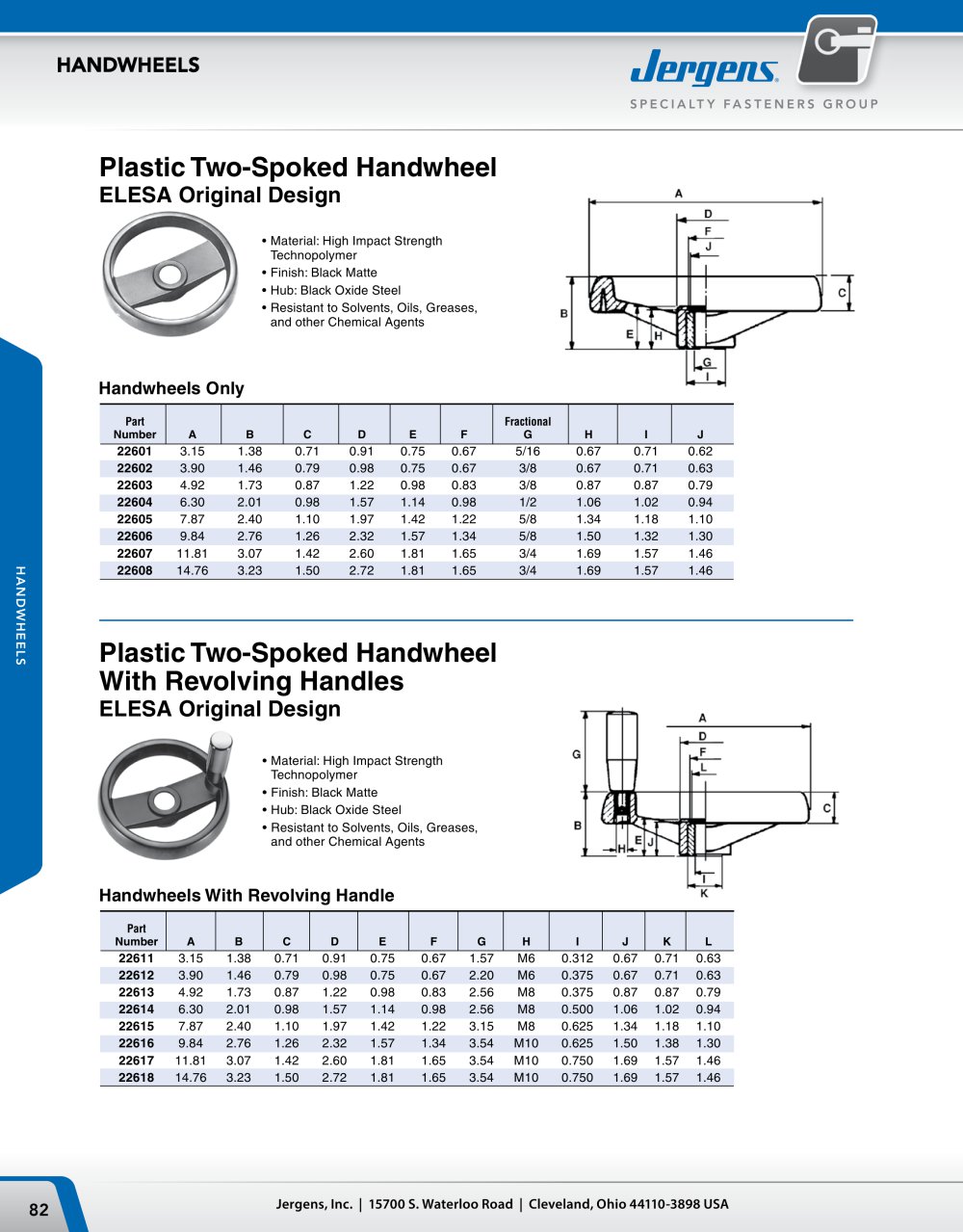

8 HANDWHEELS www.jergensinc.com 8.4 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Plastic Two Spoked Handwheel ELESA Original Design • Material: High Impact Strength Technopolymer • Finish: Black Matte • Hub: Black Oxide Steel • Resistant to Solvents, Oils, Greases, and other Chemical Agents • Material: High Impact Strength Technopolymer • Finish: Black Matte • Hub: Black Oxide Steel • Resistant to Solvents, Oils, Greases, and other Chemical Agents Plastic Two Spoked Handwheel With Revolving Handles ELESA Original Design Handwheels Only Part Fractional Number A B C D E F G H I J 22601 3.15 1.38 0.71 0.91 0.75 0.67 5/16 0.67 0.71 0.62 22602 3.90 1.46 0.79 0.98 0.75 0.67 3/8 0.67 0.71 0.63 22603 4.88 1.73 0.87 1.22 0.98 0.83 3/8 0.87 0.87 0.79 22604 6.30 2.01 0.98 1.57 1.14 0.98 1/2 1.06 1.02 0.94 22605 7.87 2.40 1.10 1.97 1.42 1.22 5/8 1.34 1.18 1.10 22606 8.84 2.76 1.26 2.32 1.57 1.34 5/8 1.50 1.32 1.30 22607 11.73 3.07 1.42 2.60 1.81 1.65 3/4 1.69 1.57 1.46 22608 14.67 3.23 1.50 2.72 1.81 1.65 3/4 1.69 1.57 1.46 Handwheels With Revolving Handle Part Number A B C D E F G H I J K L 22611 3.15 1.38 0.71 0.91 0.75 0.67 1.57 M6 0.312 0.67 0.71 0.63 22612 3.90 1.46 0.79 0.98 0.75 0.67 2.20 M6 0.375 0.67 0.71 0.63 22613 4.88 1.73 0.87 1.22 0.98 0.83 2.56 M8 0.375 0.87 0.87 0.79 22614 6.30 2.01 0.98 1.57 1.14 0.98 2.56 M8 0.500 1.06 1.02 0.94 22615 7.87 2.40 1.10 1.97 1.42 1.22 3.15 M8 0.625 1.34 1.18 1.10 22616 8.84 2.76 1.26 2.32 1.57 1.34 3.54 M10 0.625 1.50 1.38 1.30 22617 11.73 3.07 1.42 2.60 1.81 1.65 3.54 M10 0.750 1.69 1.57 1.46 22618 14.67 3.23 1.50 2.72 1.81 1.65 3.54 M10 0.750 1.69 1.57 1.46
