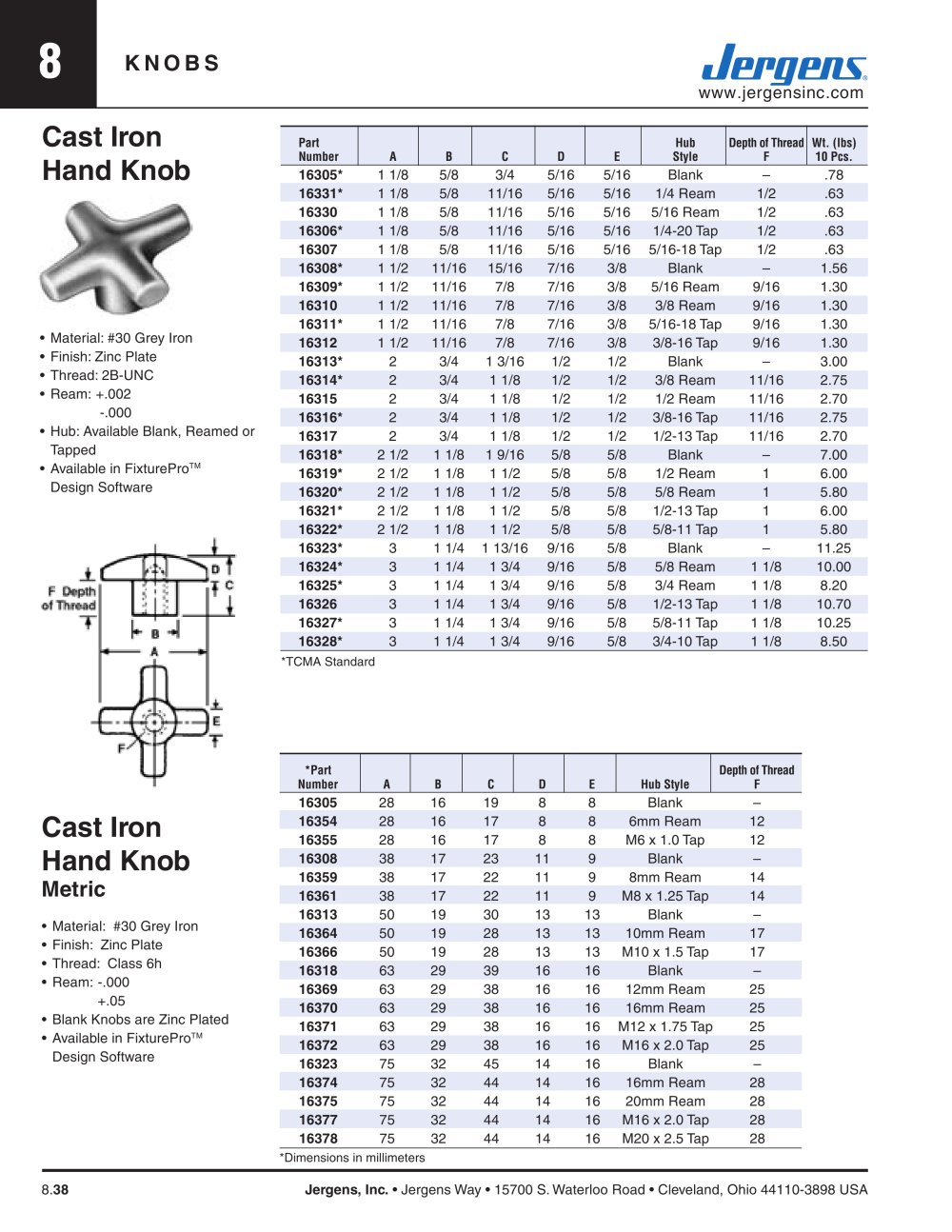

8 KNOBS www.jergensinc.com 8.38 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA • Material: #30 Grey Iron • Finish: Zinc Plate • Thread: 2B-UNC • Ream: +.002 -.000 • Hub: Available Blank, Reamed or Tapped • Available in FixtureProTM Design Software Cast Iron Hand Knob Metric • Material: #30 Grey Iron • Finish: Zinc Plate • Thread: Class 6h • Ream: -.000 +.05 • Blank Knobs are Zinc Plated • Available in FixtureProTM Design Software Cast Iron Hand Knob Part Hub Depth of Thread Wt. (lbs) Number A B C D E Style F 10 Pcs. 16305* 1 1/8 5/8 3/4 5/16 5/16 Blank – .78 16331* 1 1/8 5/8 11/16 5/16 5/16 1/4 Ream 1/2 .63 16330 1 1/8 5/8 11/16 5/16 5/16 5/16 Ream 1/2 .63 16306* 1 1/8 5/8 11/16 5/16 5/16 1/4-20 Tap 1/2 .63 16307 1 1/8 5/8 11/16 5/16 5/16 5/16-18 Tap 1/2 .63 16308* 1 1/2 11/16 15/16 7/16 3/8 Blank – 1.56 16309* 1 1/2 11/16 7/8 7/16 3/8 5/16 Ream 9/16 1.30 16310 1 1/2 11/16 7/8 7/16 3/8 3/8 Ream 9/16 1.30 16311* 1 1/2 11/16 7/8 7/16 3/8 5/16-18 Tap 9/16 1.30 16312 1 1/2 11/16 7/8 7/16 3/8 3/8-16 Tap 9/16 1.30 16313* 2 3/4 1 3/16 1/2 1/2 Blank – 3.00 16314* 2 3/4 1 1/8 1/2 1/2 3/8 Ream 11/16 2.75 16315 2 3/4 1 1/8 1/2 1/2 1/2 Ream 11/16 2.70 16316* 2 3/4 1 1/8 1/2 1/2 3/8-16 Tap 11/16 2.75 16317 2 3/4 1 1/8 1/2 1/2 1/2-13 Tap 11/16 2.70 16318* 2 1/2 1 1/8 1 9/16 5/8 5/8 Blank – 7.00 16319* 2 1/2 1 1/8 1 1/2 5/8 5/8 1/2 Ream 1 6.00 16320* 2 1/2 1 1/8 1 1/2 5/8 5/8 5/8 Ream 1 5.80 16321* 2 1/2 1 1/8 1 1/2 5/8 5/8 1/2-13 Tap 1 6.00 16322* 2 1/2 1 1/8 1 1/2 5/8 5/8 5/8-11 Tap 1 5.80 16323* 3 1 1/4 1 13/16 9/16 5/8 Blank – 11.25 16324* 3 1 1/4 1 3/4 9/16 5/8 5/8 Ream 1 1/8 10.00 16325* 3 1 1/4 1 3/4 9/16 5/8 3/4 Ream 1 1/8 8.20 16326 3 1 1/4 1 3/4 9/16 5/8 1/2-13 Tap 1 1/8 10.70 16327* 3 1 1/4 1 3/4 9/16 5/8 5/8-11 Tap 1 1/8 10.25 16328* 3 1 1/4 1 3/4 9/16 5/8 3/4-10 Tap 1 1/8 8.50 *TCMA Standard *Part Depth of Thread Number A B C D E Hub Style F 16305 28 16 19 8 8 Blank – 16354 28 16 17 8 8 6mm Ream 12 16355 28 16 17 8 8 M6 x 1.0 Tap 12 16308 38 17 23 11 9 Blank – 16359 38 17 22 11 9 8mm Ream 14 16361 38 17 22 11 9 M8 x 1.25 Tap 14 16313 50 19 30 13 13 Blank – 16364 50 19 28 13 13 10mm Ream 17 16366 50 19 28 13 13 M10 x 1.5 Tap 17 16318 63 29 39 16 16 Blank – 16369 63 29 38 16 16 12mm Ream 25 16370 63 29 38 16 16 16mm Ream 25 16371 63 29 38 16 16 M12 x 1.75 Tap 25 16372 63 29 38 16 16 M16 x 2.0 Tap 25 16323 75 32 45 14 16 Blank – 16374 75 32 44 14 16 16mm Ream 28 16375 75 32 44 14 16 20mm Ream 28 16377 75 32 44 14 16 M16 x 2.0 Tap 28 16378 75 32 44 14 16 M20 x 2.5 Tap 28 *Dimensions in millimeters
