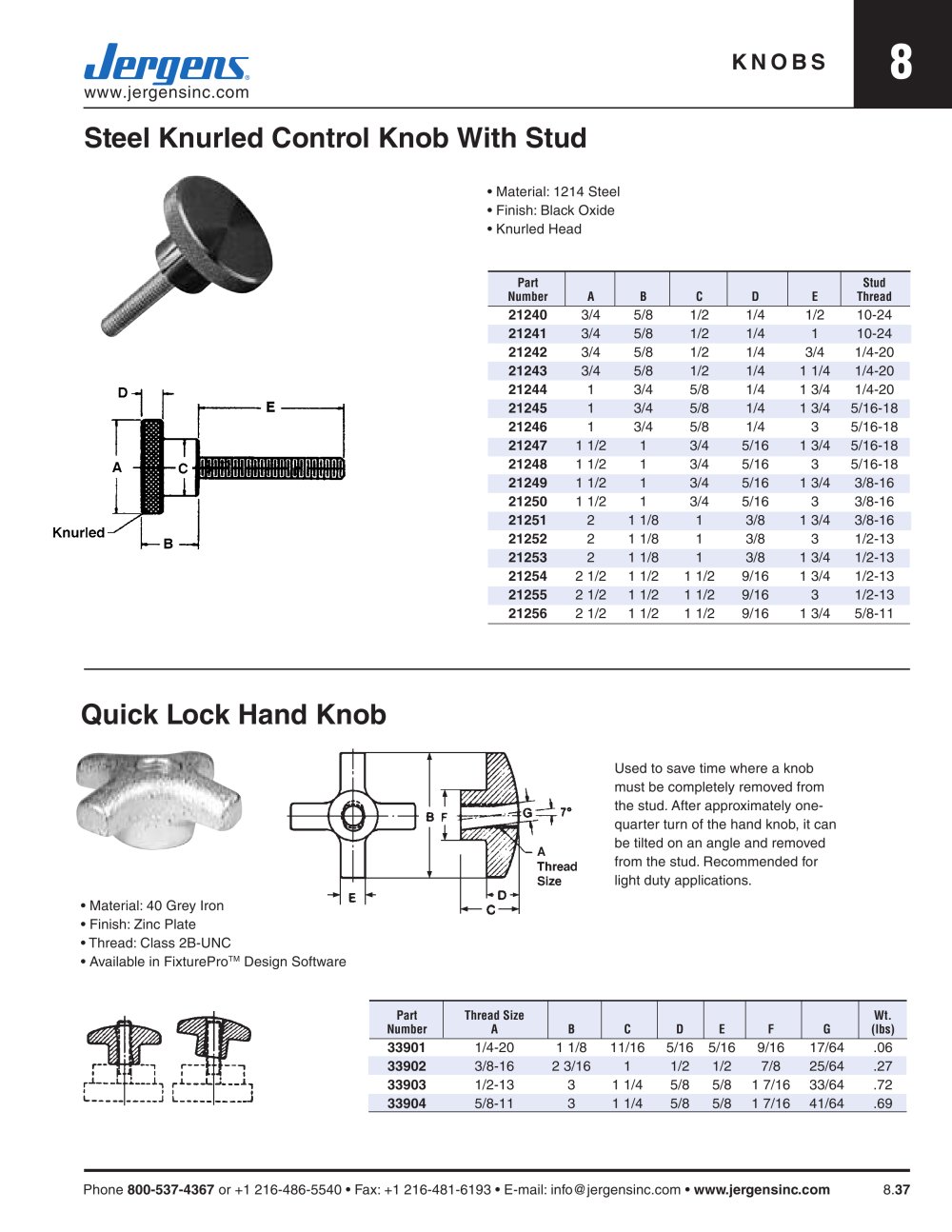

KNOBS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.37 Steel Knurled Control Knob With Stud • Material: 1214 Steel • Finish: Black Oxide • Knurled Head Quick Lock Hand Knob Used to save time where a knob must be completely removed from the stud. After approximately onequarter turn of the hand knob, it can be tilted on an angle and removed from the stud. Recommended for light duty applications. • Material: 40 Grey Iron • Finish: Zinc Plate • Thread: Class 2B-UNC • Available in FixtureProTM Design Software Part Thread Size Wt. Number A B C D E F G (lbs) 33901 1/4-20 1 1/8 11/16 5/16 5/16 9/16 17/64 .06 33902 3/8-16 2 3/16 1 1/2 1/2 7/8 25/64 .27 33903 1/2-13 3 1 1/4 5/8 5/8 1 7/16 33/64 .72 33904 5/8-11 3 1 1/4 5/8 5/8 1 7/16 41/64 .69 Part Stud Number A B C D E Thread 21240 3/4 5/8 1/2 1/4 1/2 10-24 21241 3/4 5/8 1/2 1/4 1 10-24 21242 3/4 5/8 1/2 1/4 3/4 1/4-20 21243 3/4 5/8 1/2 1/4 1 1/4 1/4-20 21244 1 3/4 5/8 1/4 1 3/4 1/4-20 21245 1 3/4 5/8 1/4 1 3/4 5/16-18 21246 1 3/4 5/8 1/4 3 5/16-18 21247 1 1/2 1 3/4 5/16 1 3/4 5/16-18 21248 1 1/2 1 3/4 5/16 3 5/16-18 21249 1 1/2 1 3/4 5/16 1 3/4 3/8-16 21250 1 1/2 1 3/4 5/16 3 3/8-16 21251 2 1 1/8 1 3/8 1 3/4 3/8-16 21252 2 1 1/8 1 3/8 3 1/2-13 21253 2 1 1/8 1 3/8 1 3/4 1/2-13 21254 2 1/2 1 1/2 1 1/2 9/16 1 3/4 1/2-13 21255 2 1/2 1 1/2 1 1/2 9/16 3 1/2-13 21256 2 1/2 1 1/2 1 1/2 9/16 1 3/4 5/8-11
