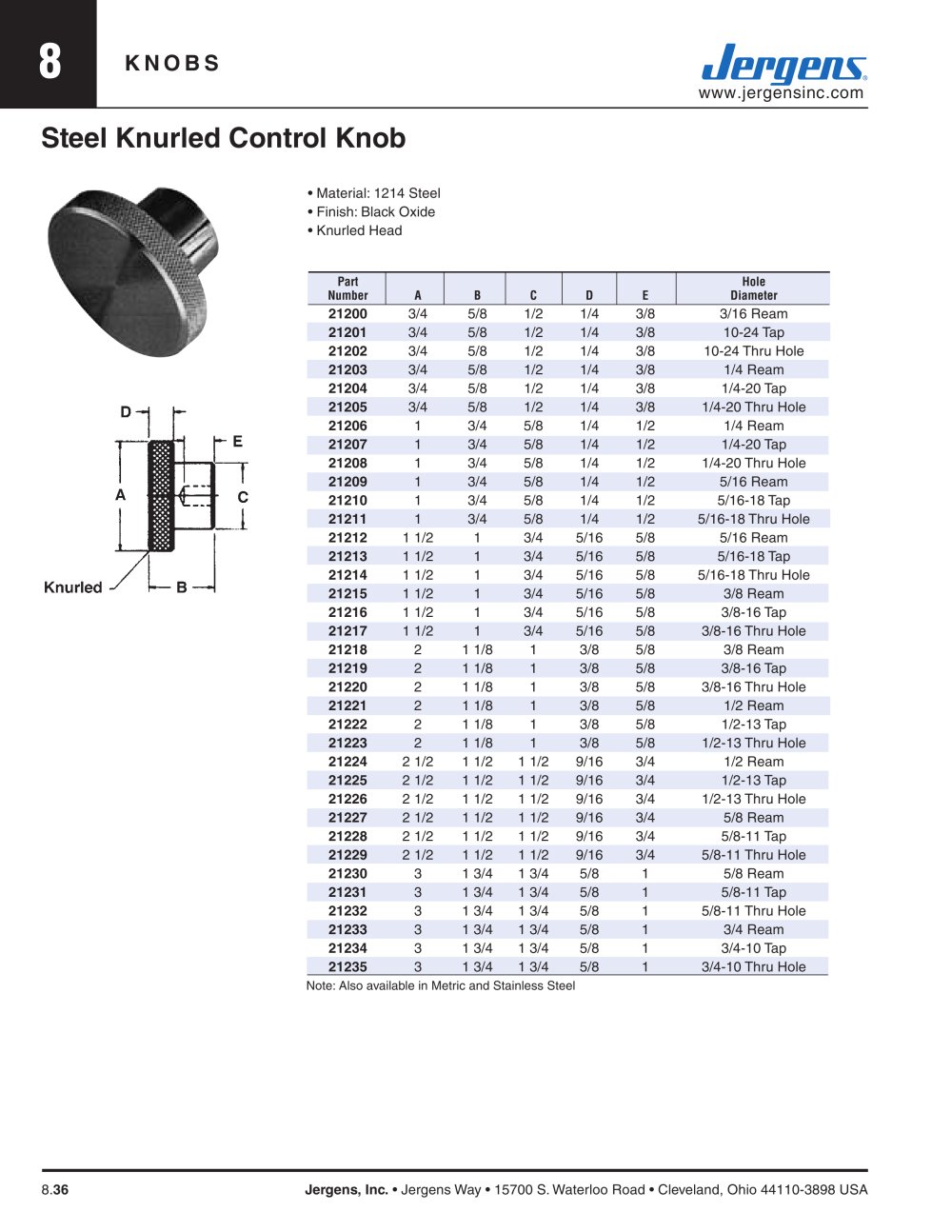

8 KNOBS www.jergensinc.com 8.36 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Steel Knurled Control Knob • Material: 1214 Steel • Finish: Black Oxide • Knurled Head Note: Also available in Metric and Stainless Steel Part Hole Number A B C D E Diameter 21200 3/4 5/8 1/2 1/4 3/8 3/16 Ream 21201 3/4 5/8 1/2 1/4 3/8 10-24 Tap 21202 3/4 5/8 1/2 1/4 3/8 10-24 Thru Hole 21203 3/4 5/8 1/2 1/4 3/8 1/4 Ream 21204 3/4 5/8 1/2 1/4 3/8 1/4-20 Tap 21205 3/4 5/8 1/2 1/4 3/8 1/4-20 Thru Hole 21206 1 3/4 5/8 1/4 1/2 1/4 Ream 21207 1 3/4 5/8 1/4 1/2 1/4-20 Tap 21208 1 3/4 5/8 1/4 1/2 1/4-20 Thru Hole 21209 1 3/4 5/8 1/4 1/2 5/16 Ream 21210 1 3/4 5/8 1/4 1/2 5/16-18 Tap 21211 1 3/4 5/8 1/4 1/2 5/16-18 Thru Hole 21212 1 1/2 1 3/4 5/16 5/8 5/16 Ream 21213 1 1/2 1 3/4 5/16 5/8 5/16-18 Tap 21214 1 1/2 1 3/4 5/16 5/8 5/16-18 Thru Hole 21215 1 1/2 1 3/4 5/16 5/8 3/8 Ream 21216 1 1/2 1 3/4 5/16 5/8 3/8-16 Tap 21217 1 1/2 1 3/4 5/16 5/8 3/8-16 Thru Hole 21218 2 1 1/8 1 3/8 5/8 3/8 Ream 21219 2 1 1/8 1 3/8 5/8 3/8-16 Tap 21220 2 1 1/8 1 3/8 5/8 3/8-16 Thru Hole 21221 2 1 1/8 1 3/8 5/8 1/2 Ream 21222 2 1 1/8 1 3/8 5/8 1/2-13 Tap 21223 2 1 1/8 1 3/8 5/8 1/2-13 Thru Hole 21224 2 1/2 1 1/2 1 1/2 9/16 3/4 1/2 Ream 21225 2 1/2 1 1/2 1 1/2 9/16 3/4 1/2-13 Tap 21226 2 1/2 1 1/2 1 1/2 9/16 3/4 1/2-13 Thru Hole 21227 2 1/2 1 1/2 1 1/2 9/16 3/4 5/8 Ream 21228 2 1/2 1 1/2 1 1/2 9/16 3/4 5/8-11 Tap 21229 2 1/2 1 1/2 1 1/2 9/16 3/4 5/8-11 Thru Hole 21230 3 1 3/4 1 3/4 5/8 1 5/8 Ream 21231 3 1 3/4 1 3/4 5/8 1 5/8-11 Tap 21232 3 1 3/4 1 3/4 5/8 1 5/8-11 Thru Hole 21233 3 1 3/4 1 3/4 5/8 1 3/4 Ream 21234 3 1 3/4 1 3/4 5/8 1 3/4-10 Tap 21235 3 1 3/4 1 3/4 5/8 1 3/4-10 Thru Hole
