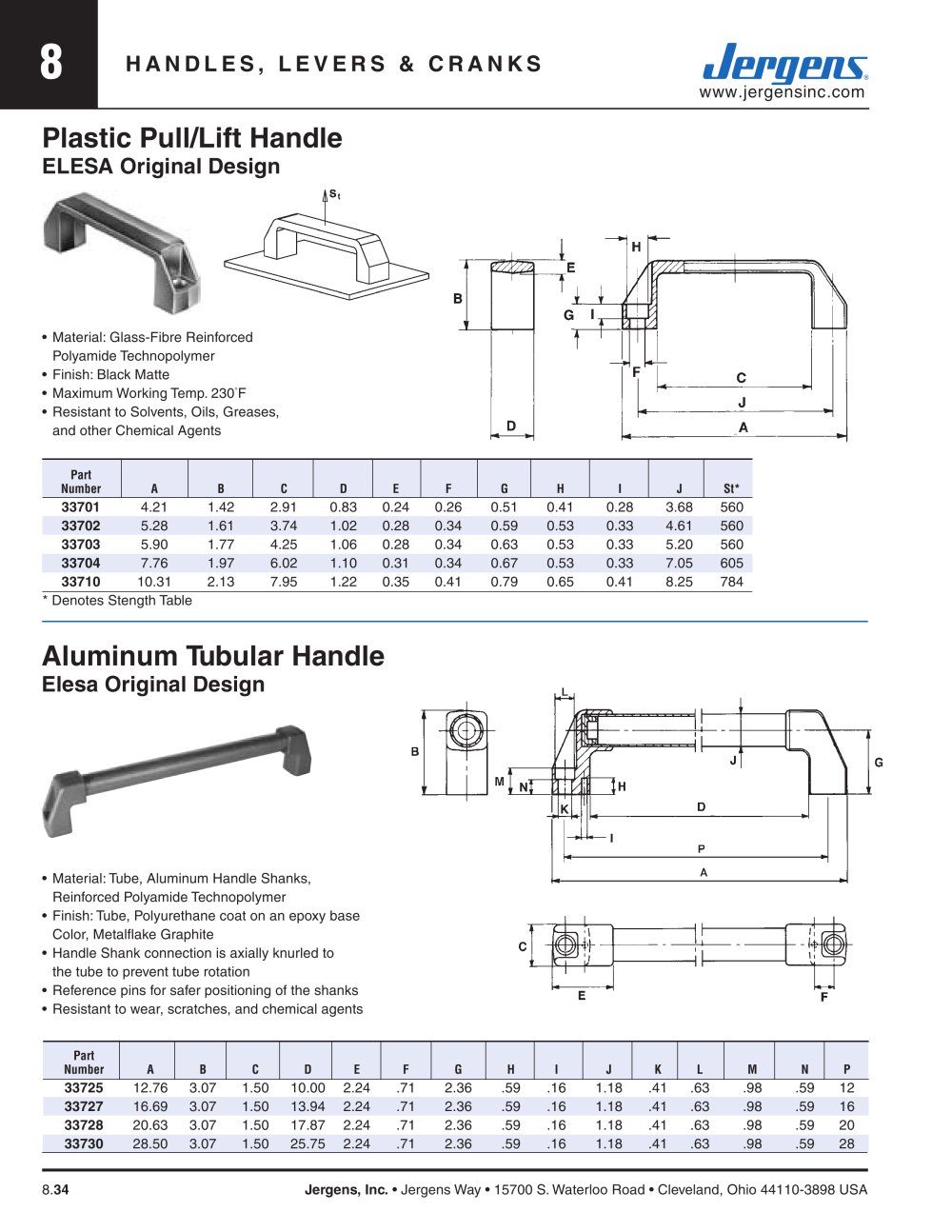

8 HANDLES, LEVERS & CRANKS www.jergensinc.com 8.34 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Plastic Pull/Lift Handle ELESA Original Design • Material: Glass-Fibre Reinforced Polyamide Technopolymer • Finish: Black Matte • Maximum Working Temp. 230°F • Resistant to Solvents, Oils, Greases, and other Chemical Agents Aluminum Tubular Handle Elesa Original Design • Material: Tube, Aluminum Handle Shanks, Reinforced Polyamide Technopolymer • Finish: Tube, Polyurethane coat on an epoxy base Color, Metalflake Graphite • Handle Shank connection is axially knurled to the tube to prevent tube rotation • Reference pins for safer positioning of the shanks • Resistant to wear, scratches, and chemical agents Part Number A B C D E F G H I J K L M N P 33725 12.76 3.07 1.50 10.00 2.24 .71 2.36 .59 .16 1.18 .41 .63 .98 .59 12 33727 16.69 3.07 1.50 13.94 2.24 .71 2.36 .59 .16 1.18 .41 .63 .98 .59 16 33728 20.63 3.07 1.50 17.87 2.24 .71 2.36 .59 .16 1.18 .41 .63 .98 .59 20 33730 28.50 3.07 1.50 25.75 2.24 .71 2.36 .59 .16 1.18 .41 .63 .98 .59 28 Part Number A B C D E F G H I J St* 33701 4.21 1.42 2.91 0.83 0.24 0.26 0.51 0.41 0.28 3.68 560 33702 5.28 1.61 3.74 1.02 0.28 0.34 0.59 0.53 0.33 4.61 560 33703 5.90 1.77 4.25 1.06 0.28 0.34 0.63 0.53 0.33 5.20 560 33704 7.76 1.97 6.02 1.10 0.31 0.34 0.67 0.53 0.33 7.05 605 33710 10.31 2.13 7.95 1.22 0.35 0.41 0.79 0.65 0.41 8.25 784 * Denotes Stength Table
