8 HANDLES, LEVERS & CRANKS
www.jergensinc.com
8.32 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA

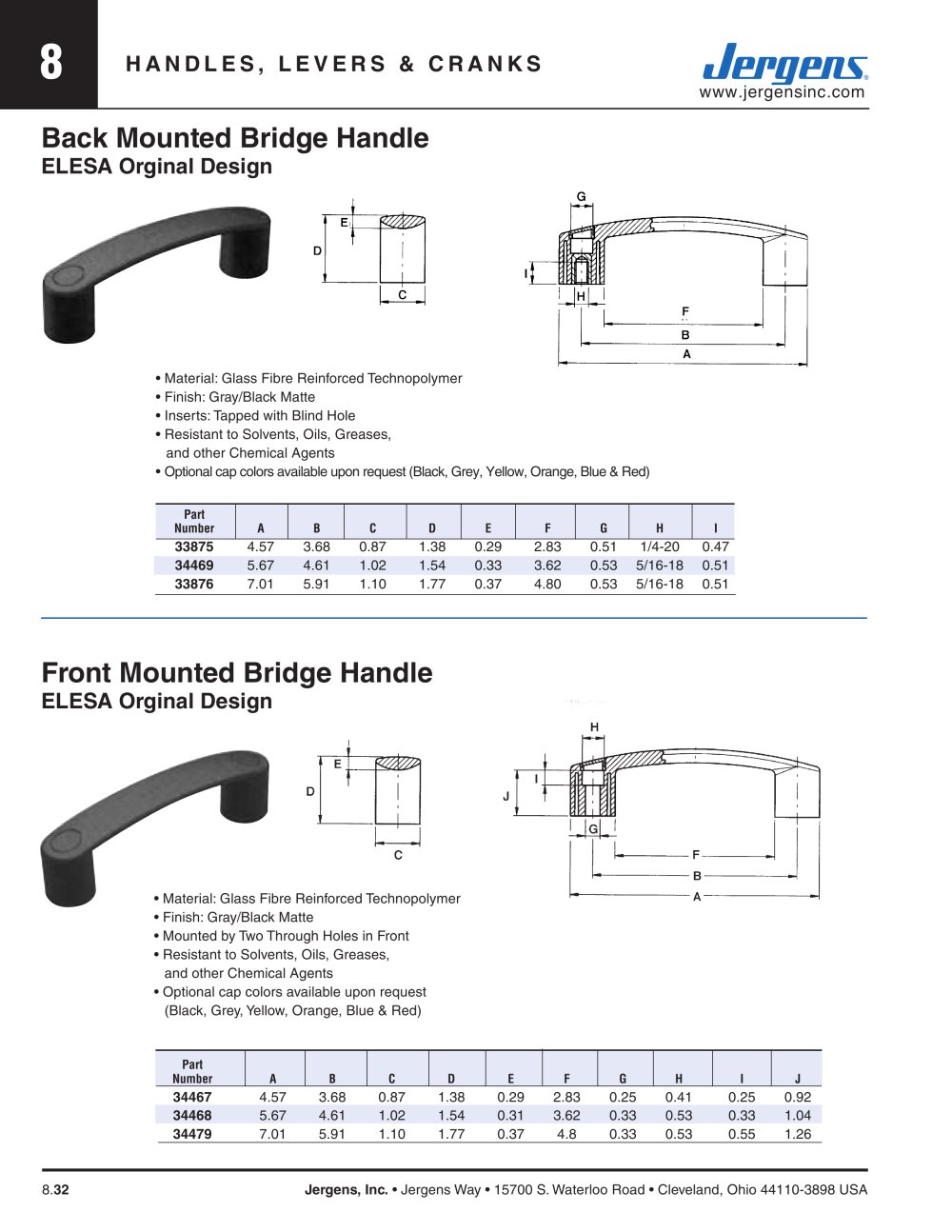

Back Mounted Bridge Handle
Elesa Orginal Design
Part
Number A B C D E F G H I J
34467 4.57 3.68 0.87 1.38 0.29 2.83 0.25 0.41 0.25 0.92
34468 5.67 4.61 1.02 1.54 0.31 3.62 0.33 0.53 0.33 1.04
34479 7.01 5.91 1.10 1.77 0.37 4.8 0.33 0.53 0.55 1.26
Front Mounted Bridge Handle
Elesa Orginal Design
• Material: Glass Fibre Reinforced Technopolymer
• Finish: Gray/Black Matte
• Inserts: Tapped with Blind Hole
• Resistant to Solvents, Oils, Greases,
and other Chemical Agents
• Optional cap colors available upon request (Black, Grey, Yellow, Orange, Blue & Red)
• Material: Glass Fibre Reinforced Technopolymer
• Finish: Gray/Black Matte
• Mounted by Two Through Holes in Front
• Resistant to Solvents, Oils, Greases,
and other Chemical Agents
• Optional cap colors available upon request
(Black, Grey, Yellow, Orange, Blue & Red)
Part
Number A B C D E F G H I
33875 4.57 3.68 0.87 1.38 0.29 2.83 0.51 1/4-20 0.47
34469 5.67 4.61 1.02 1.54 0.33 3.62 0.53 5/16-18 0.51
33876 7.01 5.91 1.10 1.77 0.37 4.80 0.53 5/16-18 0.51
