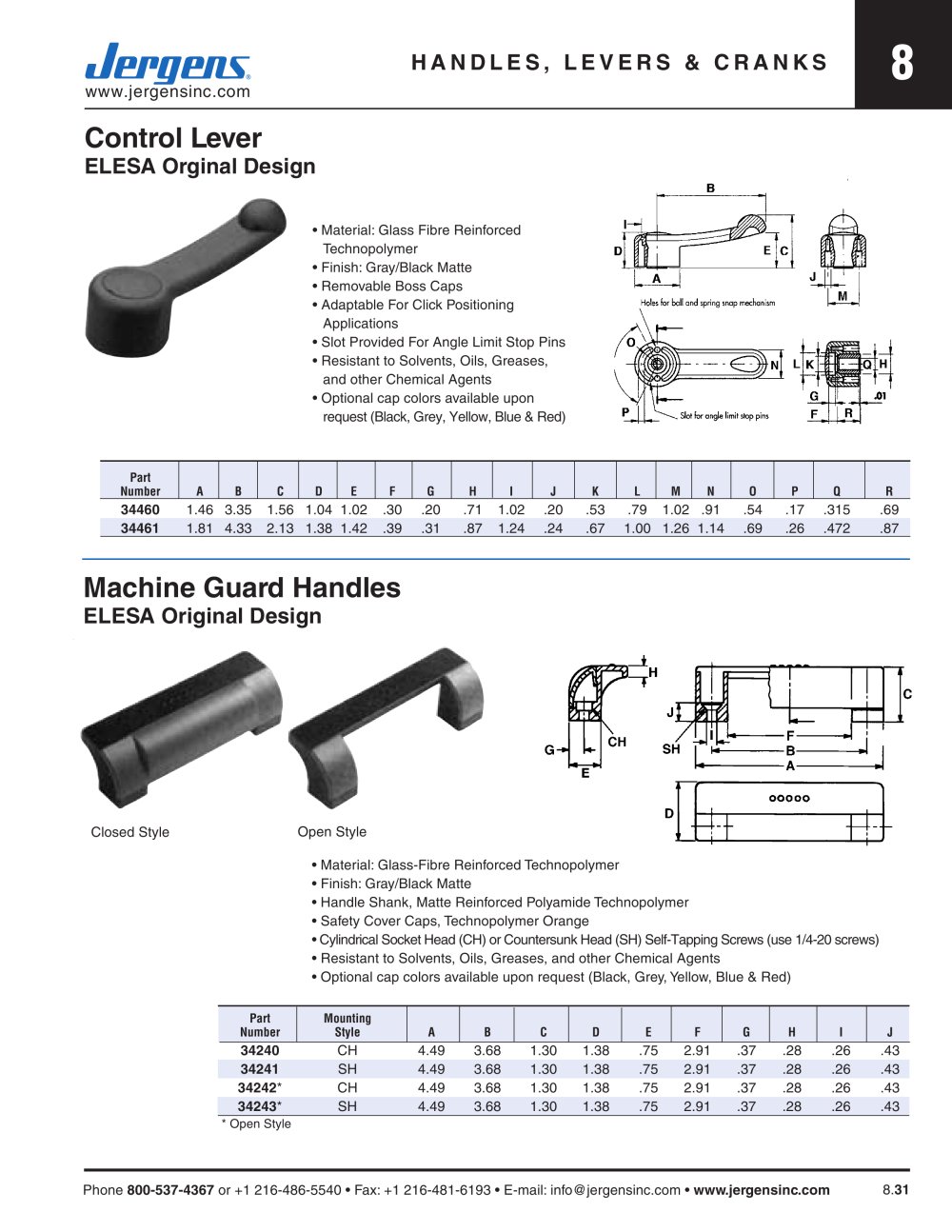

HANDLES, LEVERS & CRANKS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.31 Machine Guard Handles ELESA Original Design Closed Style Open Style Part Mounting Number Style A B C D E F G H I J 34240 CH 4.49 3.68 1.30 1.38 .75 2.91 .37 .28 .26 .43 34241 SH 4.49 3.68 1.30 1.38 .75 2.91 .37 .28 .26 .43 34242* CH 4.49 3.68 1.30 1.38 .75 2.91 .37 .28 .26 .43 34243* SH 4.49 3.68 1.30 1.38 .75 2.91 .37 .28 .26 .43 * Open Style Control Lever Elesa Orginal Design • Material: Glass Fibre Reinforced Technopolymer • Finish: Gray/Black Matte • Removable Boss Caps • Adaptable For Click Positioning Applications • Slot Provided For Angle Limit Stop Pins • Resistant to Solvents, Oils, Greases, and other Chemical Agents • Optional cap colors available upon request (Black, Grey, Yellow, Blue & Red) Part Number A B C D E F G H I J K L M N O P Q R 34460 1.46 3.35 1.56 1.04 1.02 .30 .20 .71 1.02 .20 .53 .79 1.02 .91 .54 .17 .315 .69 34461 1.81 4.33 2.13 1.38 1.42 .39 .31 .87 1.24 .24 .67 1.00 1.26 1.14 .69 .26 .472 .87 • Material: Glass-Fibre Reinforced Technopolymer • Finish: Gray/Black Matte • Handle Shank, Matte Reinforced Polyamide Technopolymer • Safety Cover Caps, Technopolymer Orange • Cylindrical Socket Head (CH) or Countersunk Head (SH) Self-Tapping Screws (use 1/4-20 screws) • Resistant to Solvents, Oils, Greases, and other Chemical Agents • Optional cap colors available upon request (Black, Grey, Yellow, Blue & Red)
