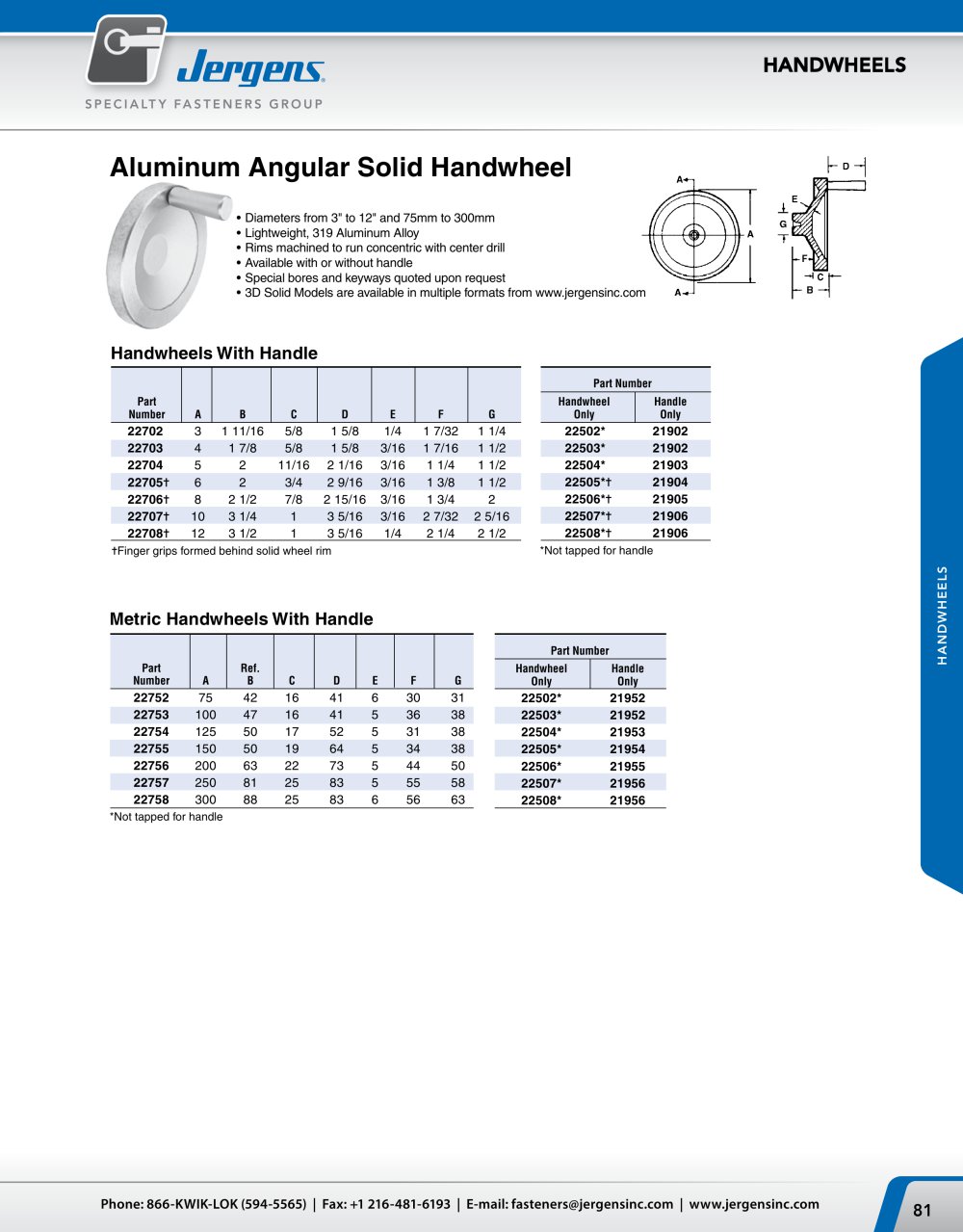

HANDWHEELS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.3 Part Number A B C D E F G 22702 3 1 11/16 5/8 1 5/8 1/4 1 7/32 1 1/4 22703 4 1 7/8 5/8 1 5/8 3/16 1 7/16 1 1/2 22704 5 2 11/16 2 1/16 3/16 1 1/4 1 1/2 22705. 6 2 3/4 2 9/16 3/16 1 3/8 1 1/2 22706. 8 2 1/2 7/8 2 15/16 3/16 1 3/4 2 22707. 10 3 1/4 1 3 5/16 3/16 2 7/32 2 5/16 22708. 12 3 1/2 1 3 5/16 1/4 2 1/4 2 1/2 .Finger grips formed behind solid wheel rim Part Number Handwheel Handle Only Only 22502* 21902 22503* 21902 22504* 21903 22505*. 21904 22506*. 21905 22507*. 21906 22508*. 21906 Part Ref. Number A B C D E F G 22752 75 42 16 41 6 30 31 22753 100 47 16 41 5 36 38 22754 125 50 17 52 5 31 38 22755 150 50 19 64 5 34 38 22756 200 63 22 73 5 44 50 22757 250 81 25 83 5 55 58 22758 300 88 25 83 6 56 63 Metric Handwheels With Handle • Diameters from 3" to 12" and 75mm to 300mm • Lightweight, 319 Aluminum Alloy • Rims machined to run concentric with center drill • Available with or without handle • Special bores and keyways quoted upon request • Available in FixtureProTM Design Software Aluminum Angular Solid Handwheel *Not tapped for handle Handwheels With Handle Part Number Handwheel Handle Only Only 22502* 21952 22503* 21952 22504* 21953 22505* 21954 22506* 21955 22507* 21956 22508* 21956 Cast Iron Angular Spoked Handwheel Metric Metric Polished Handwheels With Handle • Fine Grain Cast Iron • Rims machined to run concentric with center hole • All cast iron wheels have two spokes and finger grips • Available with or without handle • Available with Black Epoxy finish and a plain finished handle with polished rim upon request • Other colors of Epoxy Finish available upon request *Not tapped for handle Part Number Part Handwheel Handle Number A B C D E F G H Only Only 22451 100 38 16 41 6 25 30 10 22251* 21952 22452 150 50 19 64 9 36 39 12 22252* 21954 22453 200 57 22 73 11 38 45 16 22253* 21955 22454 250 75 25 83 13 57 57 16 22254* 21956 *Not tapped for handle
