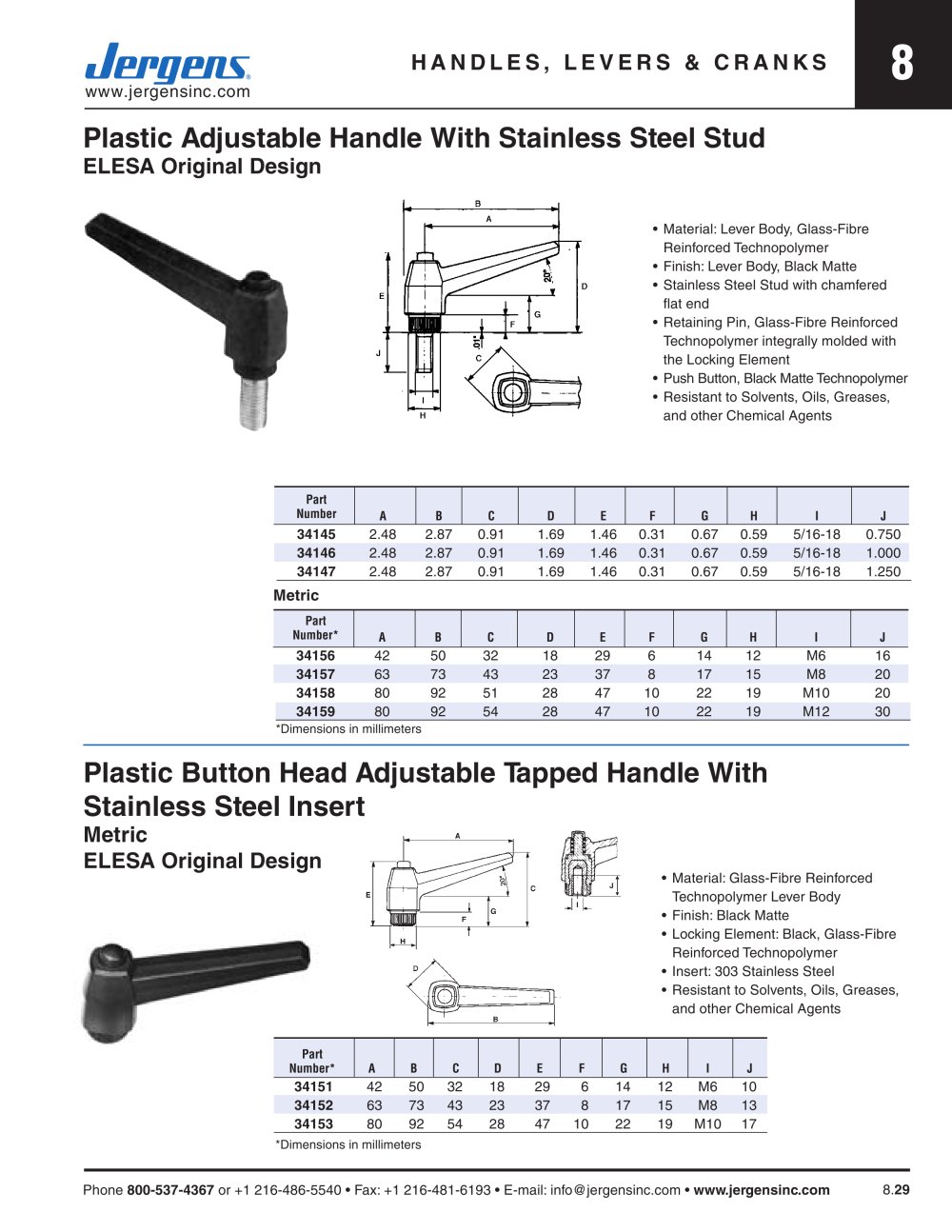

HANDLES, LEVERS & CRANKS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.29 Part Number A B C D E F G H I J 34145 2.48 2.87 0.91 1.69 1.46 0.31 0.67 0.59 5/16-18 0.750 34146 2.48 2.87 0.91 1.69 1.46 0.31 0.67 0.59 5/16-18 1.000 34147 2.48 2.87 0.91 1.69 1.46 0.31 0.67 0.59 5/16-18 1.250 Plastic Adjustable Handle With Stainless Steel Stud ELESA Original Design • Material: Lever Body, Glass-Fibre Reinforced Technopolymer • Finish: Lever Body, Black Matte • Stainless Steel Stud with chamfered flat end • Retaining Pin, Glass-Fibre Reinforced Technopolymer integrally molded with the Locking Element • Push Button, Black Matte Technopolymer • Resistant to Solvents, Oils, Greases, and other Chemical Agents Plastic Button Head Adjustable Tapped Handle With Stainless Steel Insert Metric ELESA Original Design Part Number* A B C D E F G H I J 34151 42 50 32 18 29 6 14 12 M6 10 34152 63 73 43 23 37 8 17 15 M8 13 34153 80 92 54 28 47 10 22 19 M10 17 *Dimensions in millimeters Part Number* A B C D E F G H I J 34156 42 50 32 18 29 6 14 12 M6 16 34157 63 73 43 23 37 8 17 15 M8 20 34158 80 92 51 28 47 10 22 19 M10 20 34159 80 92 54 28 47 10 22 19 M12 30 Metric • Material: Glass-Fibre Reinforced Technopolymer Lever Body • Finish: Black Matte • Locking Element: Black, Glass-Fibre Reinforced Technopolymer • Insert: 303 Stainless Steel • Resistant to Solvents, Oils, Greases, and other Chemical Agents *Dimensions in millimeters
