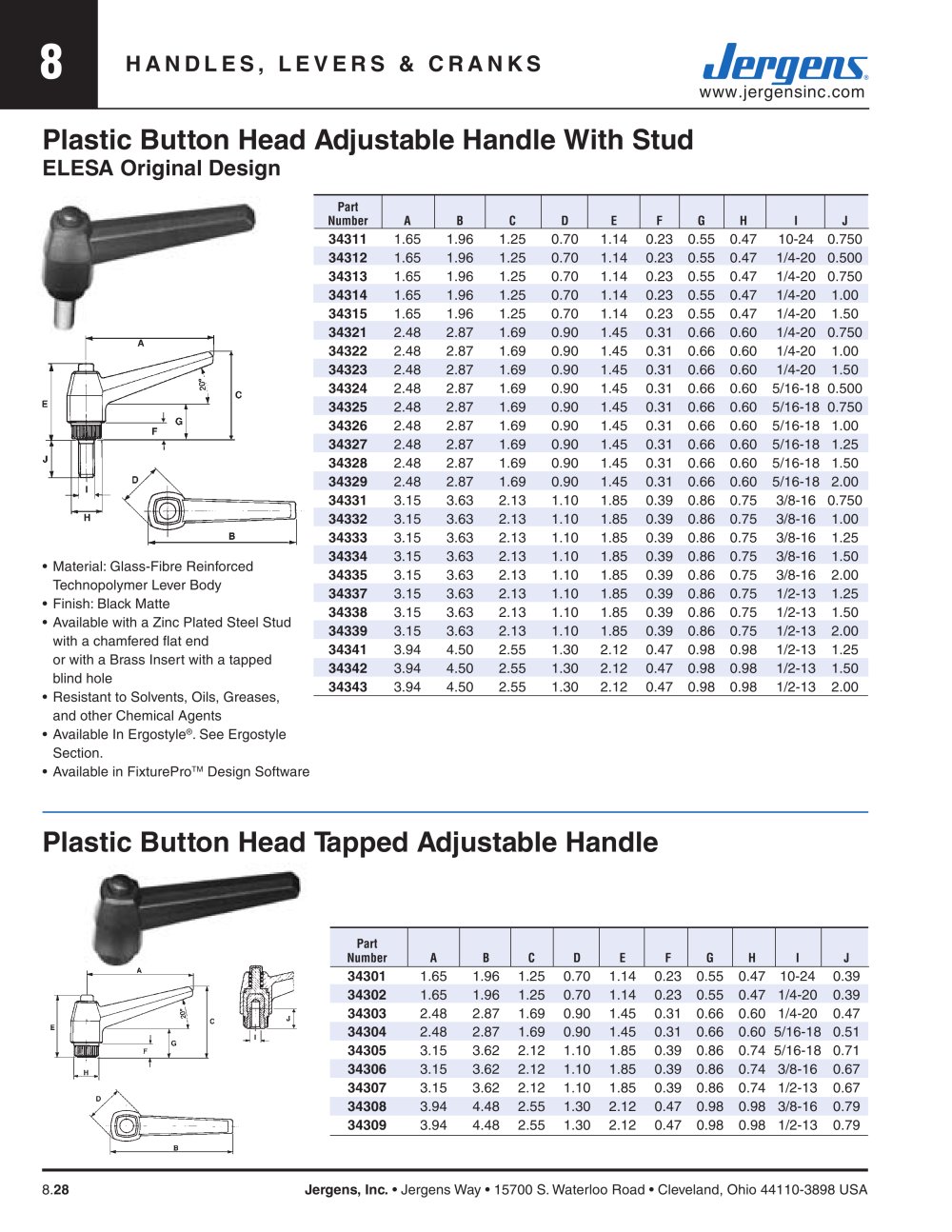

8 HANDLES, LEVERS & CRANKS www.jergensinc.com 8.28 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Plastic Button Head Adjustable Handle With Stud ELESA Original Design Part Number A B C D E F G H I J 34311 1.65 1.96 1.25 0.70 1.14 0.23 0.55 0.47 10-24 0.750 34312 1.65 1.96 1.25 0.70 1.14 0.23 0.55 0.47 1/4-20 0.500 34313 1.65 1.96 1.25 0.70 1.14 0.23 0.55 0.47 1/4-20 0.750 34314 1.65 1.96 1.25 0.70 1.14 0.23 0.55 0.47 1/4-20 1.00 34315 1.65 1.96 1.25 0.70 1.14 0.23 0.55 0.47 1/4-20 1.50 34321 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 1/4-20 0.750 34322 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 1/4-20 1.00 34323 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 1/4-20 1.50 34324 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 5/16-18 0.500 34325 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 5/16-18 0.750 34326 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 5/16-18 1.00 34327 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 5/16-18 1.25 34328 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 5/16-18 1.50 34329 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 5/16-18 2.00 34331 3.15 3.63 2.13 1.10 1.85 0.39 0.86 0.75 3/8-16 0.750 34332 3.15 3.63 2.13 1.10 1.85 0.39 0.86 0.75 3/8-16 1.00 34333 3.15 3.63 2.13 1.10 1.85 0.39 0.86 0.75 3/8-16 1.25 34334 3.15 3.63 2.13 1.10 1.85 0.39 0.86 0.75 3/8-16 1.50 34335 3.15 3.63 2.13 1.10 1.85 0.39 0.86 0.75 3/8-16 2.00 34337 3.15 3.63 2.13 1.10 1.85 0.39 0.86 0.75 1/2-13 1.25 34338 3.15 3.63 2.13 1.10 1.85 0.39 0.86 0.75 1/2-13 1.50 34339 3.15 3.63 2.13 1.10 1.85 0.39 0.86 0.75 1/2-13 2.00 34341 3.94 4.50 2.55 1.30 2.12 0.47 0.98 0.98 1/2-13 1.25 34342 3.94 4.50 2.55 1.30 2.12 0.47 0.98 0.98 1/2-13 1.50 34343 3.94 4.50 2.55 1.30 2.12 0.47 0.98 0.98 1/2-13 2.00 Plastic Button Head Tapped Adjustable Handle Part Number A B C D E F G H I J 34301 1.65 1.96 1.25 0.70 1.14 0.23 0.55 0.47 10-24 0.39 34302 1.65 1.96 1.25 0.70 1.14 0.23 0.55 0.47 1/4-20 0.39 34303 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 1/4-20 0.47 34304 2.48 2.87 1.69 0.90 1.45 0.31 0.66 0.60 5/16-18 0.51 34305 3.15 3.62 2.12 1.10 1.85 0.39 0.86 0.74 5/16-18 0.71 34306 3.15 3.62 2.12 1.10 1.85 0.39 0.86 0.74 3/8-16 0.67 34307 3.15 3.62 2.12 1.10 1.85 0.39 0.86 0.74 1/2-13 0.67 34308 3.94 4.48 2.55 1.30 2.12 0.47 0.98 0.98 3/8-16 0.79 34309 3.94 4.48 2.55 1.30 2.12 0.47 0.98 0.98 1/2-13 0.79 • Material: Glass-Fibre Reinforced Technopolymer Lever Body • Finish: Black Matte • Available with a Zinc Plated Steel Stud with a chamfered flat end or with a Brass Insert with a tapped blind hole • Resistant to Solvents, Oils, Greases, and other Chemical Agents • Available In Ergostyle®. See Ergostyle Section. • Available in FixtureProTM Design Software
