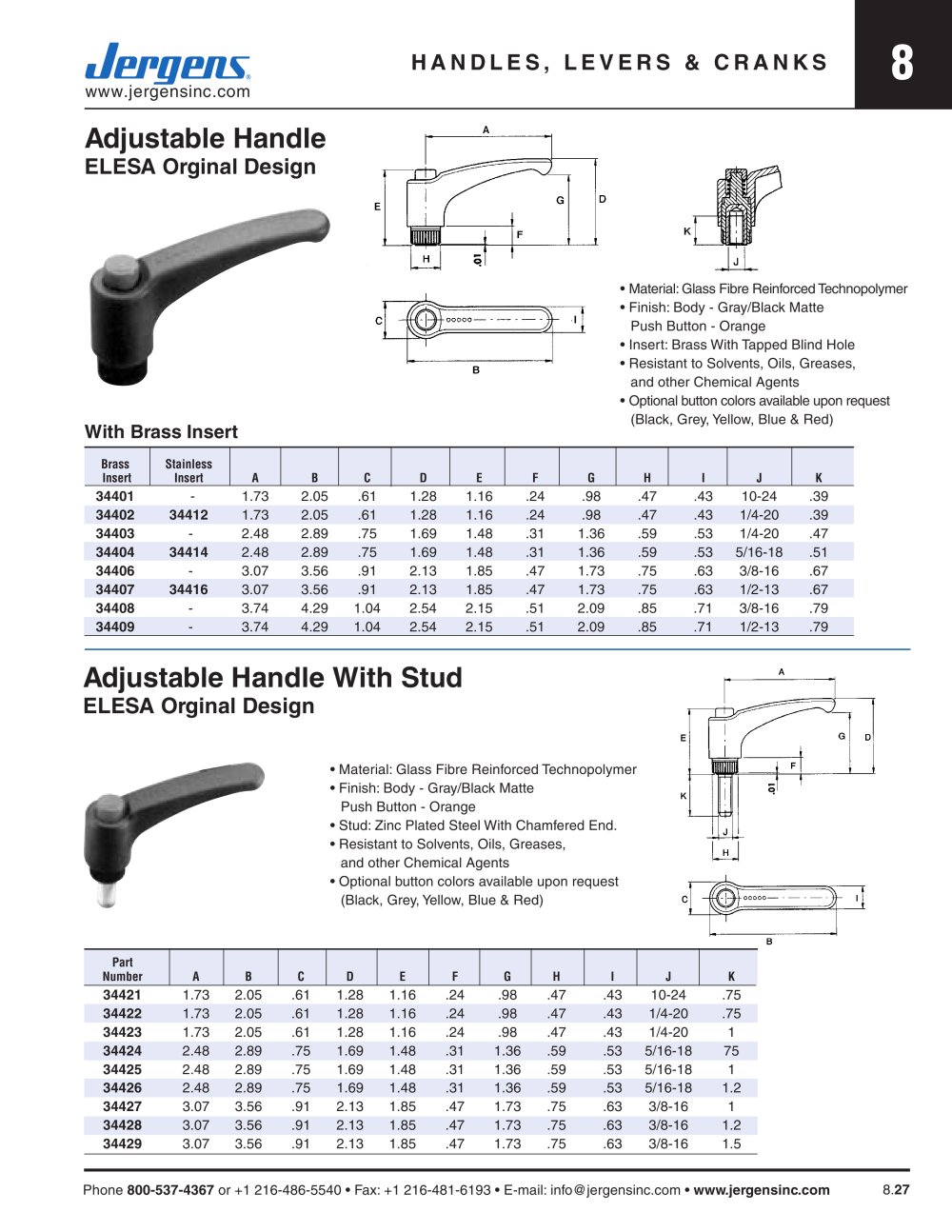

HANDLES, LEVERS & CRANKS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.27 Part Number A B C D E F G H I J K 34421 1.73 2.05 .61 1.28 1.16 .24 .98 .47 .43 10-24 .75 34422 1.73 2.05 .61 1.28 1.16 .24 .98 .47 .43 1/4-20 .75 34423 1.73 2.05 .61 1.28 1.16 .24 .98 .47 .43 1/4-20 1 34424 2.48 2.89 .75 1.69 1.48 .31 1.36 .59 .53 5/16-18 75 34425 2.48 2.89 .75 1.69 1.48 .31 1.36 .59 .53 5/16-18 1 34426 2.48 2.89 .75 1.69 1.48 .31 1.36 .59 .53 5/16-18 1.2 34427 3.07 3.56 .91 2.13 1.85 .47 1.73 .75 .63 3/8-16 1 34428 3.07 3.56 .91 2.13 1.85 .47 1.73 .75 .63 3/8-16 1.2 34429 3.07 3.56 .91 2.13 1.85 .47 1.73 .75 .63 3/8-16 1.5 Adjustable Handle With Stud Elesa Orginal Design • Material: Glass Fibre Reinforced Technopolymer • Finish: Body - Gray/Black Matte Push Button - Orange • Stud: Zinc Plated Steel With Chamfered End. • Resistant to Solvents, Oils, Greases, and other Chemical Agents • Optional button colors available upon request (Black, Grey, Yellow, Blue & Red) Adjustable Handle Elesa Orginal Design • Material: Glass Fibre Reinforced Technopolymer • Finish: Body - Gray/Black Matte Push Button - Orange • Insert: Brass With Tapped Blind Hole • Resistant to Solvents, Oils, Greases, and other Chemical Agents • Optional button colors available upon request (Black, Grey, Yellow, Blue & Red) With Brass Insert Brass Stainless Insert Insert A B C D E F G H I J K 34401 - 1.73 2.05 .61 1.28 1.16 .24 .98 .47 .43 10-24 .39 34402 34412 1.73 2.05 .61 1.28 1.16 .24 .98 .47 .43 1/4-20 .39 34403 - 2.48 2.89 .75 1.69 1.48 .31 1.36 .59 .53 1/4-20 .47 34404 34414 2.48 2.89 .75 1.69 1.48 .31 1.36 .59 .53 5/16-18 .51 34406 - 3.07 3.56 .91 2.13 1.85 .47 1.73 .75 .63 3/8-16 .67 34407 34416 3.07 3.56 .91 2.13 1.85 .47 1.73 .75 .63 1/2-13 .67 34408 - 3.74 4.29 1.04 2.54 2.15 .51 2.09 .85 .71 3/8-16 .79 34409 - 3.74 4.29 1.04 2.54 2.15 .51 2.09 .85 .71 1/2-13 .79
