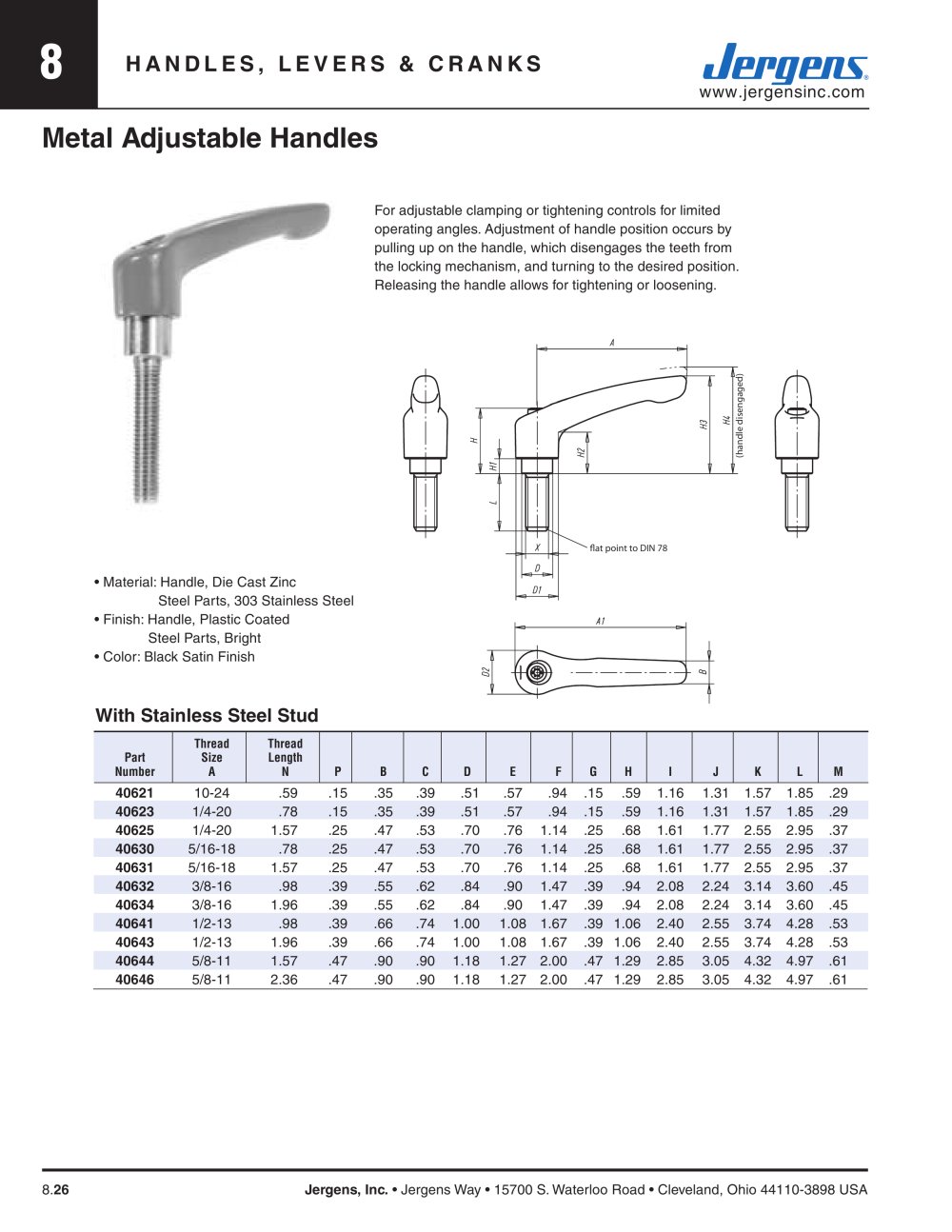

8 HANDLES, LEVERS & CRANKS www.jergensinc.com 8.26 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA • Material: Handle, Die Cast Zinc Steel Parts, 303 Stainless Steel • Finish: Handle, Plastic Coated Steel Parts, Bright • Color: Black Satin Finish For adjustable clamping or tightening controls for limited operating angles. Adjustment of handle position occurs by pulling up on the handle, which disengages the teeth from the locking mechanism, and turning to the desired position. Releasing the handle allows for tightening or loosening. Metal Adjustable Handles With Stainless Steel Stud Thread Thread Part Size Length Number A N P B C D E F G H I J K L M 40621 10-24 .59 .15 .35 .39 .51 .57 .94 .15 .59 1.16 1.31 1.57 1.85 .29 40623 1/4-20 .78 .15 .35 .39 .51 .57 .94 .15 .59 1.16 1.31 1.57 1.85 .29 40625 1/4-20 1.57 .25 .47 .53 .70 .76 1.14 .25 .68 1.61 1.77 2.55 2.95 .37 40630 5/16-18 .78 .25 .47 .53 .70 .76 1.14 .25 .68 1.61 1.77 2.55 2.95 .37 40631 5/16-18 1.57 .25 .47 .53 .70 .76 1.14 .25 .68 1.61 1.77 2.55 2.95 .37 40632 3/8-16 .98 .39 .55 .62 .84 .90 1.47 .39 .94 2.08 2.24 3.14 3.60 .45 40634 3/8-16 1.96 .39 .55 .62 .84 .90 1.47 .39 .94 2.08 2.24 3.14 3.60 .45 40641 1/2-13 .98 .39 .66 .74 1.00 1.08 1.67 .39 1.06 2.40 2.55 3.74 4.28 .53 40643 1/2-13 1.96 .39 .66 .74 1.00 1.08 1.67 .39 1.06 2.40 2.55 3.74 4.28 .53 40644 5/8-11 1.57 .47 .90 .90 1.18 1.27 2.00 .47 1.29 2.85 3.05 4.32 4.97 .61 40646 5/8-11 2.36 .47 .90 .90 1.18 1.27 2.00 .47 1.29 2.85 3.05 4.32 4.97 .61 (handle disengaged) flat point to DIN 78
