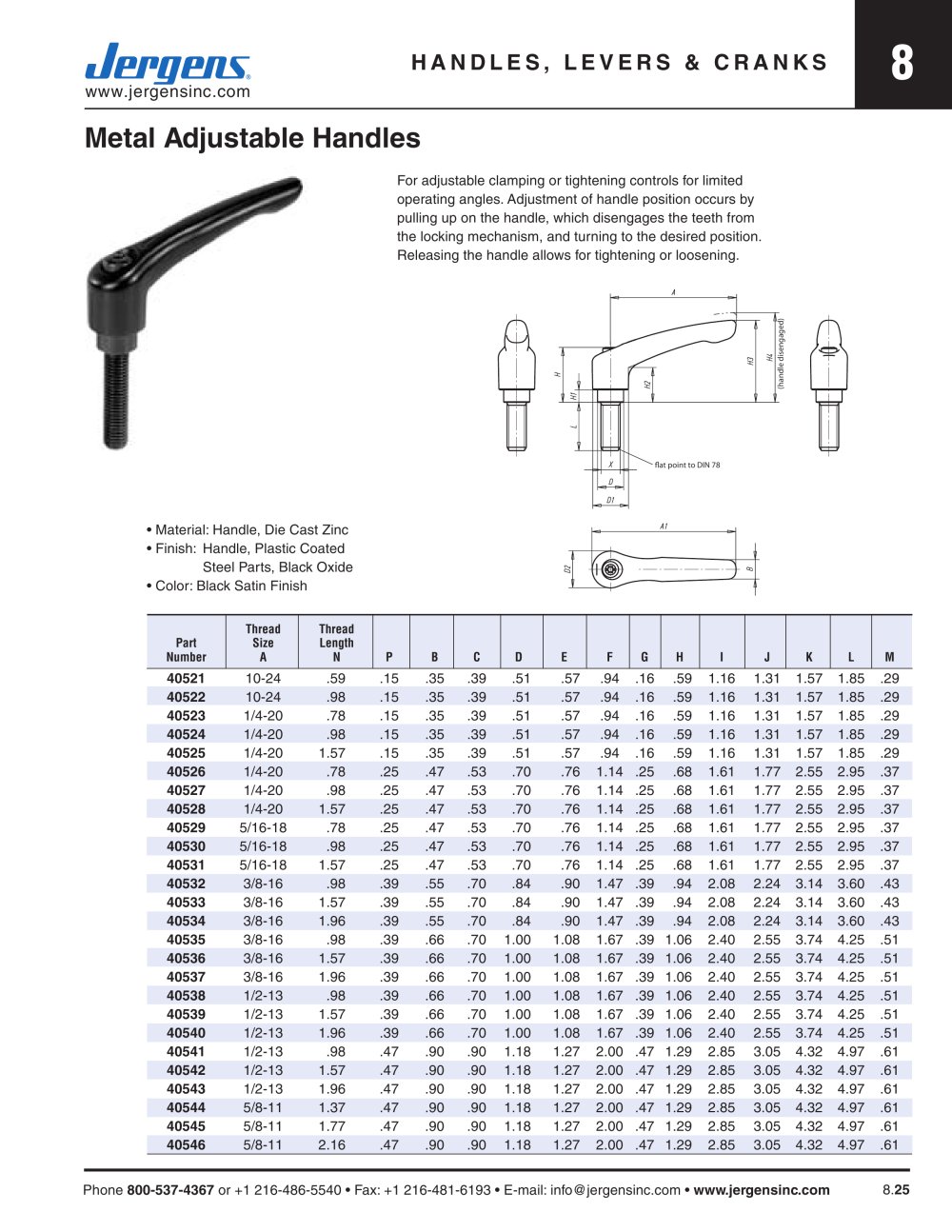

HANDLES, LEVERS & CRANKS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.25 For adjustable clamping or tightening controls for limited operating angles. Adjustment of handle position occurs by pulling up on the handle, which disengages the teeth from the locking mechanism, and turning to the desired position. Releasing the handle allows for tightening or loosening. Metal Adjustable Handles • Material: Handle, Die Cast Zinc • Finish: Handle, Plastic Coated Steel Parts, Black Oxide • Color: Black Satin Finish Thread Thread Part Size Length Number A N P B C D E F G H I J K L M 40521 10-24 .59 .15 .35 .39 .51 .57 .94 .16 .59 1.16 1.31 1.57 1.85 .29 40522 10-24 .98 .15 .35 .39 .51 .57 .94 .16 .59 1.16 1.31 1.57 1.85 .29 40523 1/4-20 .78 .15 .35 .39 .51 .57 .94 .16 .59 1.16 1.31 1.57 1.85 .29 40524 1/4-20 .98 .15 .35 .39 .51 .57 .94 .16 .59 1.16 1.31 1.57 1.85 .29 40525 1/4-20 1.57 .15 .35 .39 .51 .57 .94 .16 .59 1.16 1.31 1.57 1.85 .29 40526 1/4-20 .78 .25 .47 .53 .70 .76 1.14 .25 .68 1.61 1.77 2.55 2.95 .37 40527 1/4-20 .98 .25 .47 .53 .70 .76 1.14 .25 .68 1.61 1.77 2.55 2.95 .37 40528 1/4-20 1.57 .25 .47 .53 .70 .76 1.14 .25 .68 1.61 1.77 2.55 2.95 .37 40529 5/16-18 .78 .25 .47 .53 .70 .76 1.14 .25 .68 1.61 1.77 2.55 2.95 .37 40530 5/16-18 .98 .25 .47 .53 .70 .76 1.14 .25 .68 1.61 1.77 2.55 2.95 .37 40531 5/16-18 1.57 .25 .47 .53 .70 .76 1.14 .25 .68 1.61 1.77 2.55 2.95 .37 40532 3/8-16 .98 .39 .55 .70 .84 .90 1.47 .39 .94 2.08 2.24 3.14 3.60 .43 40533 3/8-16 1.57 .39 .55 .70 .84 .90 1.47 .39 .94 2.08 2.24 3.14 3.60 .43 40534 3/8-16 1.96 .39 .55 .70 .84 .90 1.47 .39 .94 2.08 2.24 3.14 3.60 .43 40535 3/8-16 .98 .39 .66 .70 1.00 1.08 1.67 .39 1.06 2.40 2.55 3.74 4.25 .51 40536 3/8-16 1.57 .39 .66 .70 1.00 1.08 1.67 .39 1.06 2.40 2.55 3.74 4.25 .51 40537 3/8-16 1.96 .39 .66 .70 1.00 1.08 1.67 .39 1.06 2.40 2.55 3.74 4.25 .51 40538 1/2-13 .98 .39 .66 .70 1.00 1.08 1.67 .39 1.06 2.40 2.55 3.74 4.25 .51 40539 1/2-13 1.57 .39 .66 .70 1.00 1.08 1.67 .39 1.06 2.40 2.55 3.74 4.25 .51 40540 1/2-13 1.96 .39 .66 .70 1.00 1.08 1.67 .39 1.06 2.40 2.55 3.74 4.25 .51 40541 1/2-13 .98 .47 .90 .90 1.18 1.27 2.00 .47 1.29 2.85 3.05 4.32 4.97 .61 40542 1/2-13 1.57 .47 .90 .90 1.18 1.27 2.00 .47 1.29 2.85 3.05 4.32 4.97 .61 40543 1/2-13 1.96 .47 .90 .90 1.18 1.27 2.00 .47 1.29 2.85 3.05 4.32 4.97 .61 40544 5/8-11 1.37 .47 .90 .90 1.18 1.27 2.00 .47 1.29 2.85 3.05 4.32 4.97 .61 40545 5/8-11 1.77 .47 .90 .90 1.18 1.27 2.00 .47 1.29 2.85 3.05 4.32 4.97 .61 40546 5/8-11 2.16 .47 .90 .90 1.18 1.27 2.00 .47 1.29 2.85 3.05 4.32 4.97 .61 (handle disengaged) flat point to DIN 78
