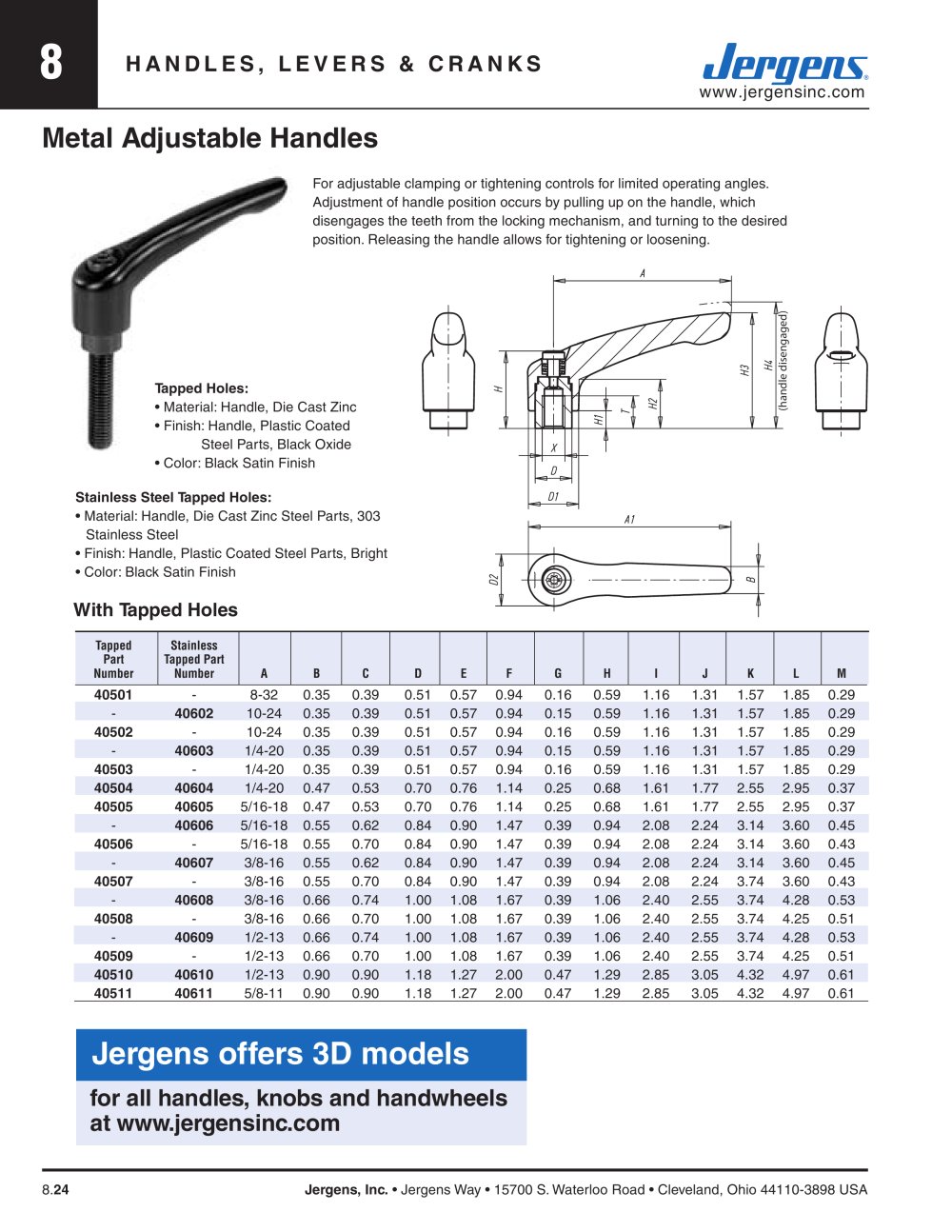

8 HANDLES, LEVERS & CRANKS www.jergensinc.com 8.24 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA For adjustable clamping or tightening controls for limited operating angles. Adjustment of handle position occurs by pulling up on the handle, which disengages the teeth from the locking mechanism, and turning to the desired position. Releasing the handle allows for tightening or loosening. Metal Adjustable Handles Tapped Holes: • Material: Handle, Die Cast Zinc • Finish: Handle, Plastic Coated Steel Parts, Black Oxide • Color: Black Satin Finish With Tapped Holes Tapped Stainless Part Tapped Part Number Number A B C D E F G H I J K L M 40501 - 8-32 0.35 0.39 0.51 0.57 0.94 0.16 0.59 1.16 1.31 1.57 1.85 0.29 - 40602 10-24 0.35 0.39 0.51 0.57 0.94 0.15 0.59 1.16 1.31 1.57 1.85 0.29 40502 - 10-24 0.35 0.39 0.51 0.57 0.94 0.16 0.59 1.16 1.31 1.57 1.85 0.29 - 40603 1/4-20 0.35 0.39 0.51 0.57 0.94 0.15 0.59 1.16 1.31 1.57 1.85 0.29 40503 - 1/4-20 0.35 0.39 0.51 0.57 0.94 0.16 0.59 1.16 1.31 1.57 1.85 0.29 40504 40604 1/4-20 0.47 0.53 0.70 0.76 1.14 0.25 0.68 1.61 1.77 2.55 2.95 0.37 40505 40605 5/16-18 0.47 0.53 0.70 0.76 1.14 0.25 0.68 1.61 1.77 2.55 2.95 0.37 - 40606 5/16-18 0.55 0.62 0.84 0.90 1.47 0.39 0.94 2.08 2.24 3.14 3.60 0.45 40506 - 5/16-18 0.55 0.70 0.84 0.90 1.47 0.39 0.94 2.08 2.24 3.14 3.60 0.43 - 40607 3/8-16 0.55 0.62 0.84 0.90 1.47 0.39 0.94 2.08 2.24 3.14 3.60 0.45 40507 - 3/8-16 0.55 0.70 0.84 0.90 1.47 0.39 0.94 2.08 2.24 3.74 3.60 0.43 - 40608 3/8-16 0.66 0.74 1.00 1.08 1.67 0.39 1.06 2.40 2.55 3.74 4.28 0.53 40508 - 3/8-16 0.66 0.70 1.00 1.08 1.67 0.39 1.06 2.40 2.55 3.74 4.25 0.51 - 40609 1/2-13 0.66 0.74 1.00 1.08 1.67 0.39 1.06 2.40 2.55 3.74 4.28 0.53 40509 - 1/2-13 0.66 0.70 1.00 1.08 1.67 0.39 1.06 2.40 2.55 3.74 4.25 0.51 40510 40610 1/2-13 0.90 0.90 1.18 1.27 2.00 0.47 1.29 2.85 3.05 4.32 4.97 0.61 40511 40611 5/8-11 0.90 0.90 1.18 1.27 2.00 0.47 1.29 2.85 3.05 4.32 4.97 0.61 Stainless Steel Tapped Holes: • Material: Handle, Die Cast Zinc Steel Parts, 303 Stainless Steel • Finish: Handle, Plastic Coated Steel Parts, Bright • Color: Black Satin Finish for all handles, knobs and handwheels at www.jergensinc.com Jergens offers 3D models (handle disengaged)
