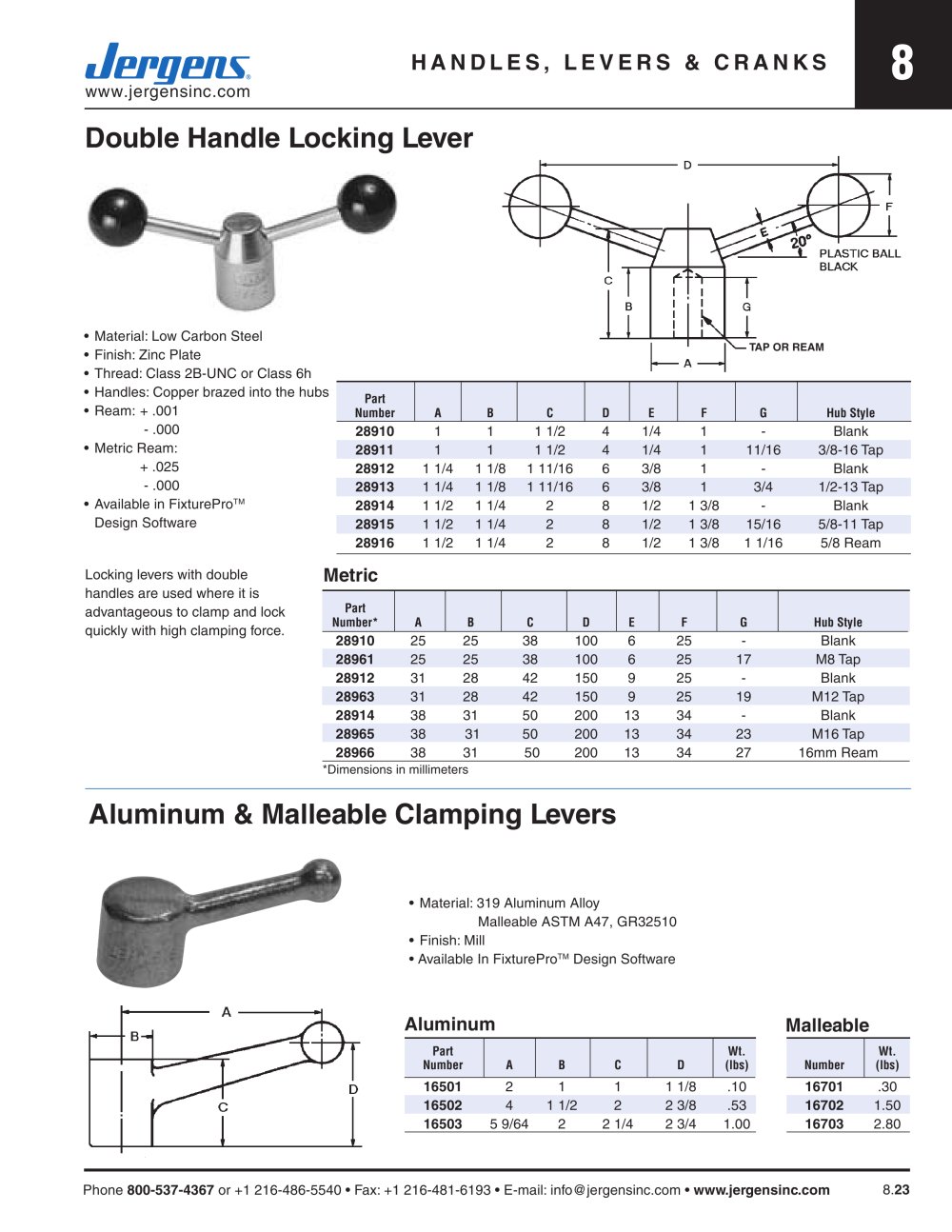

HANDLES, LEVERS & CRANKS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.23 Part Number* A B C D E F G Hub Style 28910 25 25 38 100 6 25 - Blank 28961 25 25 38 100 6 25 17 M8 Tap 28912 31 28 42 150 9 25 - Blank 28963 31 28 42 150 9 25 19 M12 Tap 28914 38 31 50 200 13 34 - Blank 28965 38 31 50 200 13 34 23 M16 Tap 28966 38 31 50 200 13 34 27 16mm Ream • Material: Low Carbon Steel • Finish: Zinc Plate • Thread: Class 2B-UNC or Class 6h • Handles: Copper brazed into the hubs • Ream: + .001 - .000 • Metric Ream: + .025 - .000 • Available in FixtureProTM Design Software Locking levers with double handles are used where it is advantageous to clamp and lock quickly with high clamping force. Double Handle Locking Lever TAP OR REAM Part Wt. Wt. Number A B C D (lbs) Number (lbs) 16501 2 1 1 1 1/8 .10 16701 .30 16502 4 1 1/2 2 2 3/8 .53 16702 1.50 16503 5 9/64 2 2 1/4 2 3/4 1.00 16703 2.80 Aluminum & Malleable Clamping Levers Aluminum Malleable • Material: 319 Aluminum Alloy Malleable ASTM A47, GR32510 • Finish: Mill • Available In FixtureProTM Design Software Metric *Dimensions in millimeters Part Number A B C D E F G Hub Style 28910 1 1 1 1/2 4 1/4 1 - Blank 28911 1 1 1 1/2 4 1/4 1 11/16 3/8-16 Tap 28912 1 1/4 1 1/8 1 11/16 6 3/8 1 - Blank 28913 1 1/4 1 1/8 1 11/16 6 3/8 1 3/4 1/2-13 Tap 28914 1 1/2 1 1/4 2 8 1/2 1 3/8 - Blank 28915 1 1/2 1 1/4 2 8 1/2 1 3/8 15/16 5/8-11 Tap 28916 1 1/2 1 1/4 2 8 1/2 1 3/8 1 1/16 5/8 Ream
