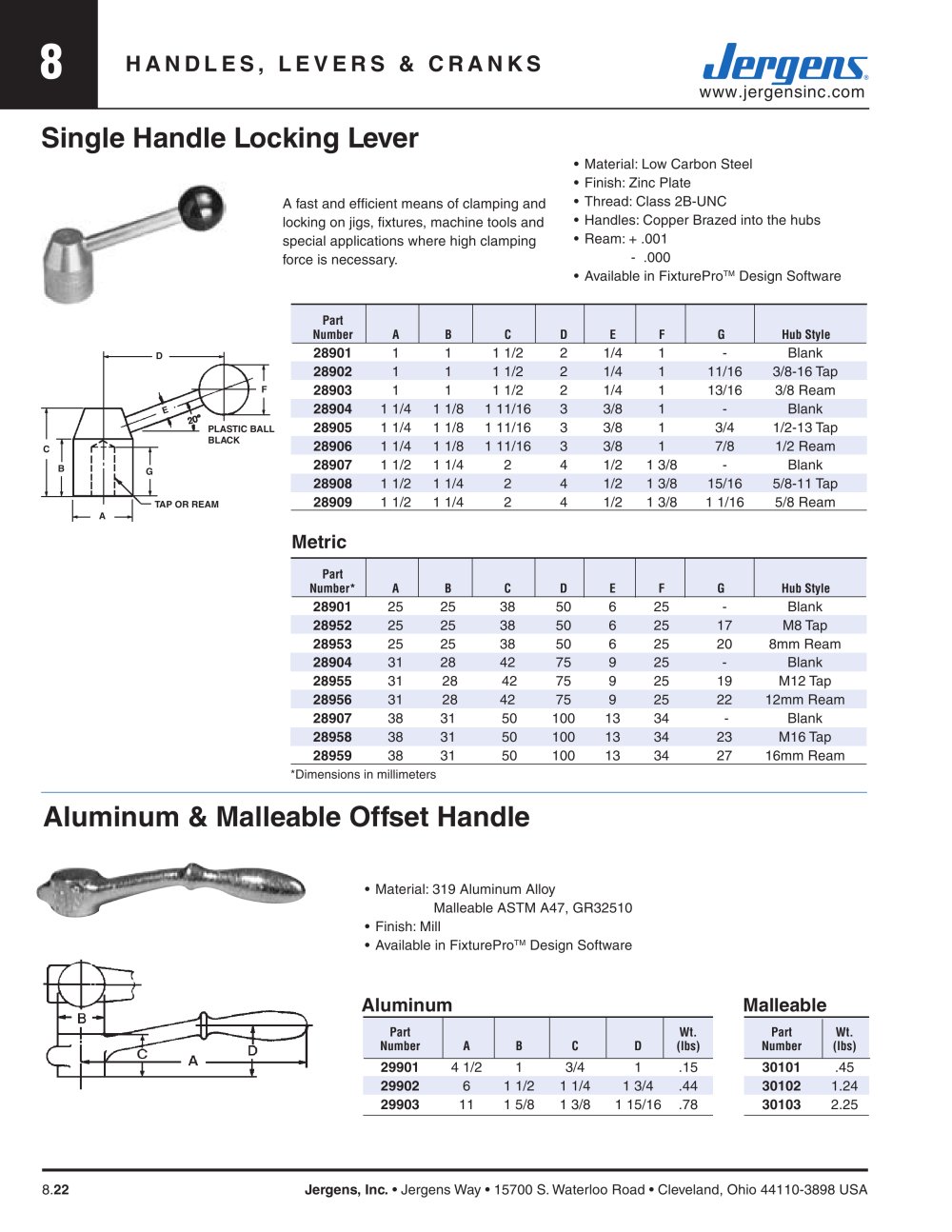

8 HANDLES, LEVERS & CRANKS www.jergensinc.com 8.22 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Single Handle Locking Lever Part Number A B C D E F G Hub Style 28901 1 1 1 1/2 2 1/4 1 - Blank 28902 1 1 1 1/2 2 1/4 1 11/16 3/8-16 Tap 28903 1 1 1 1/2 2 1/4 1 13/16 3/8 Ream 28904 1 1/4 1 1/8 1 11/16 3 3/8 1 - Blank 28905 1 1/4 1 1/8 1 11/16 3 3/8 1 3/4 1/2-13 Tap 28906 1 1/4 1 1/8 1 11/16 3 3/8 1 7/8 1/2 Ream 28907 1 1/2 1 1/4 2 4 1/2 1 3/8 - Blank 28908 1 1/2 1 1/4 2 4 1/2 1 3/8 15/16 5/8-11 Tap 28909 1 1/2 1 1/4 2 4 1/2 1 3/8 1 1/16 5/8 Ream • Material: Low Carbon Steel • Finish: Zinc Plate • Thread: Class 2B-UNC • Handles: Copper Brazed into the hubs • Ream: + .001 - .000 • Available in FixtureProTM Design Software A fast and efficient means of clamping and locking on jigs, fixtures, machine tools and special applications where high clamping force is necessary. TAP OR REAM Aluminum & Malleable Offset Handle • Material: 319 Aluminum Alloy Malleable ASTM A47, GR32510 • Finish: Mill • Available in FixtureProTM Design Software Aluminum Malleable Part Wt. Part Wt. Number A B C D (lbs) Number (lbs) 29901 4 1/2 1 3/4 1 .15 30101 .45 29902 6 1 1/2 1 1/4 1 3/4 .44 30102 1.24 29903 11 1 5/8 1 3/8 1 15/16 .78 30103 2.25 Part Number* A B C D E F G Hub Style 28901 25 25 38 50 6 25 - Blank 28952 25 25 38 50 6 25 17 M8 Tap 28953 25 25 38 50 6 25 20 8mm Ream 28904 31 28 42 75 9 25 - Blank 28955 31 28 42 75 9 25 19 M12 Tap 28956 31 28 42 75 9 25 22 12mm Ream 28907 38 31 50 100 13 34 - Blank 28958 38 31 50 100 13 34 23 M16 Tap 28959 38 31 50 100 13 34 27 16mm Ream Metric *Dimensions in millimeters A B C D E G F PLASTIC BALL BLACK
