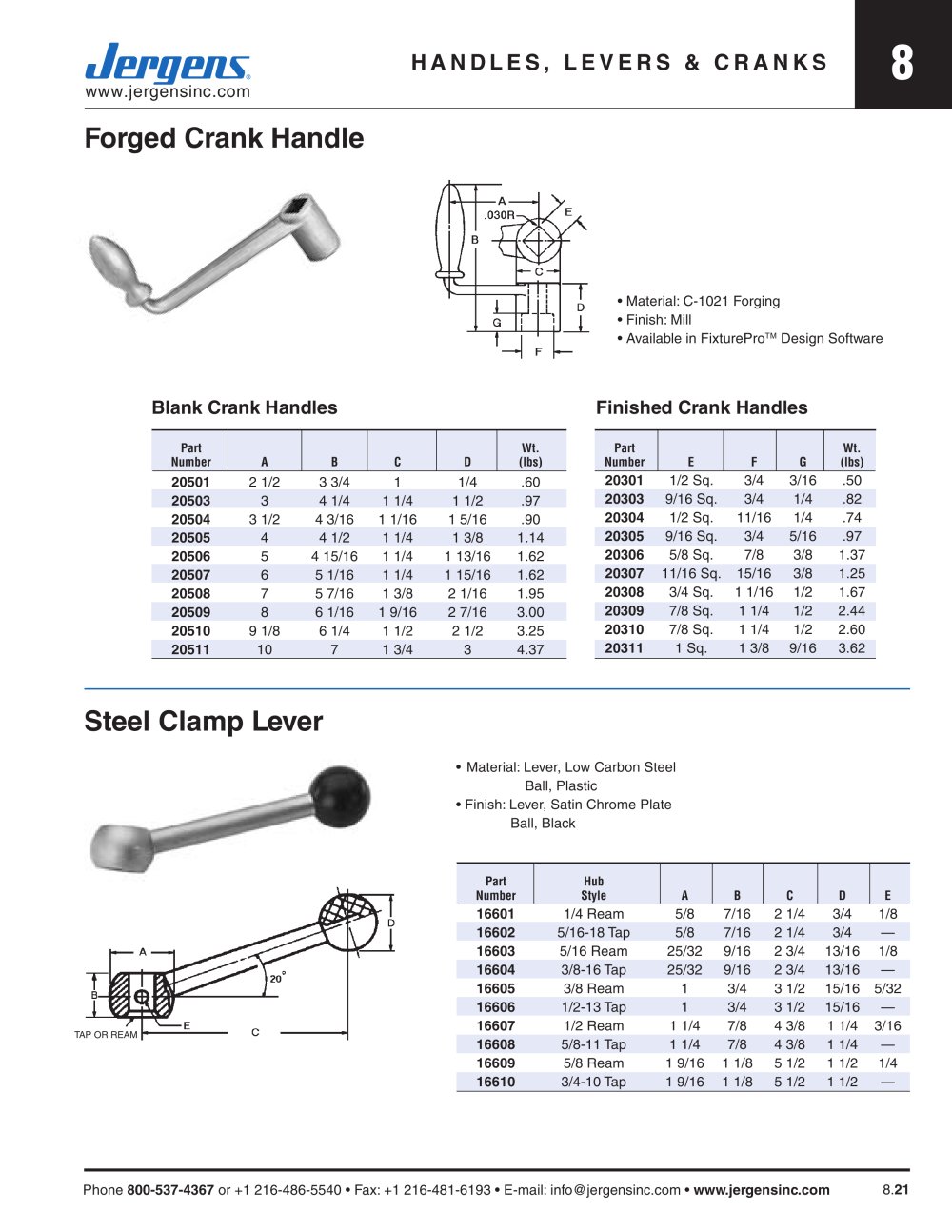

HANDLES, LEVERS & CRANKS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.21 • Material: C-1021 Forging • Finish: Mill • Available in FixtureProTM Design Software TAP OR REAM Steel Clamp Lever Forged Crank Handle Part Hub Number Style A B C D E 16601 1/4 Ream 5/8 7/16 2 1/4 3/4 1/8 16602 5/16-18 Tap 5/8 7/16 2 1/4 3/4 — 16603 5/16 Ream 25/32 9/16 2 3/4 13/16 1/8 16604 3/8-16 Tap 25/32 9/16 2 3/4 13/16 — 16605 3/8 Ream 1 3/4 3 1/2 15/16 5/32 16606 1/2-13 Tap 1 3/4 3 1/2 15/16 — 16607 1/2 Ream 1 1/4 7/8 4 3/8 1 1/4 3/16 16608 5/8-11 Tap 1 1/4 7/8 4 3/8 1 1/4 — 16609 5/8 Ream 1 9/16 1 1/8 5 1/2 1 1/2 1/4 16610 3/4-10 Tap 1 9/16 1 1/8 5 1/2 1 1/2 — • Material: Lever, Low Carbon Steel Ball, Plastic • Finish: Lever, Satin Chrome Plate Ball, Black Blank Crank Handles Finished Crank Handles Part Wt. Number A B C D (lbs) 20501 2 1/2 3 3/4 1 1/4 .60 20503 3 4 1/4 1 1/4 1 1/2 .97 20504 3 1/2 4 3/16 1 1/16 1 5/16 .90 20505 4 4 1/2 1 1/4 1 3/8 1.14 20506 5 4 15/16 1 1/4 1 13/16 1.62 20507 6 5 1/16 1 1/4 1 15/16 1.62 20508 7 5 7/16 1 3/8 2 1/16 1.95 20509 8 6 1/16 1 9/16 2 7/16 3.00 20510 9 1/8 6 1/4 1 1/2 2 1/2 3.25 20511 10 7 1 3/4 3 4.37 Part Wt. Number E F G (lbs) 20301 1/2 Sq. 3/4 3/16 .50 20303 9/16 Sq. 3/4 1/4 .82 20304 1/2 Sq. 11/16 1/4 .74 20305 9/16 Sq. 3/4 5/16 .97 20306 5/8 Sq. 7/8 3/8 1.37 20307 11/16 Sq. 15/16 3/8 1.25 20308 3/4 Sq. 1 1/16 1/2 1.67 20309 7/8 Sq. 1 1/4 1/2 2.44 20310 7/8 Sq. 1 1/4 1/2 2.60 20311 1 Sq. 1 3/8 9/16 3.62
