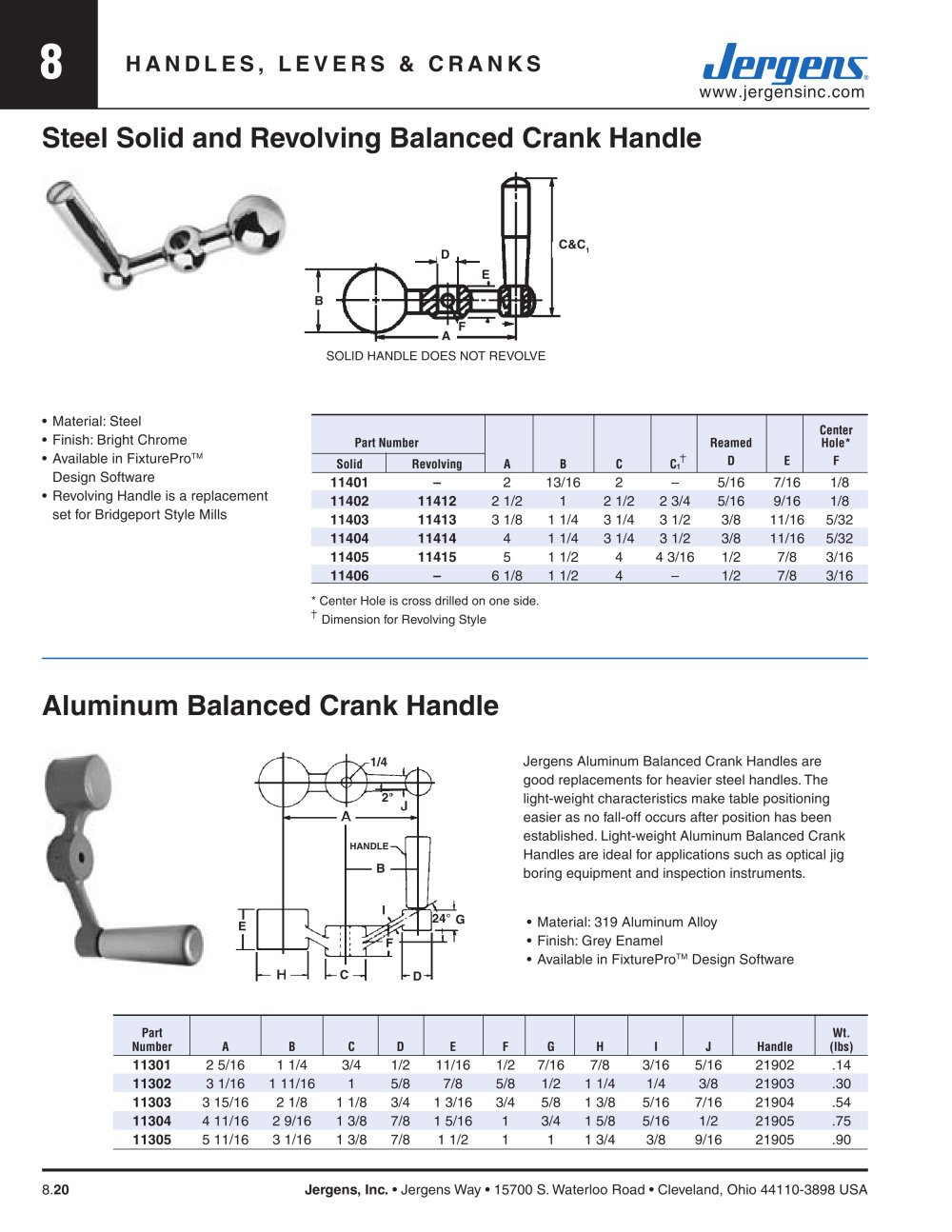

8 HANDLES, LEVERS & CRANKS www.jergensinc.com 8.20 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Steel Solid and Revolving Balanced Crank Handle A B D E F SOLID HANDLE DOES NOT REVOLVE C&C1 • Material: Steel • Finish: Bright Chrome • Available in FixtureProTM Design Software • Revolving Handle is a replacement set for Bridgeport Style Mills 2° HANDLE C D E I F B 24° 1/4 Jergens Aluminum Balanced Crank Handles are good replacements for heavier steel handles. The light-weight characteristics make table positioning easier as no fall-off occurs after position has been established. Light-weight Aluminum Balanced Crank Handles are ideal for applications such as optical jig boring equipment and inspection instruments. • Material: 319 Aluminum Alloy • Finish: Grey Enamel • Available in FixtureProTM Design Software Aluminum Balanced Crank Handle Center Part Number Reamed Hole* Solid Revolving A B C C1 D E F 11401 – 2 13/16 2 – 5/16 7/16 1/8 11402 11412 2 1/2 1 2 1/2 2 3/4 5/16 9/16 1/8 11403 11413 3 1/8 1 1/4 3 1/4 3 1/2 3/8 11/16 5/32 11404 11414 4 1 1/4 3 1/4 3 1/2 3/8 11/16 5/32 11405 11415 5 1 1/2 4 4 3/16 1/2 7/8 3/16 11406 – 6 1/8 1 1/2 4 – 1/2 7/8 3/16 * Center Hole is cross drilled on one side. Dimension for Revolving Style Part Wt. Number A B C D E F G H I J Handle (lbs) 11301 2 5/16 1 1/4 3/4 1/2 11/16 1/2 7/16 7/8 3/16 5/16 21902 .14 11302 3 1/16 1 11/16 1 5/8 7/8 5/8 1/2 1 1/4 1/4 3/8 21903 .30 11303 3 15/16 2 1/8 1 1/8 3/4 1 3/16 3/4 5/8 1 3/8 5/16 7/16 21904 .54 11304 4 11/16 2 9/16 1 3/8 7/8 1 5/16 1 3/4 1 5/8 5/16 1/2 21905 .75 11305 5 11/16 3 1/16 1 3/8 7/8 1 1/2 1 1 1 3/4 3/8 9/16 21905 .90 G
