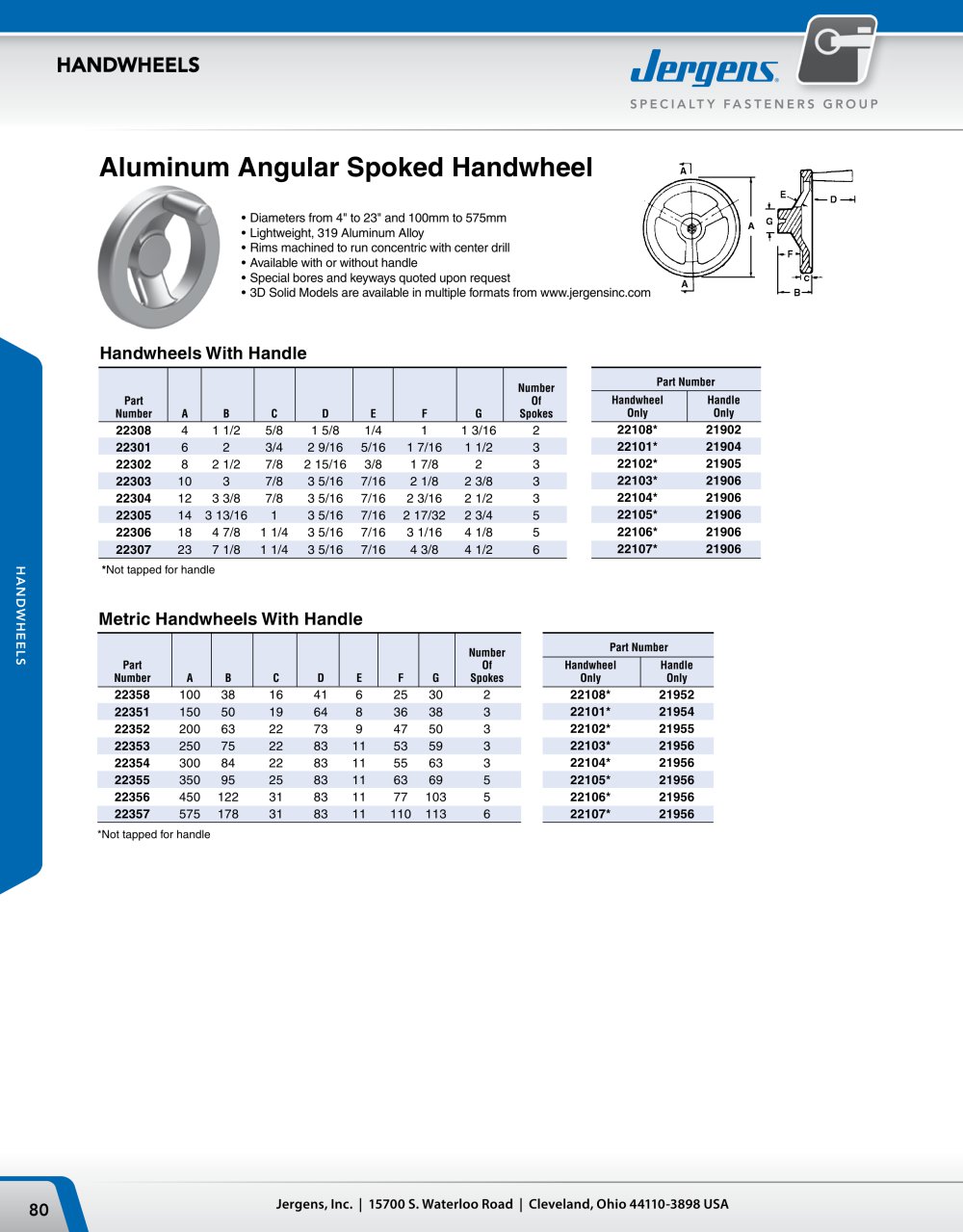

8 HANDWHEELS www.jergensinc.com 8.2 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA • Diameters from 4" to 23" and 100mm to 575mm • Lightweight, 319 Aluminum Alloy • Rims machined to run concentric with center drill • Available with or without handle • Special bores and keyways quoted upon request • Available in FixtureProTM Design Software Part Number Handwheel Handle Only Only 22108* 21902 22101* 21904 22102* 21905 22103* 21906 22104* 21906 22105* 21906 22106* 21906 22107* 21906 Aluminum Angular Spoked Handwheel Part Number Handwheel Handle Only Only 22108* 21952 22101* 21954 22102* 21955 22103* 21956 22104* 21956 22105* 21956 22106* 21956 22107* 21956 Metric Handwheels With Handle *Not tapped for handle Handwheels With Handle Number Part Of Number A B C D E F G Spokes 22308 4 1 1/2 5/8 1 5/8 1/4 1 1 3/16 2 22301 6 2 3/4 2 9/16 5/16 1 7/16 1 1/2 3 22302 8 2 1/2 7/8 2 15/16 3/8 1 7/8 2 3 22303 10 3 7/8 3 5/16 7/16 2 1/8 2 3/8 3 22304 12 3 3/8 7/8 3 5/16 7/16 2 3/16 2 1/2 3 22305 14 3 13/16 1 3 5/16 7/16 2 17/32 2 3/4 5 22306 18 4 7/8 1 1/4 3 5/16 7/16 3 1/16 4 1/8 5 22307 23 7 1/8 1 1/4 3 5/16 7/16 4 3/8 4 1/2 6 *Not tapped for handle Number Part Of Number A B C D E F G Spokes 22358 100 38 16 41 6 25 30 2 22351 150 50 19 64 8 36 38 3 22352 200 63 22 73 9 47 50 3 22353 250 75 22 83 11 53 59 3 22354 300 84 22 83 11 55 63 3 22355 350 95 25 83 11 63 69 5 22356 450 122 31 83 11 77 103 5 22357 575 178 31 83 11 110 113 6 Cast Iron Angular Spoked Handwheel • Fine Grain Cast Iron • Rims machined to run concentric with center hole • All cast iron wheels have two spokes and finger grips. Available with or without handle • Available with Black Epoxy finish and a plain finished handle with polished rim • Other colors of Epoxy Finish available upon request • Available in FixtureProTM Design Software Handwheels With Handle Part Part Polished Part Number Number Number Handwheel Handle (Polished) (Black) A B C D E F G H Only Only 22401 22411 4 1 1/2 5/8 1 5/8 1/4 1 1 3/16 3/8 22201* 21902 22402 22412 6 2 3/4 2 9/16 3/8 1 7/16 1 9/16 1/2 22202* 21904 22403 22413 8 2 1/4 7/8 2 15/16 7/16 1 1/2 1 25/32 5/8 22203* 21905 22404 22414 10 3 1 3 5/16 1/2 2 1/4 2 1/4 5/8 22204* 21906 *Not drilled and tapped for handle Black Part Number Handwheel Handle Only Only 22211* 21912 22212* 21914 22213* 21915 22214* 21916
