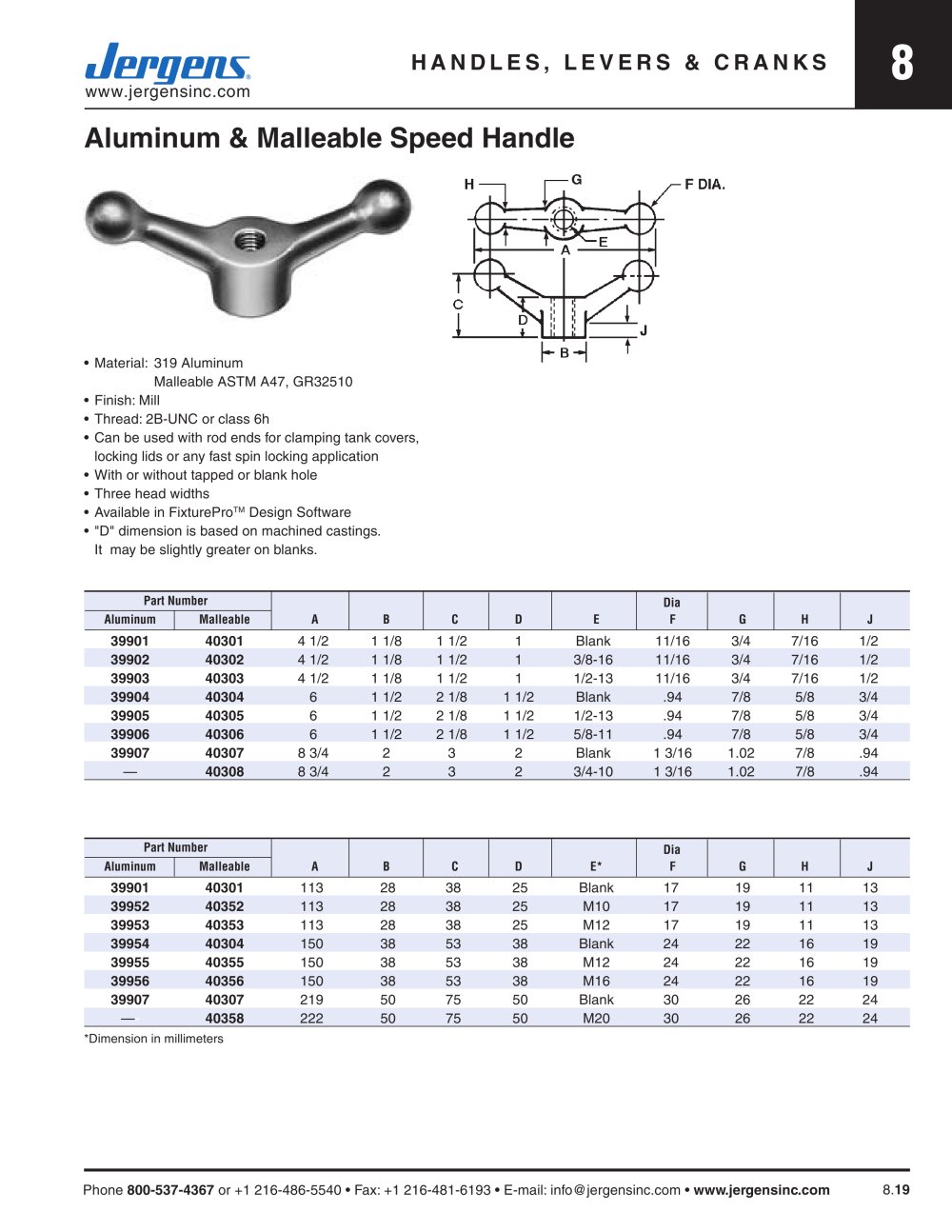

HANDLES, LEVERS & CRANKS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.19 Aluminum & Malleable Speed Handle • Material: 319 Aluminum Malleable ASTM A47, GR32510 • Finish: Mill • Thread: 2B-UNC or class 6h • Can be used with rod ends for clamping tank covers, locking lids or any fast spin locking application • With or without tapped or blank hole • Three head widths • Available in FixtureProTM Design Software • "D" dimension is based on machined castings. It may be slightly greater on blanks. Part Number Dia Aluminum Malleable A B C D E F G H J 39901 40301 4 1/2 1 1/8 1 1/2 1 Blank 11/16 3/4 7/16 1/2 39902 40302 4 1/2 1 1/8 1 1/2 1 3/8-16 11/16 3/4 7/16 1/2 39903 40303 4 1/2 1 1/8 1 1/2 1 1/2-13 11/16 3/4 7/16 1/2 39904 40304 6 1 1/2 2 1/8 1 1/2 Blank .94 7/8 5/8 3/4 39905 40305 6 1 1/2 2 1/8 1 1/2 1/2-13 .94 7/8 5/8 3/4 39906 40306 6 1 1/2 2 1/8 1 1/2 5/8-11 .94 7/8 5/8 3/4 39907 40307 8 3/4 2 3 2 Blank 1 3/16 1.02 7/8 .94 — 40308 8 3/4 2 3 2 3/4-10 1 3/16 1.02 7/8 .94 Part Number Dia Aluminum Malleable A B C D E* F G H J 39901 40301 113 28 38 25 Blank 17 19 11 13 39952 40352 113 28 38 25 M10 17 19 11 13 39953 40353 113 28 38 25 M12 17 19 11 13 39954 40304 150 38 53 38 Blank 24 22 16 19 39955 40355 150 38 53 38 M12 24 22 16 19 39956 40356 150 38 53 38 M16 24 22 16 19 39907 40307 219 50 75 50 Blank 30 26 22 24 —- 40358 222 50 75 50 M20 30 26 22 24 *Dimension in millimeters
