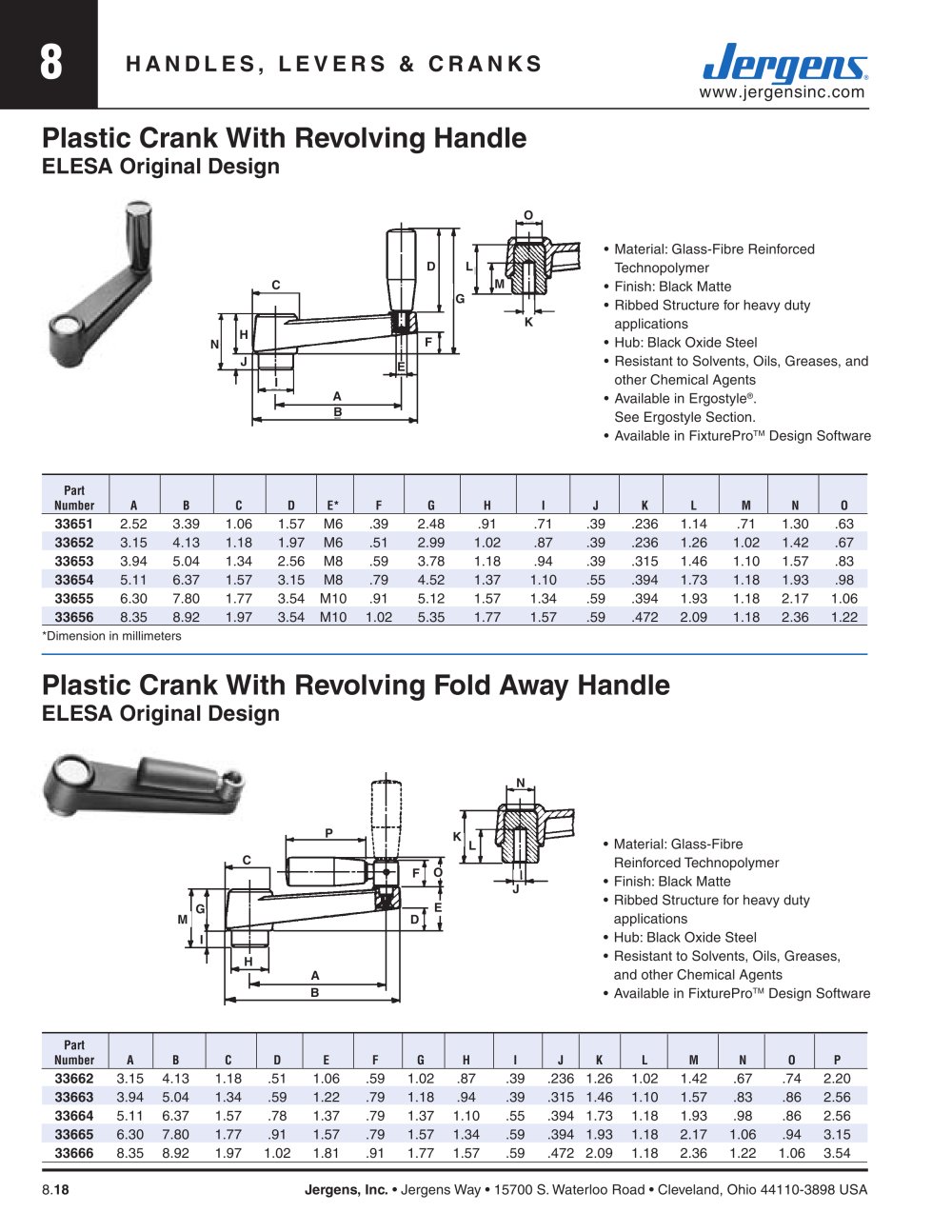

8 HANDLES, LEVERS & CRANKS www.jergensinc.com 8.18 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA J A B C F E G H I K L M N O D A B C H J G I D F K L N M Plastic Crank With Revolving Fold Away Handle ELESA Original Design • Material: Glass-Fibre Reinforced Technopolymer • Finish: Black Matte • Ribbed Structure for heavy duty applications • Hub: Black Oxide Steel • Resistant to Solvents, Oils, Greases, and other Chemical Agents • Available in FixtureProTM Design Software Plastic Crank With Revolving Handle ELESA Original Design E O P • Material: Glass-Fibre Reinforced Technopolymer • Finish: Black Matte • Ribbed Structure for heavy duty applications • Hub: Black Oxide Steel • Resistant to Solvents, Oils, Greases, and other Chemical Agents • Available in Ergostyle®. See Ergostyle Section. • Available in FixtureProTM Design Software Part Number A B C D E* F G H I J K L M N O 33651 2.52 3.39 1.06 1.57 M6 .39 2.48 .91 .71 .39 .236 1.14 .71 1.30 .63 33652 3.15 4.13 1.18 1.97 M6 .51 2.99 1.02 .87 .39 .236 1.26 1.02 1.42 .67 33653 3.94 5.04 1.34 2.56 M8 .59 3.78 1.18 .94 .39 .315 1.46 1.10 1.57 .83 33654 5.11 6.37 1.57 3.15 M8 .79 4.52 1.37 1.10 .55 .394 1.73 1.18 1.93 .98 33655 6.30 7.80 1.77 3.54 M10 .91 5.12 1.57 1.34 .59 .394 1.93 1.18 2.17 1.06 33656 8.35 8.92 1.97 3.54 M10 1.02 5.35 1.77 1.57 .59 .472 2.09 1.18 2.36 1.22 Part Number A B C D E F G H I J K L M N O P 33662 3.15 4.13 1.18 .51 1.06 .59 1.02 .87 .39 .236 1.26 1.02 1.42 .67 .74 2.20 33663 3.94 5.04 1.34 .59 1.22 .79 1.18 .94 .39 .315 1.46 1.10 1.57 .83 .86 2.56 33664 5.11 6.37 1.57 .78 1.37 .79 1.37 1.10 .55 .394 1.73 1.18 1.93 .98 .86 2.56 33665 6.30 7.80 1.77 .91 1.57 .79 1.57 1.34 .59 .394 1.93 1.18 2.17 1.06 .94 3.15 33666 8.35 8.92 1.97 1.02 1.81 .91 1.77 1.57 .59 .472 2.09 1.18 2.36 1.22 1.06 3.54 *Dimension in millimeters
