HANDLES, LEVERS & CRANKS 8
www.jergensinc.com
Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.17

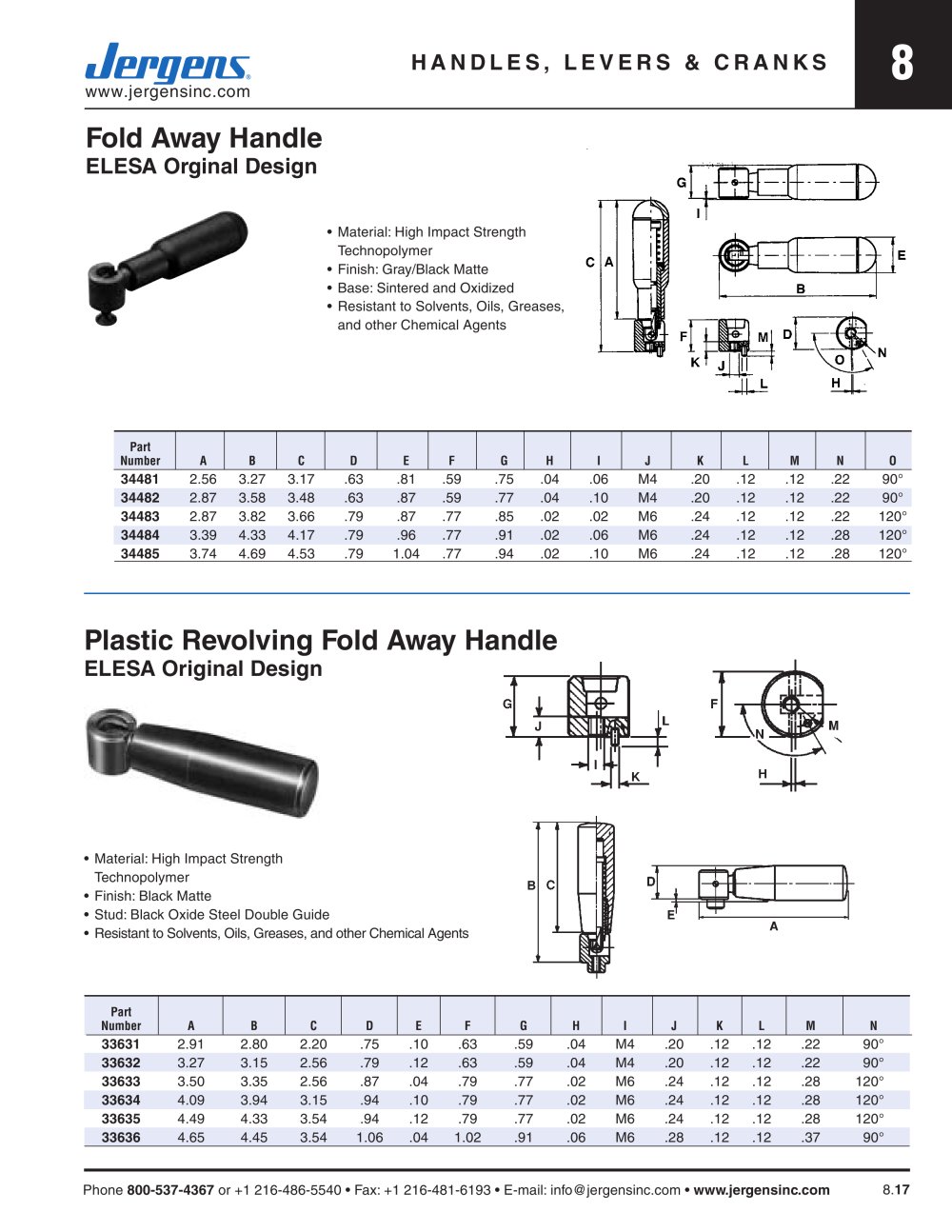

Plastic Revolving Fold Away Handle
ELESA Original Design
• Material: High Impact Strength
Technopolymer
• Finish: Black Matte
• Stud: Black Oxide Steel Double Guide
• Resistant to Solvents, Oils, Greases, and other Chemical Agents
Part
Number A B C D E F G H I J K L M N
33631 2.91 2.80 2.20 .75 .10 .63 .59 .04 M4 .20 .12 .12 .22 90°
33632 3.27 3.15 2.56 .79 .12 .63 .59 .04 M4 .20 .12 .12 .22 90°
33633 3.50 3.35 2.56 .87 .04 .79 .77 .02 M6 .24 .12 .12 .28 120°
33634 4.09 3.94 3.15 .94 .10 .79 .77 .02 M6 .24 .12 .12 .28 120°
33635 4.49 4.33 3.54 .94 .12 .79 .77 .02 M6 .24 .12 .12 .28 120°
33636 4.65 4.45 3.54 1.06 .04 1.02 .91 .06 M6 .28 .12 .12 .37 90°
Part
Number A B C D E F G H I J K L M N O
34481 2.56 3.27 3.17 .63 .81 .59 .75 .04 .06 M4 .20 .12 .12 .22 90°
34482 2.87 3.58 3.48 .63 .87 .59 .77 .04 .10 M4 .20 .12 .12 .22 90°
34483 2.87 3.82 3.66 .79 .87 .77 .85 .02 .02 M6 .24 .12 .12 .22 120°
34484 3.39 4.33 4.17 .79 .96 .77 .91 .02 .06 M6 .24 .12 .12 .28 120°
34485 3.74 4.69 4.53 .79 1.04 .77 .94 .02 .10 M6 .24 .12 .12 .28 120°
Fold Away Handle
Elesa Orginal Design
• Material: High Impact Strength
Technopolymer
• Finish: Gray/Black Matte
• Base: Sintered and Oxidized
• Resistant to Solvents, Oils, Greases,
and other Chemical Agents
