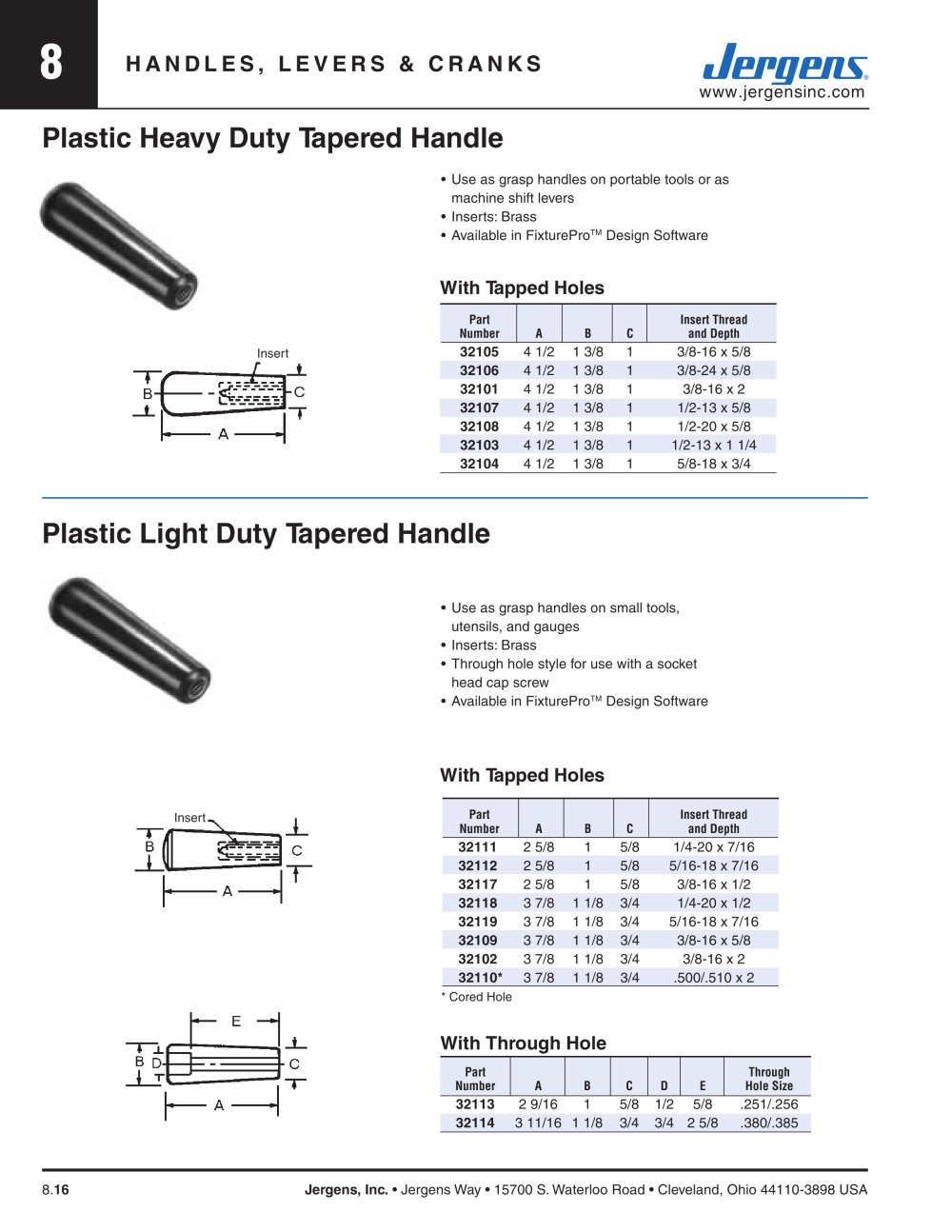

8 HANDLES, LEVERS & CRANKS www.jergensinc.com 8.16 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Plastic Heavy Duty Tapered Handle With Tapped Holes Part Insert Thread Number A B C and Depth 32111 2 5/8 1 5/8 1/4-20 x 7/16 32112 2 5/8 1 5/8 5/16-18 x 7/16 32117 2 5/8 1 5/8 3/8-16 x 1/2 32118 3 7/8 1 1/8 3/4 1/4-20 x 1/2 32119 3 7/8 1 1/8 3/4 5/16-18 x 7/16 32109 3 7/8 1 1/8 3/4 3/8-16 x 5/8 32102 3 7/8 1 1/8 3/4 3/8-16 x 2 32110* 3 7/8 1 1/8 3/4 .500/.510 x 2 * Cored Hole Plastic Light Duty Tapered Handle With Through Hole Part Through Number A B C D E Hole Size 32113 2 9/16 1 5/8 1/2 5/8 .251/.256 32114 3 11/16 1 1/8 3/4 3/4 2 5/8 .380/.385 • Use as grasp handles on portable tools or as machine shift levers • Inserts: Brass • Available in FixtureProTM Design Software With Tapped Holes Insert Insert • Use as grasp handles on small tools, utensils, and gauges • Inserts: Brass • Through hole style for use with a socket head cap screw • Available in FixtureProTM Design Software Part Insert Thread Number A B C and Depth 32105 4 1/2 1 3/8 1 3/8-16 x 5/8 32106 4 1/2 1 3/8 1 3/8-24 x 5/8 32101 4 1/2 1 3/8 1 3/8-16 x 2 32107 4 1/2 1 3/8 1 1/2-13 x 5/8 32108 4 1/2 1 3/8 1 1/2-20 x 5/8 32103 4 1/2 1 3/8 1 1/2-13 x 1 1/4 32104 4 1/2 1 3/8 1 5/8-18 x 3/4
