HANDLES, LEVERS & CRANKS 8
www.jergensinc.com
Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.15

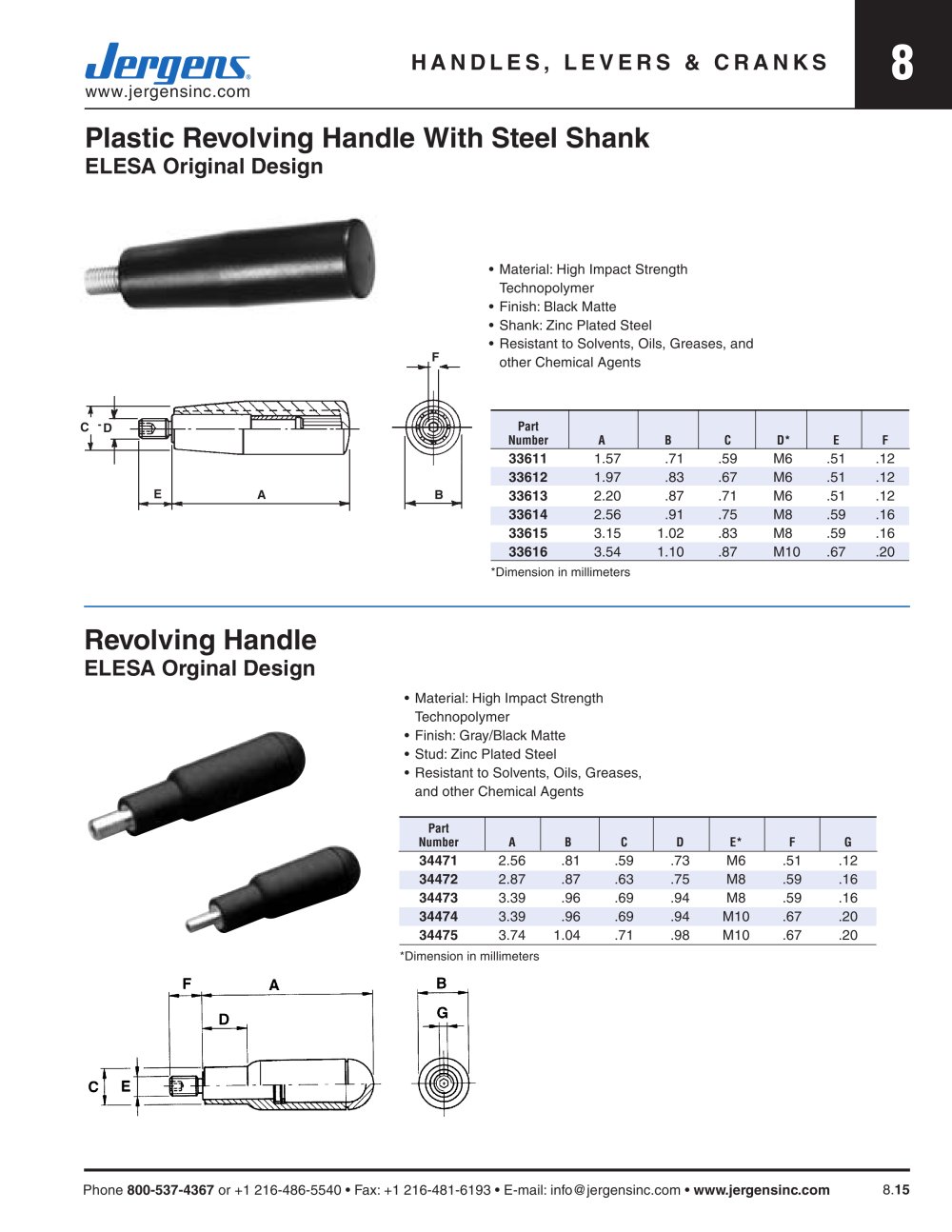

Plastic Revolving Handle With Steel Shank
ELESA Original Design
• Material: High Impact Strength
Technopolymer
• Finish: Black Matte
• Shank: Zinc Plated Steel
• Resistant to Solvents, Oils, Greases, and
other Chemical Agents
A B
C
E
D
F
Part
Number A B C D E* F G
34471 2.56 .81 .59 .73 M6 .51 .12
34472 2.87 .87 .63 .75 M8 .59 .16
34473 3.39 .96 .69 .94 M8 .59 .16
34474 3.39 .96 .69 .94 M10 .67 .20
34475 3.74 1.04 .71 .98 M10 .67 .20
Revolving Handle
Elesa Orginal Design
Part
Number A B C D* E F
33611 1.57 .71 .59 M6 .51 .12
33612 1.97 .83 .67 M6 .51 .12
33613 2.20 .87 .71 M6 .51 .12
33614 2.56 .91 .75 M8 .59 .16
33615 3.15 1.02 .83 M8 .59 .16
33616 3.54 1.10 .87 M10 .67 .20
• Material: High Impact Strength
Technopolymer
• Finish: Gray/Black Matte
• Stud: Zinc Plated Steel
• Resistant to Solvents, Oils, Greases,
and other Chemical Agents
*Dimension in millimeters
*Dimension in millimeters
