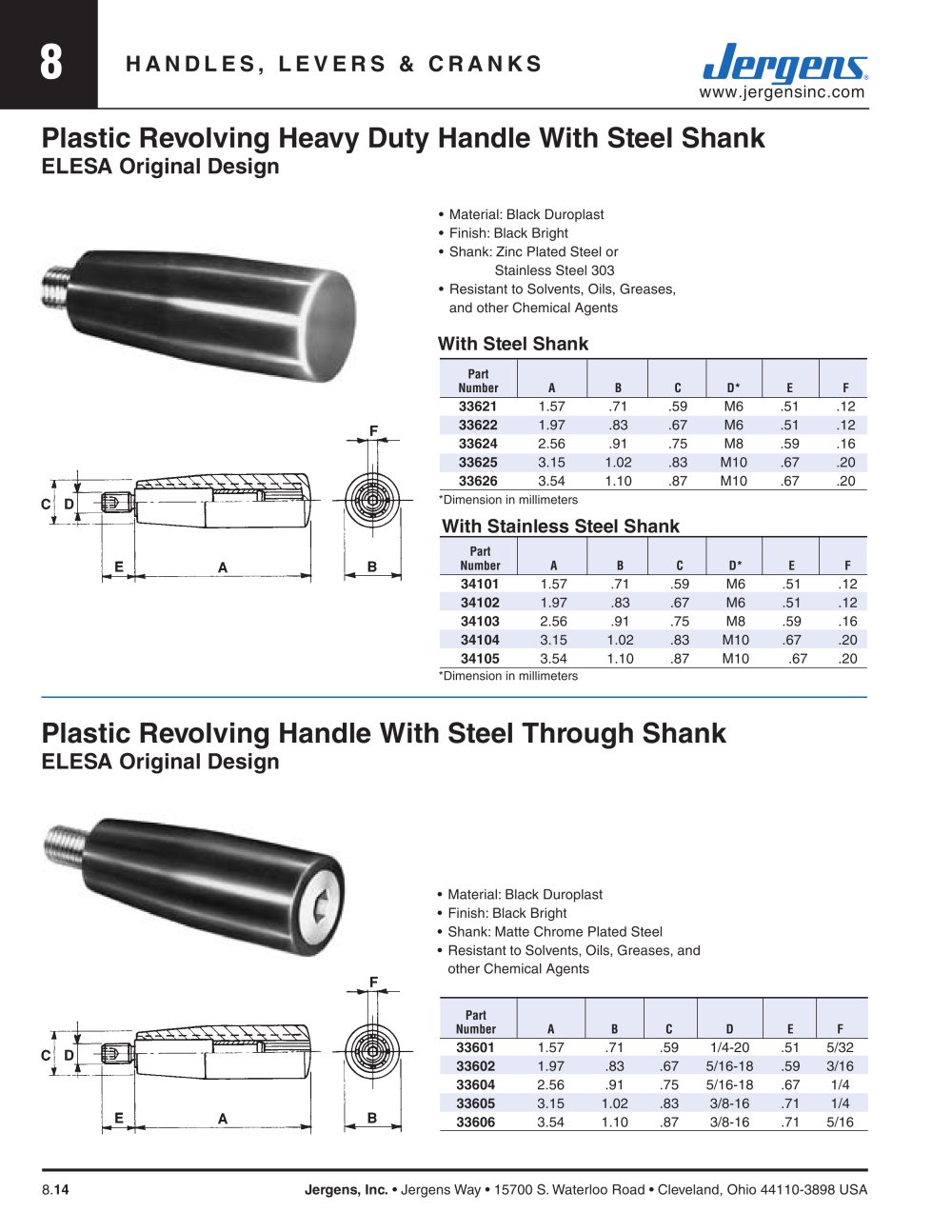

8 HANDLES, LEVERS & CRANKS www.jergensinc.com 8.14 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Plastic Revolving Heavy Duty Handle With Steel Shank ELESA Original Design Plastic Revolving Handle With Steel Through Shank ELESA Original Design • Material: Black Duroplast • Finish: Black Bright • Shank: Matte Chrome Plated Steel • Resistant to Solvents, Oils, Greases, and other Chemical Agents • Material: Black Duroplast • Finish: Black Bright • Shank: Zinc Plated Steel or Stainless Steel 303 • Resistant to Solvents, Oils, Greases, and other Chemical Agents Part Number A B C D* E F 33621 1.57 .71 .59 M6 .51 .12 33622 1.97 .83 .67 M6 .51 .12 33624 2.56 .91 .75 M8 .59 .16 33625 3.15 1.02 .83 M10 .67 .20 33626 3.54 1.10 .87 M10 .67 .20 With Steel Shank With Stainless Steel Shank Part Number A B C D* E F 34101 1.57 .71 .59 M6 .51 .12 34102 1.97 .83 .67 M6 .51 .12 34103 2.56 .91 .75 M8 .59 .16 34104 3.15 1.02 .83 M10 .67 .20 34105 3.54 1.10 .87 M10 .67 .20 *Dimension in millimeters *Dimension in millimeters Part Number A B C D E F 33601 1.57 .71 .59 1/4-20 .51 5/32 33602 1.97 .83 .67 5/16-18 .59 3/16 33604 2.56 .91 .75 5/16-18 .67 1/4 33605 3.15 1.02 .83 3/8-16 .71 1/4 33606 3.54 1.10 .87 3/8-16 .71 5/16
