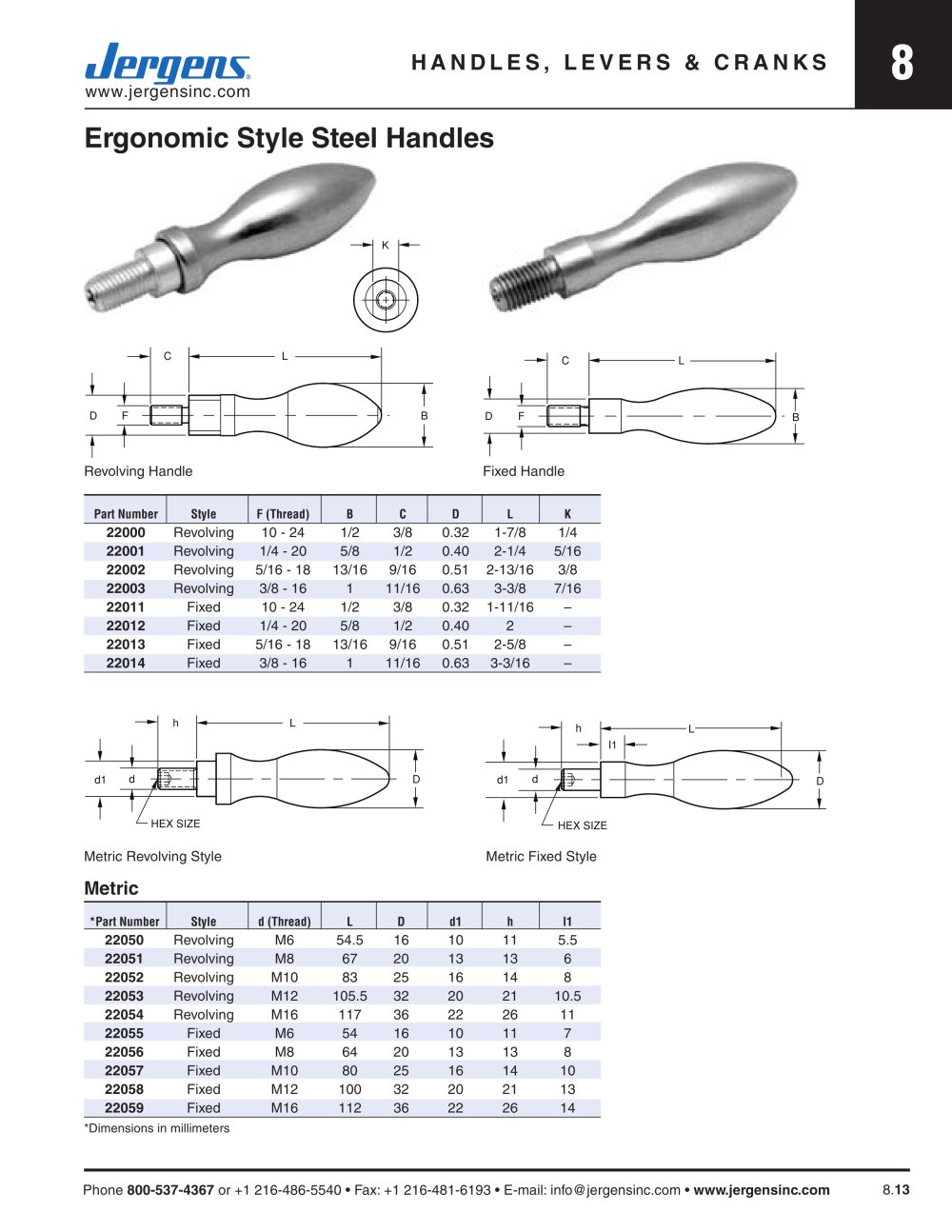

HANDLES, LEVERS & CRANKS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.13 h L d1 d HEX SIZE h L I1 d1 d D D HEX SIZE C L D F B K C L D F B h L d1 d HEX SIZE h L I1 d1 d D D HEX SIZE C L D F B K C L D F B Ergonomic Style Steel Handles Part Number Style F (Thread) B C D L K 22000 Revolving 10 - 24 1/2 3/8 0.32 1-7/8 1/4 22001 Revolving 1/4 - 20 5/8 1/2 0.40 2-1/4 5/16 22002 Revolving 5/16 - 18 13/16 9/16 0.51 2-13/16 3/8 22003 Revolving 3/8 - 16 1 11/16 0.63 3-3/8 7/16 22011 Fixed 10 - 24 1/2 3/8 0.32 1-11/16 – 22012 Fixed 1/4 - 20 5/8 1/2 0.40 2 – 22013 Fixed 5/16 - 18 13/16 9/16 0.51 2-5/8 – 22014 Fixed 3/8 - 16 1 11/16 0.63 3-3/16 – *Part Number Style d (Thread) L D d1 h l1 22050 Revolving M6 54.5 16 10 11 5.5 22051 Revolving M8 67 20 13 13 6 22052 Revolving M10 83 25 16 14 8 22053 Revolving M12 105.5 32 20 21 10.5 22054 Revolving M16 117 36 22 26 11 22055 Fixed M6 54 16 10 11 7 22056 Fixed M8 64 20 13 13 8 22057 Fixed M10 80 25 16 14 10 22058 Fixed M12 100 32 20 21 13 22059 Fixed M16 112 36 22 26 14 Metric Revolving Handle Fixed Handle Metric Revolving Style Metric Fixed Style h L d1 d HEX SIZE h L I1 d1 d D D HEX SIZE C L D F B K C L D F B h L d1 d HEX SIZE h L I1 d1 d D D HEX SIZE C L D F B K C L D F B h L d1 d HEX SIZE h L I1 d1 d D D HEX SIZE C L D F B K C L D F B *Dimensions in millimeters
