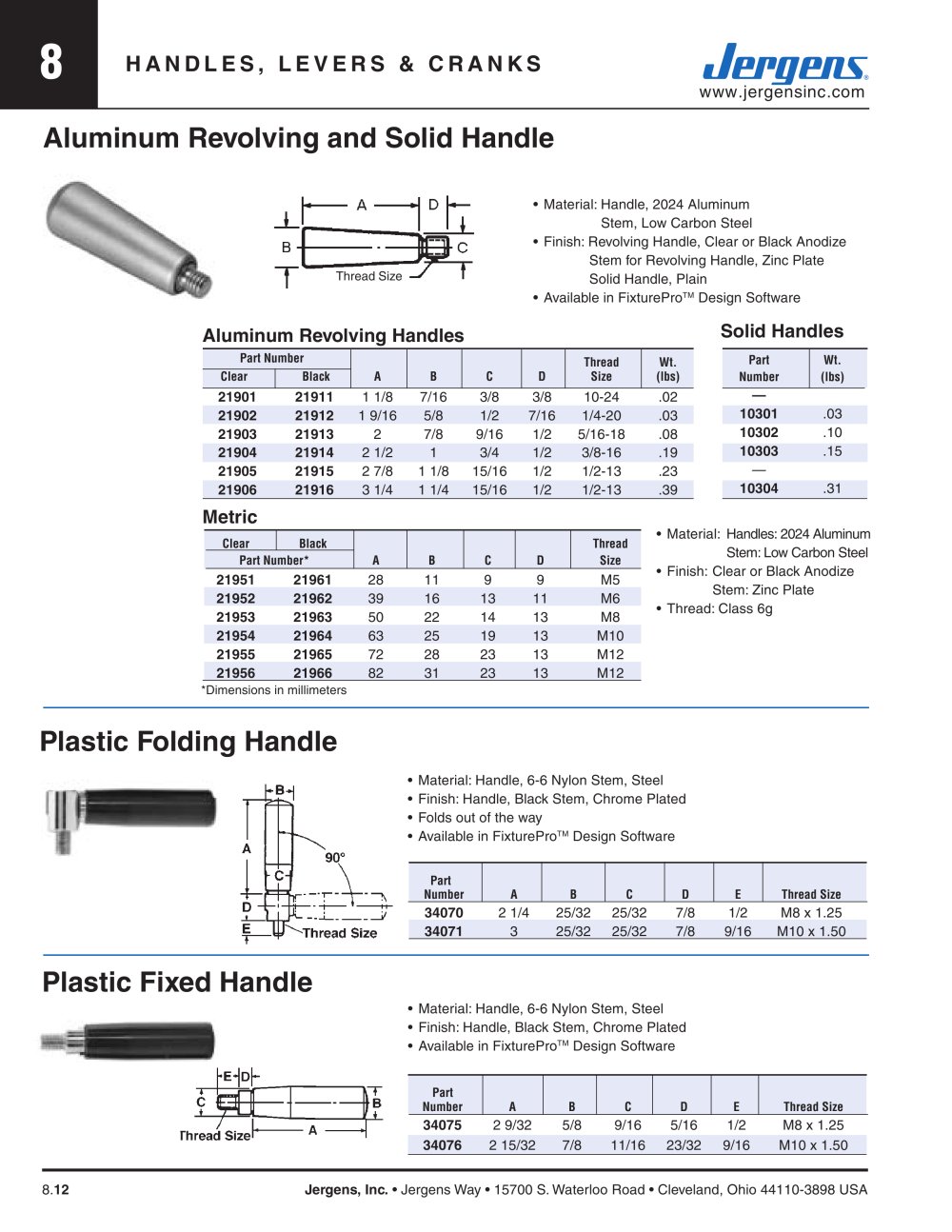

8 HANDLES, LEVERS & CRANKS www.jergensinc.com 8.12 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Solid Handles Part Wt. Number (lbs) — 10301 .03 10302 .10 10303 .15 — 10304 .31 Aluminum Revolving and Solid Handle • Material: Handle, 2024 Aluminum Stem, Low Carbon Steel • Finish: Revolving Handle, Clear or Black Anodize Stem for Revolving Handle, Zinc Plate Solid Handle, Plain • Available in FixtureProTM Design Software Thread Size Metric • Material: Handles: 2024 Aluminum Stem: Low Carbon Steel • Finish: Clear or Black Anodize Stem: Zinc Plate • Thread: Class 6g Part Number A B C D E Thread Size 34070 2 1/4 25/32 25/32 7/8 1/2 M8 x 1.25 34071 3 25/32 25/32 7/8 9/16 M10 x 1.50 • Material: Handle, 6-6 Nylon Stem, Steel • Finish: Handle, Black Stem, Chrome Plated • Available in FixtureProTM Design Software Plastic Folding Handle • Material: Handle, 6-6 Nylon Stem, Steel • Finish: Handle, Black Stem, Chrome Plated • Folds out of the way • Available in FixtureProTM Design Software Plastic Fixed Handle *Dimensions in millimeters Aluminum Revolving Handles Part Number Thread Wt. Clear Black A B C D Size (lbs) 21901 21911 1 1/8 7/16 3/8 3/8 10-24 .02 21902 21912 1 9/16 5/8 1/2 7/16 1/4-20 .03 21903 21913 2 7/8 9/16 1/2 5/16-18 .08 21904 21914 2 1/2 1 3/4 1/2 3/8-16 .19 21905 21915 2 7/8 1 1/8 15/16 1/2 1/2-13 .23 21906 21916 3 1/4 1 1/4 15/16 1/2 1/2-13 .39 Part Number A B C D E Thread Size 34075 2 9/32 5/8 9/16 5/16 1/2 M8 x 1.25 34076 2 15/32 7/8 11/16 23/32 9/16 M10 x 1.50 Clear Black Thread Part Number* A B C D Size 21951 21961 28 11 9 9 M5 21952 21962 39 16 13 11 M6 21953 21963 50 22 14 13 M8 21954 21964 63 25 19 13 M10 21955 21965 72 28 23 13 M12 21956 21966 82 31 23 13 M12
