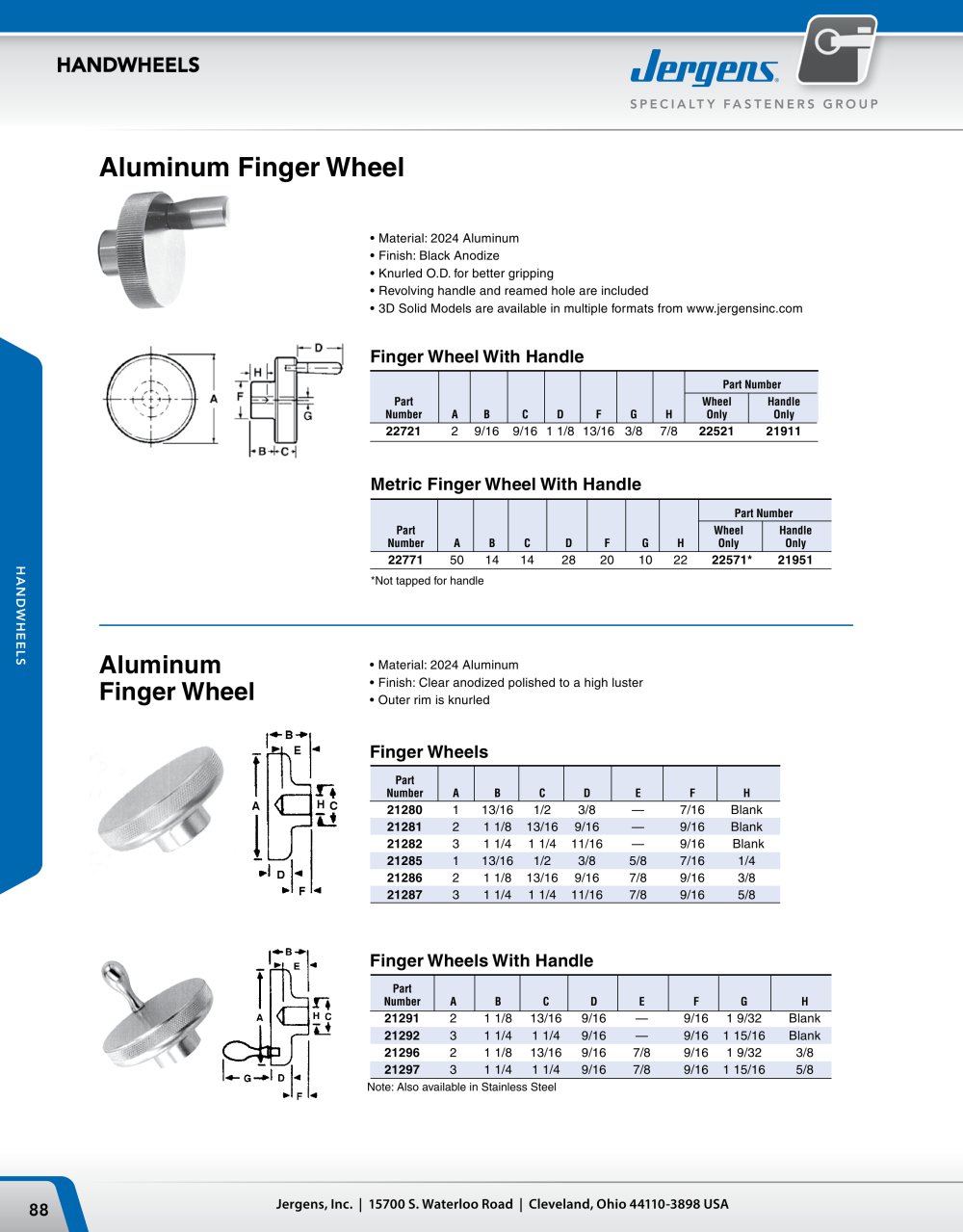

8 HANDWHEELS www.jergensinc.com 8.10 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Finger Wheels With Handle • Material: 2024 Aluminum • Finish: Clear anodized polished to a high luster • Outer rim is knurled Finger Wheels Metric Finger Wheel With Handle *Not tapped for handle Finger Wheel With Handle Aluminum Finger Wheel • Material: 2024 Aluminum • Finish: Black Anodize • Knurled O.D. for better gripping • Revolving handle and reamed hole are included • Available in FixtureProTM Design Software Aluminum Finger Wheel Part Number Part Wheel Handle Number A B C D F G H Only Only 22771 50 14 14 28 20 10 22 22571* 21951 Part Number Part Wheel Handle Number A B C D F G H Only Only 22721 2 9/16 9/16 1 1/8 13/16 3/8 7/8 22521 21911 Part Number A B C D E F H 21280 1 13/16 1/2 3/8 – 7/16 Blank 21281 2 1 1/8 13/16 9/16 – 9/16 Blank 21282 3 1 1/4 1 1/4 11/16 – 9/16 Blank 21285 1 13/16 1/2 3/8 5/8 7/16 1/4 21286 2 1 1/8 13/16 9/16 7/8 9/16 3/8 21287 3 1 1/4 1 1/4 11/16 7/8 9/16 5/8 Part Number A B C D E F G H 21291 2 1 1/8 13/16 9/16 – 9/16 1 9/32 Blank 21292 3 1 1/4 1 1/4 9/16 – 9/16 1 15/16 Blank 21296 2 1 1/8 13/16 9/16 7/8 9/16 1 9/32 3/8 21297 3 1 1/4 1 1/4 9/16 7/8 9/16 1 15/16 5/8 Note: Also available in Stainless Steel
