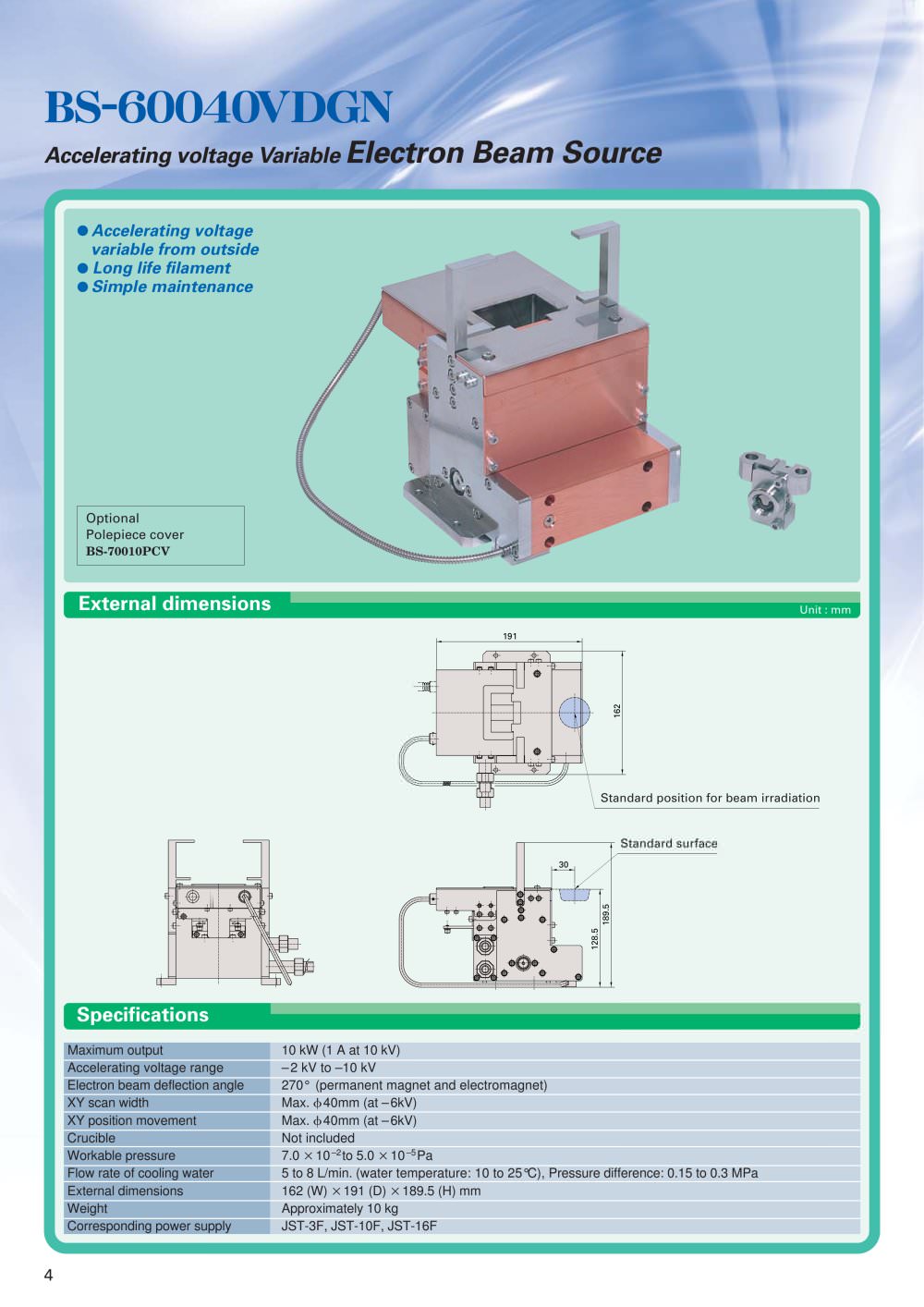

BS-60040VDGN

Accelerating voltage Variable Electron Beam Source

Optional Polepiece cover BS-70010PCV

External dimensions

191

Standard position for beam irradiation

T Standard surface

Specifications


	Maximum output
	Accelerating voltage range
	Electron beam deflection angle
	XY scan width
	XY position movement
	Crucible
	Workable pressure	7.0 x 10^-2to 5.0 x 10-⁵Pa
	Flow rate of cooling water	5 to 8 L/min. (water temperature: 10 to 25°C), Pressure difference: 0.15 to 0.3 MPa
	External dimensions	162 (W) x 191 (D) x 189.5 (H) mm
	Weight	Approximately 10 kg
	Corresponding power supply	JST-3F, JST-10F, JST-16F

^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
