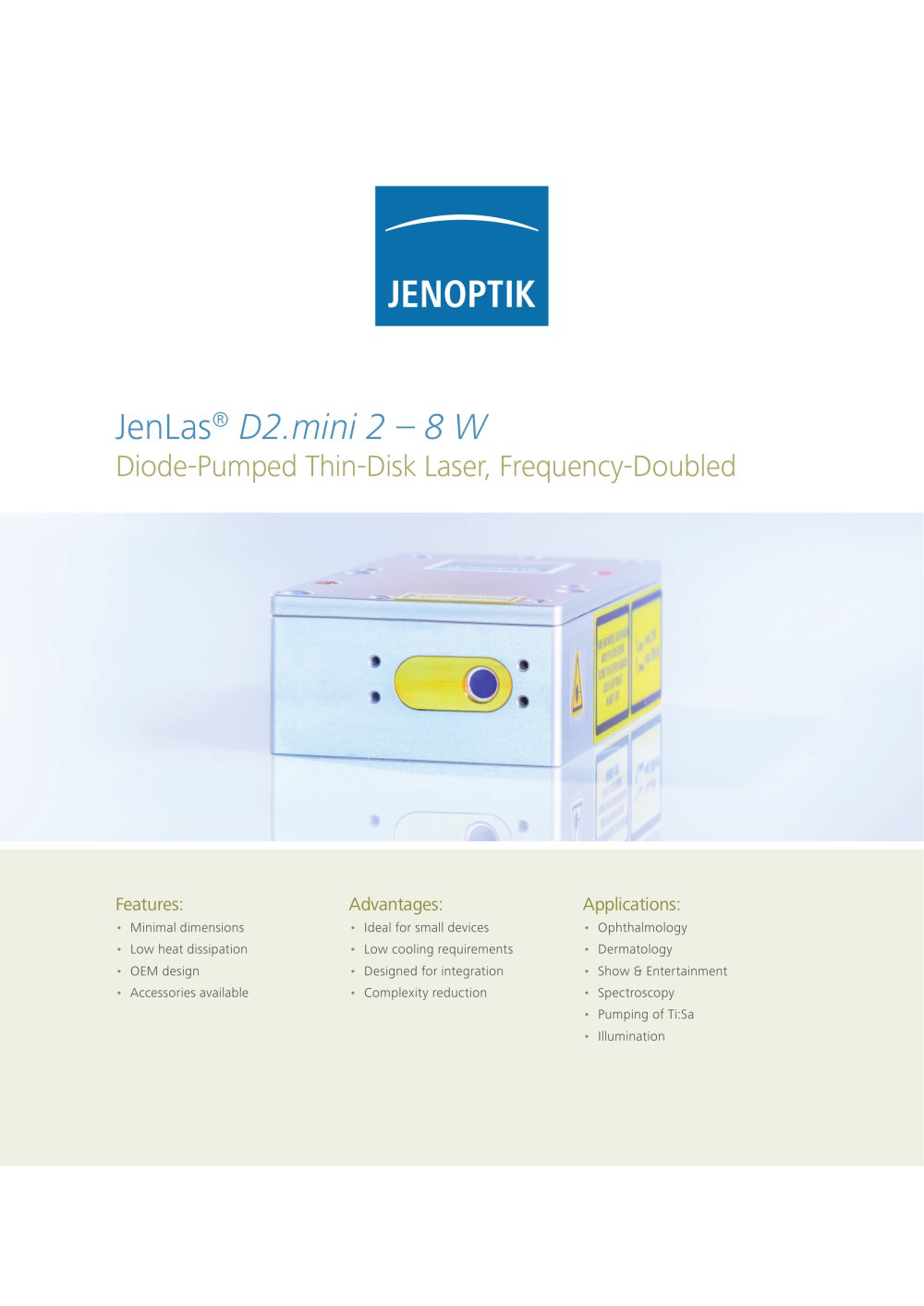

JenLas® D2.mini 2 – 8 W Diode-Pumped Thin-Disk Laser, Frequency-Doubled • Minimal dimensions • Ideal for small devices • Show & Entertainment • Accessories available • Complexity reduction • Spectroscopy • Pumpi

JenLas® D2.mini 2 – 8 W Diode-Pumped Thin-Disk Laser, Frequency-Doubled Specifications General Properties Beam diameter Beam divergence < 2 mrad (half angle) < 2 mrad (half angle) Pulse duration* Operating Conditions Ambient temperature Relative humidity Electrical Properties Electrical input Input power Mechanical Properties Dimensions (W x H x L) Weight Optional Features Fiber coupling unit includes - SMA connector for100 µm fiber-core - Aiming beam - Fiber detection & power monitor (redundant) * dependent on current supply ** in thermal equilibrium Laser head Beam Exit Cooling surface Bottom...

JenLas® D2.mini 3/8 W FC Diode-Pumped Thin-Disk Laser, Fiber-Coupled • Minimal dimensions • Ideal for small devices • Pilot beam • Power detection • Fiber detection sensors • Complexity reduction

JenLas® D2.mini 3/8 W FC Diode-Pumped Thin-Disk Laser, Fiber-Coupled Specifications Parameters Laser parameters see JenLas® D2.mini specification sheet Output power laser (cw) Coupling efficiency Pulse duration, modulation via diode laser current ~ 1 ms to cw (amplitude modulation up to 50 kHz possible) Fiber specifications Fiber connector Fiber eccentricity Fiber requirements suitable for ≥ 100 µm core diameter / NA ≥ 0,11 two inductive proximity sensors Pilot Laser Protection glass Electrical input data ( ) 2 V / typ. 20 A (at pump diode) Imax= 24 A Connector fiber coupling unit ( ) 2 V / typ....

JenLas® D2 Diode-Pumped Thin-Disk Laser - Frequency-Doubled • OEM design for easy integration • Thin-disk laser • Display engineering • High beam quality • Diode pumping • Pumping of solid-state lasers • Small dimensions • Frequency doubling • Light exposure of plastic materials • Medical engineering • Peltier cooling (TEC), system • Show applications contains no water

JenLas® D2 Diode-Pumped Thin-Disk Laser - Frequency-Doubled Specifications Parameters Laser Thin-disk laser, diode-pumped Laser class Ambient temperature cw operation Output power ~ 5 (coupling into fiber with 50 µm core possible) Pulse duration, switchable via diode laser current ~ 1 ms to cw (amplitude modulation up to 20 kHz possible) Beam diameter Electrical specifications Electrical input data 2 V, typically 23 A (at diode laser for 5 W) Input power Mechanical specifications Dimensions (W x H x L) For the operation of the laser, a suitable power supply must be used that complies with the...

JenLas® D2.8 Diode-Pumped Thin-Disk Laser - Frequency-Doubled • OEM design for easy integration • Thin-disk laser • Medical engineering • High beam quality • Diode pumping • Show applications • Small dimensions • Frequency doubling • Display engineering • Pumping of solid-state lasers • Peltier cooling (TEC), system • Light exposure of plastic materials contains no water

JenLas® D2.8 Diode-Pumped Thin-Disk Laser - Frequency-Doubled Specifications Parameters Laser Thin-disk laser, diode-pumped Laser class Ambient temperature cw operation Output power ~ 7 (coupling into fiber with 100 µm core possible) Pulse duration, switchable via diode laser current ~ 1 ms to cw (amplitude modulation up to 20 kHz possible) Beam diameter Electrical specifications Electrical input data 2 V, typically 32 A (at diode laser) Input power Mechanical specifications Dimensions (W x H x L) For the operation of the laser, a suitable power supply must be used that complies with the regulations...

Medical Laser System Features: Advantages: Applications: • Certified as medical • Short pulse duration Retinal photocoagulation electrical equipment Precise energy control • Trabeculoplasty • Aiming beam • Enabling short treatment times • Iridotomy

JenLas® MLS Green Medical Laser System Specifications General Properties Treatment Laser Frequency Doubled Nd:YVO 532 ±1 nm Output Power 60 mW … 3 W in 1 mW Steps, ±15 % stability in pulsed mode Operating mode Pulsed mode with pulse length 10 ms to 650 ms, min. pulse pause: 1 ms Rise time From 0 % to 90 % output power <1 ms Control Interfaces Programmable pulse duration and output power by means of RS232 or mini-USB interface and pulse trigger /ready/error signals by parallel interface (TTL) Pilot Laser Diode, 639 ± 5 nm , class 3R, 0…3 mW dimmable Fiber coupling - connector SMA-905, - suitable...

JenLas® D2.fs IR & Green Femtosecond Laser Customer Benefits: • Best beam quality • Non-thermal ablation with fs • Cold* micro processing like cutting, • Industrially proven ultra shortpulse laser based on thin disk technology • Extremely short pulses < 400 fs • Free adjustable pulse repetition rate • Optional module: fast beam modulator for pulse-on-demand & power control, SHG for green pulses enables new possibilities in manufacturing • Reduced cost of post-processing • Constant processing quality independent of linear absorption coefficients • Easy system integration and low maintenance drilling...

JenLas® D2.fs IR & Green Femtosecond Laser Specifications Laser Parameters JenLas® D2.fs with AOM & SHG module Maximum output power Maximum pulse energy Beam diameter Beam quality M Pulse repetition rate Fast beam modulator pulse picking, pulse energy attenuation Operating Conditions Ambient temperature Ambient relative humidity Chiller included (air/water and water/water versions available) Electrical Properties Power requirements Laser: 100 – 240 V AC (50/60 Hz) l < 0.9 kVA Chiller: 100/115/208/230 V AC (50/60 Hz) l < 1.4 kVA AOM & SHG module (option): 100 – 240 V AC (50/60 Hz) l < 0.2 kVA...
