James Walker

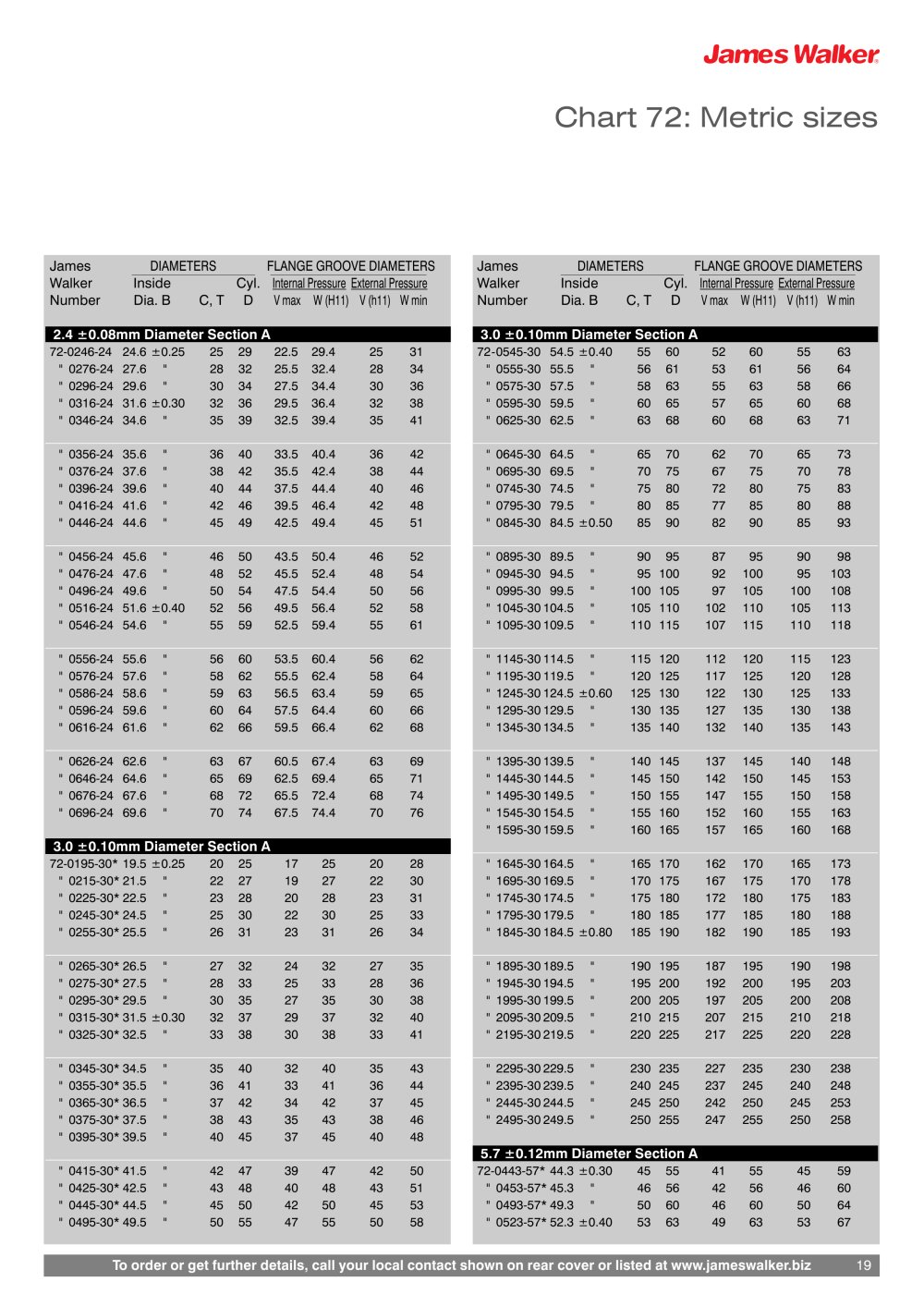

Chart 72: Metric sizes
James DIAMETERS FLANGE GROOVE DIAMETERS
Walker Inside Cyl. Internal Pressure External Pressure
Number Dia. B C, T D Vmax W (H11) V (h11) W min
James DIAMETERS FLANGE GROOVE DIAMETERS
Walker Inside
Cyl.
Internal Pressure External Pressure
Number Dia. B
C, T
D
V max
W (H11)
W min
3.0 ±0.10mm Diameter Section A
72-0545-30 54.5 ±0.40
55
60
52
60
55
63
" 0555-30 55.5 "
56
61
53
61
56
64
" 0575-30 57.5 "
58
63
55
63
58
66
" 0595-30 59.5 "
60
65
57
65
60
68
" 0625-30 62.5 "
63
68
60
68
63
71
" 0645-30 64.5 "
65
70
62
70
65
73
" 0695-30 69.5 "
70
75
67
75
70
78
" 0745-30 74.5 "
75
80
72
80
75
83
" 0795-30 79.5 "
80
85
77
85
80
88
" 0845-30 84.5 ±0.50
85
90
82
90
85
93
" 0895-30 89.5 "
90
95
87
95
90
98
" 0945-30 94.5 "
95
100
92
100
95
103
" 0995-30 99.5 "
100
105
97
105
100
108
" 1045-30 104.5 "
105
110
102
110
105
113
" 1095-30 109.5 "
110
115
107
115
110
118
" 1145-30 114.5 "
115
120
112
120
115
123
" 1195-30 119.5 "
120
125
117
125
120
128
" 1245-30 124.5 ±0.60
125
130
122
130
125
133
" 1295-30 129.5 "
130
135
127
135
130
138
" 1345-30 134.5 "
135
140
132
140
135
143
" 1395-30 139.5 "
140
145
137
145
140
148
" 1445-30 144.5 "
145
150
142
150
145
153
" 1495-30 149.5 "
150
155
147
155
150
158
" 1545-30 154.5 "
155
160
152
160
155
163
" 1595-30 159.5 "
160
165
157
165
160
168
" 1645-30 164.5 "
165
170
162
170
165
173
" 1695-30 169.5 "
170
175
167
175
170
178
" 1745-30 174.5 "
175
180
172
180
175
183
" 1795-30 179.5 "
180
185
177
185
180
188
" 1845-30 184.5 ±0.80
185
190
182
190
185
193
" 1895-30 189.5 "
190
195
187
195
190
198
" 1945-30 194.5 "
195
200
192
200
195
203
" 1995-30 199.5 "
200
205
197
205
200
208
" 2095-30 209.5 "
210
215
207
215
210
218
" 2195-30 219.5 "
220
225
217
225
220
228
" 2295-30 229.5 "
230
235
227
235
230
238
" 2395-30 239.5 "
240
245
237
245
240
248
" 2445-30 244.5 "
245
250
242
250
245
253
" 2495-30 249.5 "
250
255
247
255
250
258
5.7 ±0.12mm Diameter Section A
72-0443-57* 44.3 ±0.30
45
55
41
55
45
59
" 0453-57* 45.3 "
46
56
42
56
46
60
" 0493-57* 49.3 "
50
60
46
60
50
64
" 0523-57* 52.3 ±0.40
53
63
49
63
53
67
2.4 ±0.08mm Diameter Section A
72-0246-24
24.6 ±0.25
25
29
22.5
29.4
25
31
" 0276-24
27.6 "
28
32
25.5
32.4
28
34
" 0296-24
29.6 "
30
34
27.5
34.4
30
36
" 0316-24
31.6 ±0.30
32
36
29.5
36.4
32
38
" 0346-24
34.6 "
35
39
32.5
39.4
35
41
" 0356-24
35.6 "
36
40
33.5
40.4
36
42
" 0376-24
37.6 "
38
42
35.5
42.4
38
44
" 0396-24
39.6 "
40
44
37.5
44.4
40
46
" 0416-24
41.6 "
42
46
39.5
46.4
42
48
" 0446-24
44.6 "
45
49
42.5
49.4
45
51
" 0456-24
45.6 "
46
50
43.5
50.4
46
52
" 0476-24
47.6 "
48
52
45.5
52.4
48
54
" 0496-24
49.6 "
50
54
47.5
54.4
50
56
" 0516-24
51.6 ±0.40
52
56
49.5
56.4
52
58
" 0546-24
54.6 "
55
59
52.5
59.4
55
61
" 0556-24
55.6 "
56
60
53.5
60.4
56
62
" 0576-24
57.6 "
58
62
55.5
62.4
58
64
" 0586-24
58.6 "
59
63
56.5
63.4
59
65
" 0596-24
59.6 "
60
64
57.5
64.4
60
66
" 0616-24
61.6 "
62
66
59.5
66.4
62
68
" 0626-24
62.6 "
63
67
60.5
67.4
63
69
" 0646-24
64.6 "
65
69
62.5
69.4
65
71
" 0676-24
67.6 "
68
72
65.5
72.4
68
74
" 0696-24
69.6 "
70
74
67.5
74.4
70
76
3.0 ±0.10mm Diameter Section A
72-0195-30* 19.5 ±0.25
20
25
17
25
20
28
" 0215-30* 21.5 "
22
27
19
27
22
30
" 0225-30* 22.5 "
23
28
20
28
23
31
" 0245-30* 24.5 "
25
30
22
30
25
33
" 0255-30* 25.5 "
26
31
23
31
26
34
" 0265-30* 26.5 "
27
32
24
32
27
35
" 0275-30* 27.5 "
28
33
25
33
28
36
" 0295-30* 29.5 "
30
35
27
35
30
38
" 0315-30*31.5 ±0.30
32
37
29
37
32
40
" 0325-30* 32.5 "
33
38
30
38
33
41
" 0345-30* 34.5 "
35
40
32
40
35
43
" 0355-30* 35.5 "
36
41
33
41
36
44
" 0365-30* 36.5 "
37
42
34
42
37
45
" 0375-30* 37.5 "
38
43
35
43
38
46
" 0395-30* 39.5 "
40
45
37
45
40
48
" 0415-30* 41.5 "
42
47
39
47
42
50
" 0425-30* 42.5 "
43
48
40
48
43
51
" 0445-30* 44.5 "
45
50
42
50
45
53
" 0495-30* 49.5 "
50
55
47
55
50
58
To order or get further details, call your local contact shown on rear cover or listed at www.jameswalker.biz
19
