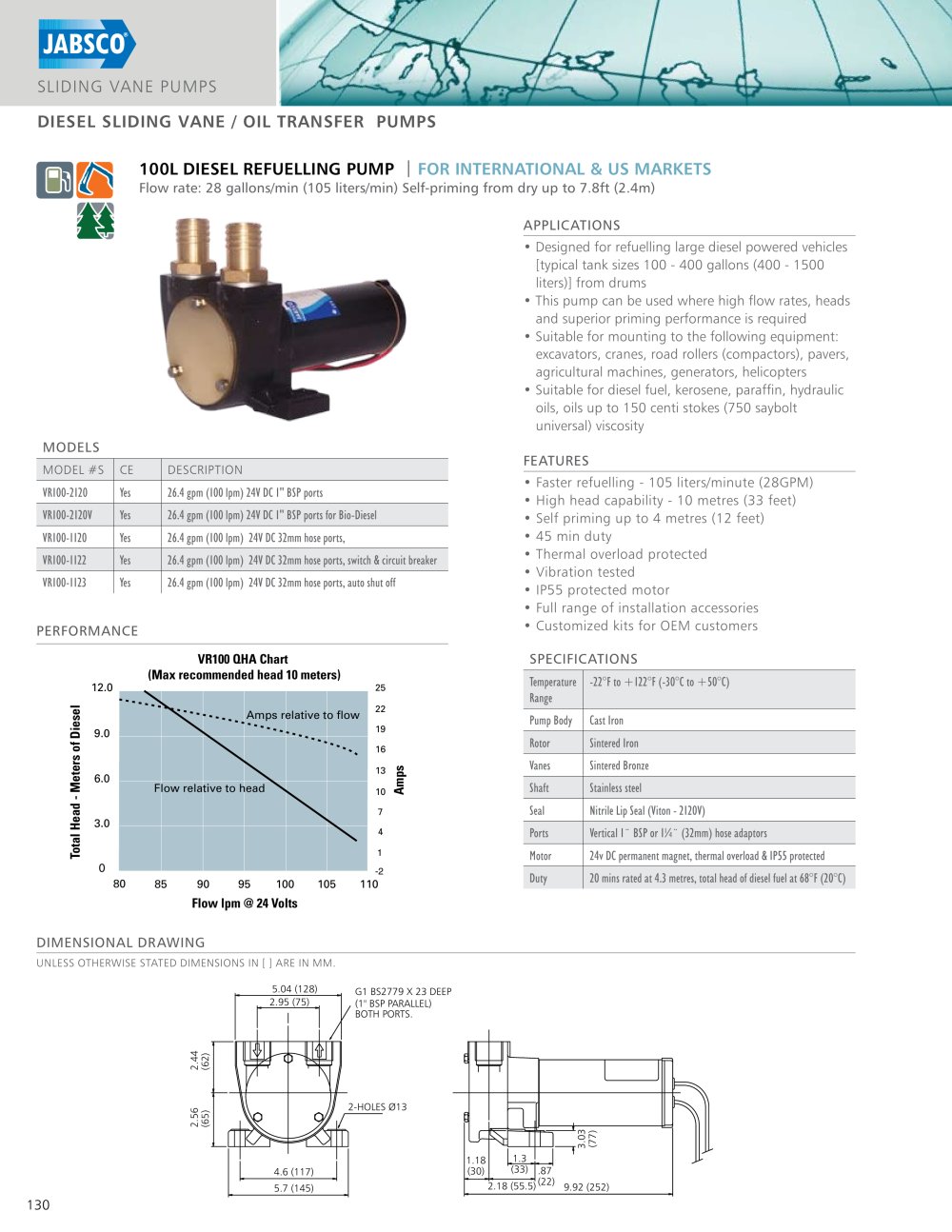

Sliding Vane Pumps - Jabsco - (Version JPG) - Page n° 9 - PDF Catalogue | Technical Documentation

SLIDING VANE PUMPS DIESEL SLIDING VANE / OIL TRANSFER PUMPS

100L DIESEL REFUELLING PUMP | FOR INTERNATIONAL & US MA

Flow rate: 28 gallons/min (105 liters/min) Self-priming from dry up to 7.8ft (2.4m)

APPLICATIONS

MODELS

• Désignée! for refuelling large diesel powered vehicles [typical tank sizes 100 - 400 gallons (400 - 1500 liters)] from drums

• This pump can be used where high flow rates, heads and superior priming performance is required

• Suitable for mounting to the following equipment: excavators, cranes, road rollers (compactors), pavers, agricultural machines, generators, helicopters

• Suitable for diesel fuel, kérosène, paraffin, hydraulic oils, oils up to 150 centi stokes (750 saybolt universal) viscosity

FEATURES

• Faster refuelling - 105 liters/minute (28GPM)

• High head capability - 10 mètres (33 feet)

• Self priming up to 4 mètres (12 feet)

• 45 min duty

• Thermal overload protected

• Vibration tested

• IP55 protected motor

• Full range of installation accessories

• Customized kits for OEM customers

SPECIFICATIONS


MODEL #S	CE	DESCRIPTION
VRI00-2I20	Yes	26.4 gpm (I00 Ipm) 24V DC I" BSP ports
VRI00-2I20V	Yes	26.4 gpm (100 lpm) 24V DC 1" BSP ports for Bio-Diesel
VRI00-II20	Yes	26.4 gpm (100 lpm) 24V DC 32mm hose ports,
VRI00-II22	Yes	26.4 gpm (100 lpm) 24V DC 32mm hose ports, switch & circuit breaker
VRI00-II23	Yes	26.4 gpm (100 lpm) 24V DC 32mm hose ports, auto shut off

PERFORMANCE

VR100 QHA Chart (Max recommended head 10 meters)

12.0


	Temperature Range	-22°F to +I22°F (-30°C to +50°C)
	Pump Body	Cast Iron
	Rotor	Sintered Iron
	Vanes	Sintered Bronze
	Shaft	Stainless steel
	Seal	Nitrile Lip Seal (Viton - 2I20V)
	Ports	Vertical I" BSP or I!4° (32mm) hose adaptors
	Motor	24v DC permanent magnet, thermal overload & IP55 protected
	Duty	20 mins rated at 4.3 metres, total head of diesel fuel at 68°F (20°C)


		.......	Amps r	elative t	o flow
				**••«
F	ow rela	tive to h	ead >
					\

22 19 16 13 10 7 4 1

s p

m A

9.0

■o

"ce

6.0

3.0

85 90 95 100

Flow lpm @ 24 Volts

105

-2

110

DIMENSIONAL DRAWING

UNLESS OTHERWISE STATED DIMENSIONS IN [ ] ARE IN MM.

5.04 (128)

G1 BS2779 X 23 DEEP . . (1"" BSP PARALLEL) y BOTH PORTS.

2-HOLES 013

1.18

(30)

1.3

(33)

.87

(22)

9.92 (252)

2.18 (55.5)

130
