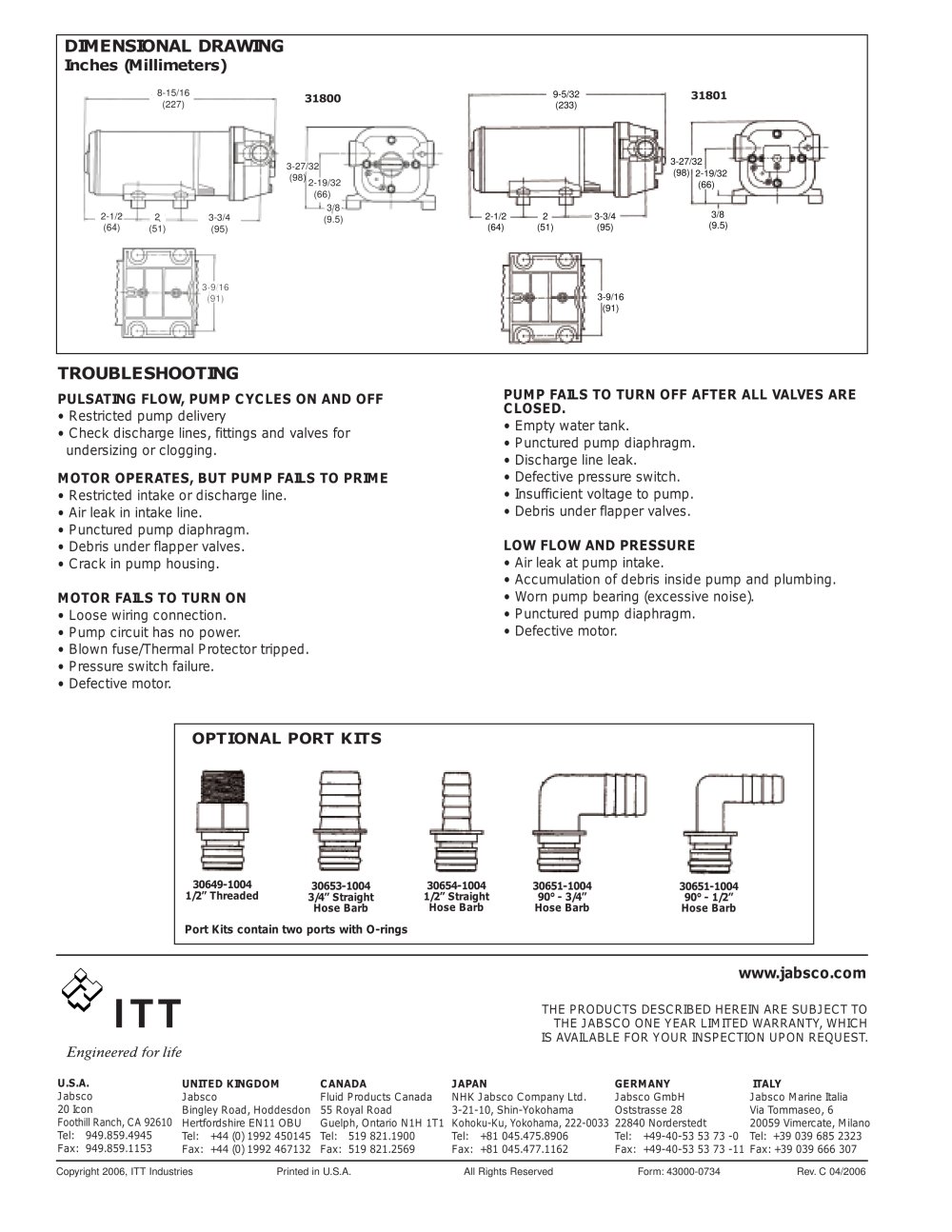

TROUBLESHOOTING PULSATING FLOW, PUMP CYCLES ON AND OFF • Restricted pump delivery • Check discharge lines, fittings and valves for undersizing or clogging. MOTOR OPERATES, BUT PUMP FAILS TO PRIME • Restricted intake or discharge line. • Air leak in intake line. • Punctured pump diaphragm. • Debris under flapper valves. • Crack in pump housing. MOTOR FAILS TO TURN ON • Loose wiring connection. • Pump circuit has no power. • Blown fuse/Thermal Protector tripped. • Pressure switch failure. • Defective motor. PUMP FAILS TO TURN OFF AFTER ALL VALVES ARE CLOSED. • Empty water tank. • Punctured pump diaphragm. • Discharge line leak. • Defective pressure switch. • Insufficient voltage to pump. • Debris under flapper valves. LOW FLOW AND PRESSURE • Air leak at pump intake. • Accumulation of debris inside pump and plumbing. • Worn pump bearing (excessive noise). • Punctured pump diaphragm. • Defective motor. THE PRODUCTS DESCRIBED HEREIN ARE SUBJECT TO THE JABSCO ONE YEAR LIMITED WARRANTY, WHICH IS AVAILABLE FOR YOUR INSPECTION UPON REQUEST. 9-5/32 (233) 3-9/16 (91) 2-1/2 (64) 2 (51) 3-3/4 (95) 3-27/32 (98) 2-19/32 (66) 3/8 (9.5) Copyright 2006, ITT Industries Printed in U.S.A. All Rights Reserved Form: 43000-0734 Rev. C 04/2006 DIMENSIONAL DRAWING Inches (Millimeters) www.jabsco.com 2-19/32 (66) 3-27/32 (98) 8-15/16 (227) 2-1/2 (64) 2 (51) 3-9/16 (91) 3-3/4 (95) 3/8 (9.5) 31800 31801 U.S.A. Jabsco 20 Icon Foothill Ranch, CA 92610 Tel: 949.859.4945 Fax: 949.859.1153 UNITED KINGDOM Jabsco Bingley Road, Hoddesdon Hertfordshire EN11 OBU Tel: +44 (0) 1992 450145 Fax: +44 (0) 1992 467132 CANADA Fluid Products Canada 55 Royal Road Guelph, Ontario N1H 1T1 Tel: 519 821.1900 Fax: 519 821.2569 JAPAN NHK Jabsco Company Ltd. 3-21-10, Shin-Yokohama Kohoku-Ku, Yokohama, 222-0033 Tel: +81 045.475.8906 Fax: +81 045.477.1162 GERMANY Jabsco GmbH Oststrasse 28 22840 Norderstedt Tel: +49-40-53 53 73 -0 Fax: +49-40-53 53 73 -11 ITALY Jabsco Marine Italia Via Tommaseo, 6 20059 Vimercate, Milano Tel: +39 039 685 2323 Fax: +39 039 666 307 OPTIONAL PORT KITS 30649-1004 1/2” Threaded 30653-1004 3/4” Straight Hose Barb 30654-1004 1/2” Straight Hose Barb Port Kits contain two ports with O-rings 30651-1004 90° - 3/4” Hose Barb 30651-1004 90° - 1/2” Hose Barb
