MAINTENANCE
Check wires and connections to be sure corrosion is not
adding additional resistance to the motor circuit and
causing a low voltage condition at the motor. Low
voltage can inhibit motor from starting and cause fuse to
blow. Full voltage should be available to prevent motor
damage.
If
pump is to be in freezing temperatures, drain by
loosening end cover screws.
ASSEMBLY
1. Lubricate seal with water and position it in seal bore
with lip, or hollowed-out side of seal, pointing
towards the rotor/vane bore. With a 1/2" diameter
dowel, push against the shaft seal into its bore until
it contacts the bottom.
2. Lubricate motor shaft and install body on motor.
3. Aligning flat in rotor with flat on motor shaft, install
rotor. Install vanes in vane slots of rotor.
4. Install O-ring, end cover and end cover screws.
7-7/8"
(200)
2-3/8"
(60)
4-3/4"
(120)
4-5/16"
(109)
1-3/4"
(44)
3-9/16"
(90)
1-25/32"
(45)
2"
(51)
1-11/16"
(43)
1/2-14 NPT
(Female)
Black (Negative)
9" Long, 14 Gage
Orange (Positive)
9" Long, 14 Gage
ROTATIO N
DISCHARGE

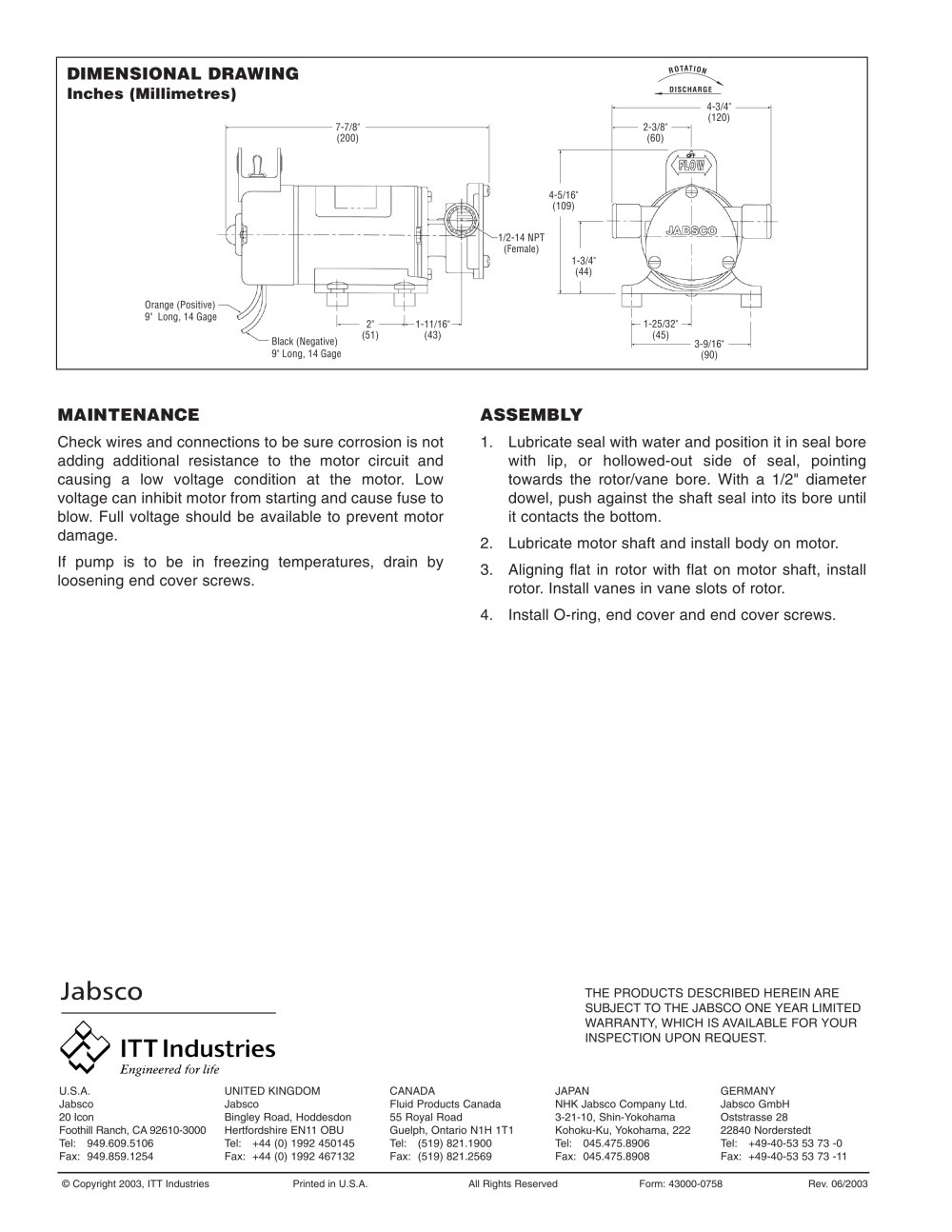

DIMENSIONAL DRAWING
Inches (Millimetres)
THE PRODUCTS DESCRIBED HEREIN ARE
SUBJECT TO THE JABSCO ONE YEAR LIMITED
WARRANTY, WHICH IS AVAILABLE FOR YOUR
INSPECTION UPON REQUEST.
