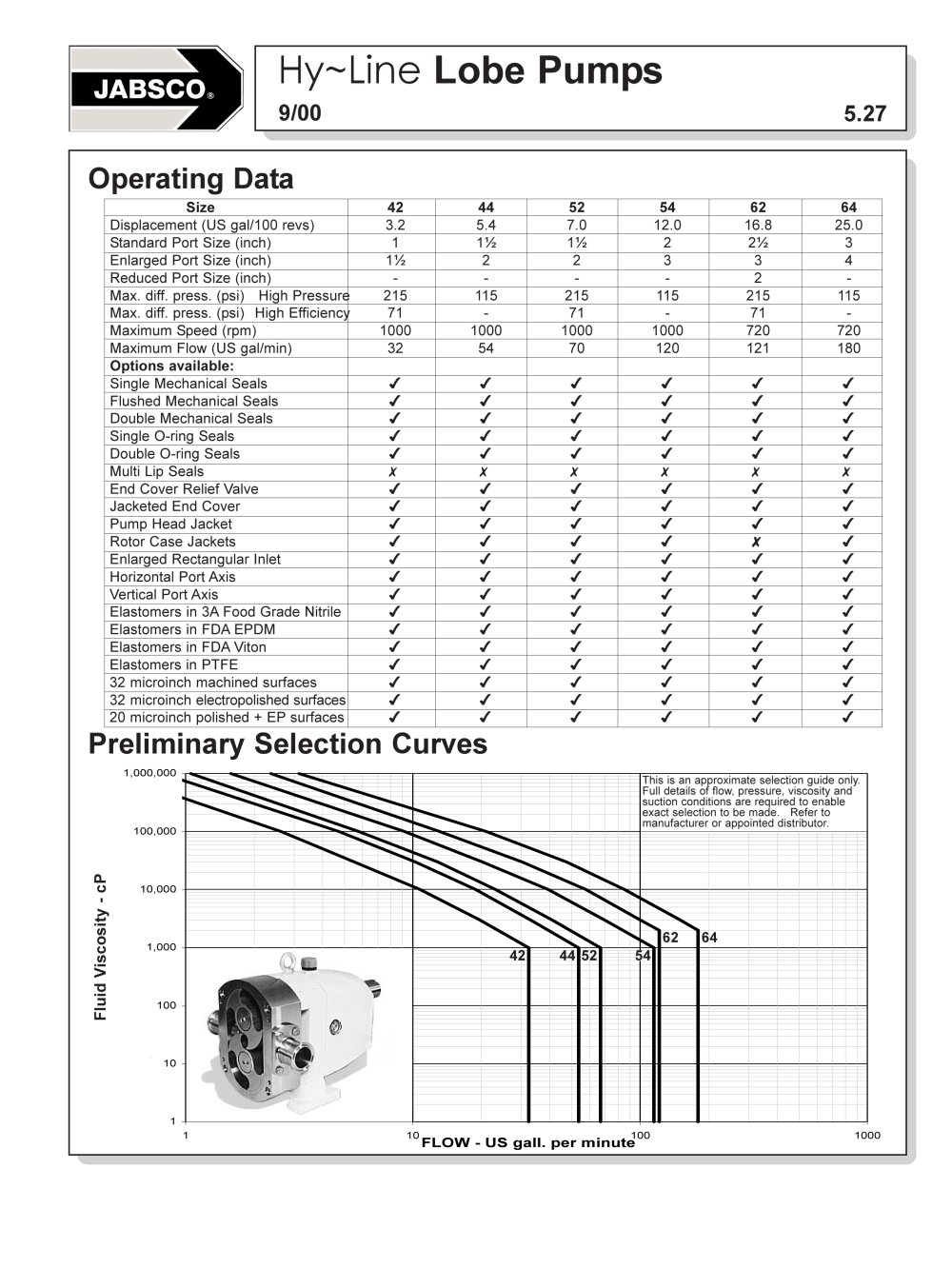

9/00 5.27 Hy~Line Lobe Pumps 1 10 100 1,000 10,000 100,000 1,000,000 1 10 100 1000 FLOW - US gall. per minute Fluid Viscosity - cP 42 44 52 62 64 Size 42 44 52 54 62 64 Displacement (US gal/100 revs) 3.2 5.4 7.0 12.0 16.8 25.0 Standard Port Size (inch) 1 1½ 1½ 2 2½ 3 Enlarged Port Size (inch) 1½ 2 2 3 3 4 Reduced Port Size (inch) - - - - 2 - Max. diff. press. (psi) High Pressure 215 115 215 115 215 115 Max. diff. press. (psi) High Efficiency 71 - 71 - 71 - Maximum Speed (rpm) 1000 1000 1000 1000 720 720 Maximum Flow (US gal/min) 32 54 70 120 121 180 Options available: Single Mechanical Seals 4 4 4 4 4 4 Flushed Mechanical Seals 4 4 4 4 4 4 Double Mechanical Seals 4 4 4 4 4 4 Single O-ring Seals 4 4 4 4 4 4 Double O-ring Seals 4 4 4 4 4 4 Multi Lip Seals 7 7 7 7 7 7 End Cover Relief Valve 4 4 4 4 4 4 Jacketed End Cover 4 4 4 4 4 4 Pump Head Jacket 4 4 4 4 4 4 Rotor Case Jackets 4 4 4 4 8 4 Enlarged Rectangular Inlet 4 4 4 4 4 4 Horizontal Port Axis 4 4 4 4 4 4 Vertical Port Axis 4 4 4 4 4 4 Elastomers in 3A Food Grade Nitrile 4 4 4 4 4 4 Elastomers in FDA EPDM 4 4 4 4 4 4 Elastomers in FDA Viton 4 4 4 4 4 4 Elastomers in PTFE 4 4 4 4 4 4 32 microinch machined surfaces 4 4 4 4 4 4 32 microinch electropolished surfaces 4 4 4 4 4 4 20 microinch polished + EP surfaces 4 4 4 4 4 4 Operating Data This is an approximate selection guide only. Full details of flow, pressure, viscosity and suction conditions are required to enable exact selection to be made. Refer to manufacturer or appointed distributor. Preliminary Selection Curves 54 Fluid Viscosity - cP
