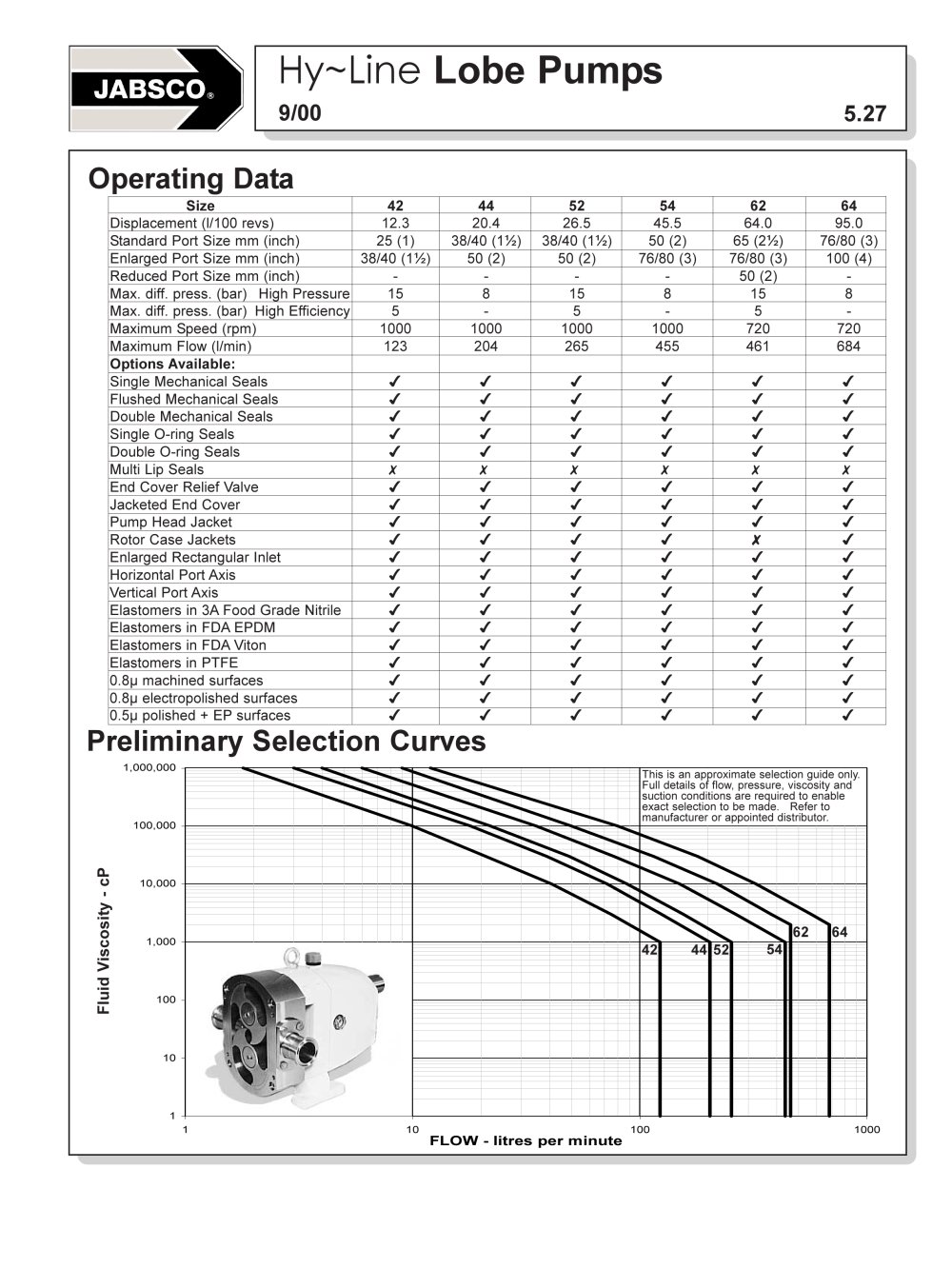

1 10 100 1,000 10,000 100,000 1,000,000 1 10 100 1000 FLOW - litres per minute Fluid Viscosity - cP 42 44 52 54 62 64 9/00 5.27 Hy~Line Lobe Pumps Operating Data This is an approximate selection guide only. Full details of flow, pressure, viscosity and suction conditions are required to enable exact selection to be made. Refer to manufacturer or appointed distributor. Preliminary Selection Curves Size 42 44 52 54 62 64 Displacement (l/100 revs) 12.3 20.4 26.5 45.5 64.0 95.0 Standard Port Size mm (inch) 25 (1) 38/40 (1½) 38/40 (1½) 50 (2) 65 (2½) 76/80 (3) Enlarged Port Size mm (inch) 38/40 (1½) 50 (2) 50 (2) 76/80 (3) 76/80 (3) 100 (4) Reduced Port Size mm (inch) - - - - 50 (2) - Max. diff. press. (bar) High Pressure 15 8 15 8 15 8 Max. diff. press. (bar) High Efficiency 5 - 5 - 5 - Maximum Speed (rpm) 1000 1000 1000 1000 720 720 Maximum Flow (l/min) 123 204 265 455 461 684 Options Available: Single Mechanical Seals 4 4 4 4 4 4 Flushed Mechanical Seals 4 4 4 4 4 4 Double Mechanical Seals 4 4 4 4 4 4 Single O-ring Seals 4 4 4 4 4 4 Double O-ring Seals 4 4 4 4 4 4 Multi Lip Seals 7 7 7 7 7 7 End Cover Relief Valve 4 4 4 4 4 4 Jacketed End Cover 4 4 4 4 4 4 Pump Head Jacket 4 4 4 4 4 4 Rotor Case Jackets 4 4 4 4 8 4 Enlarged Rectangular Inlet 4 4 4 4 4 4 Horizontal Port Axis 4 4 4 4 4 4 Vertical Port Axis 4 4 4 4 4 4 Elastomers in 3A Food Grade Nitrile 4 4 4 4 4 4 Elastomers in FDA EPDM 4 4 4 4 4 4 Elastomers in FDA Viton 4 4 4 4 4 4 Elastomers in PTFE 4 4 4 4 4 4 0.8µ machined surfaces 4 4 4 4 4 4 0.8µ electropolished surfaces 4 4 4 4 4 4 0.5µ polished + EP surfaces 4 4 4 4 4 4 Fluid Viscosity - cP
