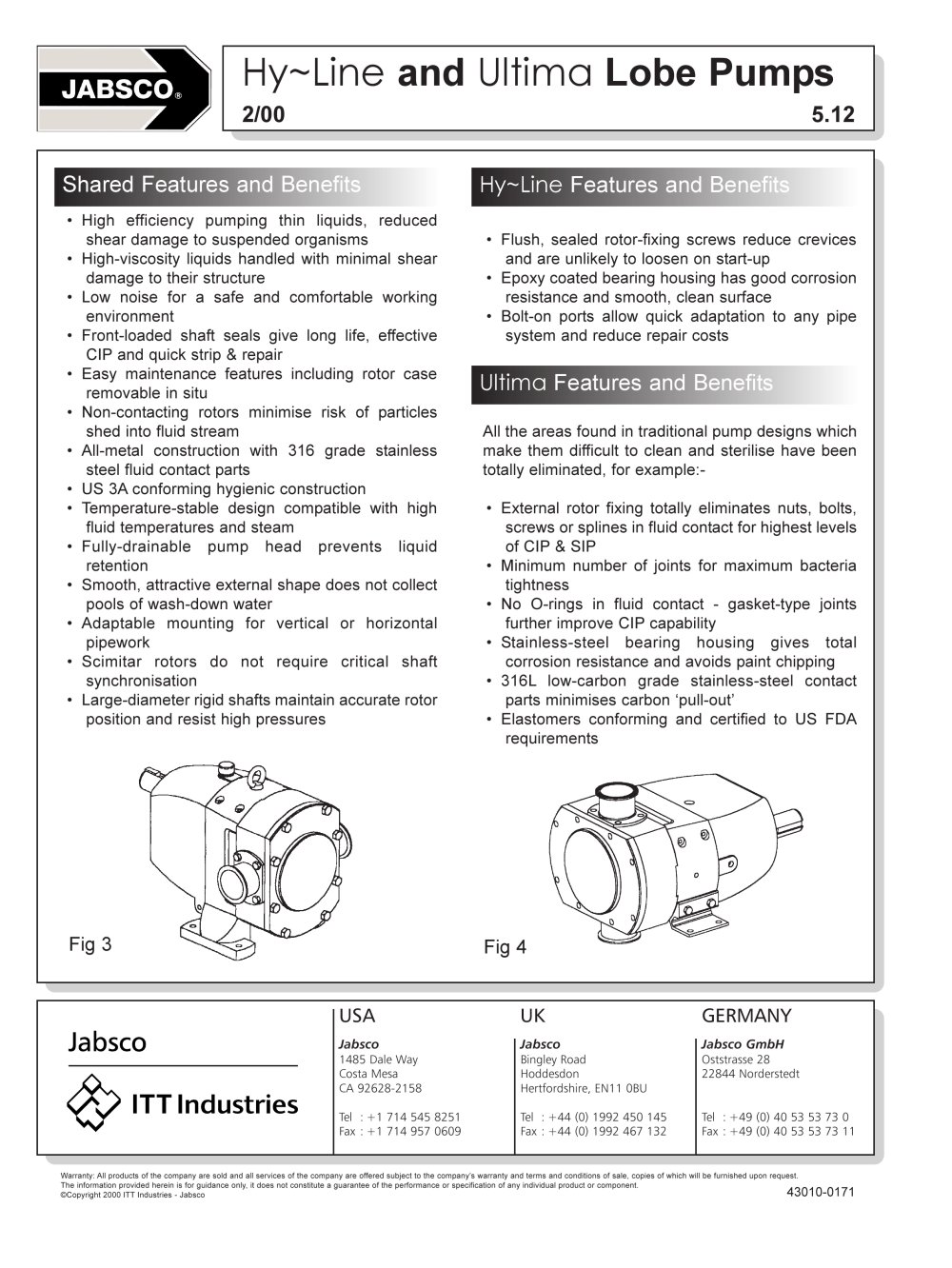

USA UK GERMANY Jabsco Jabsco Jabsco GmbH 1485 Dale Way Bingley Road Oststrasse 28 Costa Mesa Hoddesdon 22844 Norderstedt CA 92628-2158 Hertfordshire, EN11 0BU Tel : +1 714 545 8251 Tel : +44 (0) 1992 450 145 Tel : +49 (0) 40 53 53 73 0 Fax : +1 714 957 0609 Fax : +44 (0) 1992 467 132 Fax : +49 (0) 40 53 53 73 11 Warranty: All products of the company are sold and all services of the company are offered subject to the company.s warranty and terms and conditions of sale, copies of which will be furnished upon request. The information provided herein is for guidance only, it does not constitute a guarantee of the performance or specification of any individual product or component. ©Copyright 2000 ITT Industries - Jabsco 43010-0171 . High efficiency pumping thin liquids, reduced shear damage to suspended organisms . High-viscosity liquids handled with minimal shear damage to their structure . Low noise for a safe and comfortable working environment . Front-loaded shaft seals give long life, effective CIP and quick strip & repair . Easy maintenance features including rotor case removable in situ . Non-contacting rotors minimise risk of particles shed into fluid stream . All-metal construction with 316 grade stainless steel fluid contact parts . US 3A conforming hygienic construction . Temperature-stable design compatible with high fluid temperatures and steam . Fully-drainable pump head prevents liquid retention . Smooth, attractive external shape does not collect pools of wash-down water . Adaptable mounting for vertical or horizontal pipework . Scimitar rotors do not require critical shaft synchronisation . Large-diameter rigid shafts maintain accurate rotor position and resist high pressures . Flush, sealed rotor-fixing screws reduce crevices and are unlikely to loosen on start-up . Epoxy coated bearing housing has good corrosion resistance and smooth, clean surface . Bolt-on ports allow quick adaptation to any pipe system and reduce repair costs All the areas found in traditional pump designs which make them difficult to clean and sterilise have been totally eliminated, for example:- . External rotor fixing totally eliminates nuts, bolts, screws or splines in fluid contact for highest levels of CIP & SIP . Minimum number of joints for maximum bacteria tightness . No O-rings in fluid contact - gasket-type joints further improve CIP capability . Stainless-steel bearing housing gives total corrosion resistance and avoids paint chipping . 316L low-carbon grade stainless-steel contact parts minimises carbon .pull-out. . Elastomers conforming and certified to US FDA requirements 2/00 5.12 Hy~Line and Ultima Lobe Pumps Ultima Features and Benefits Shared Features and Benefits Hy~Line Features and Benefits Fig 3 Fig 4
