GEAR PUPPY - Jabsco - #2

Text version of the page

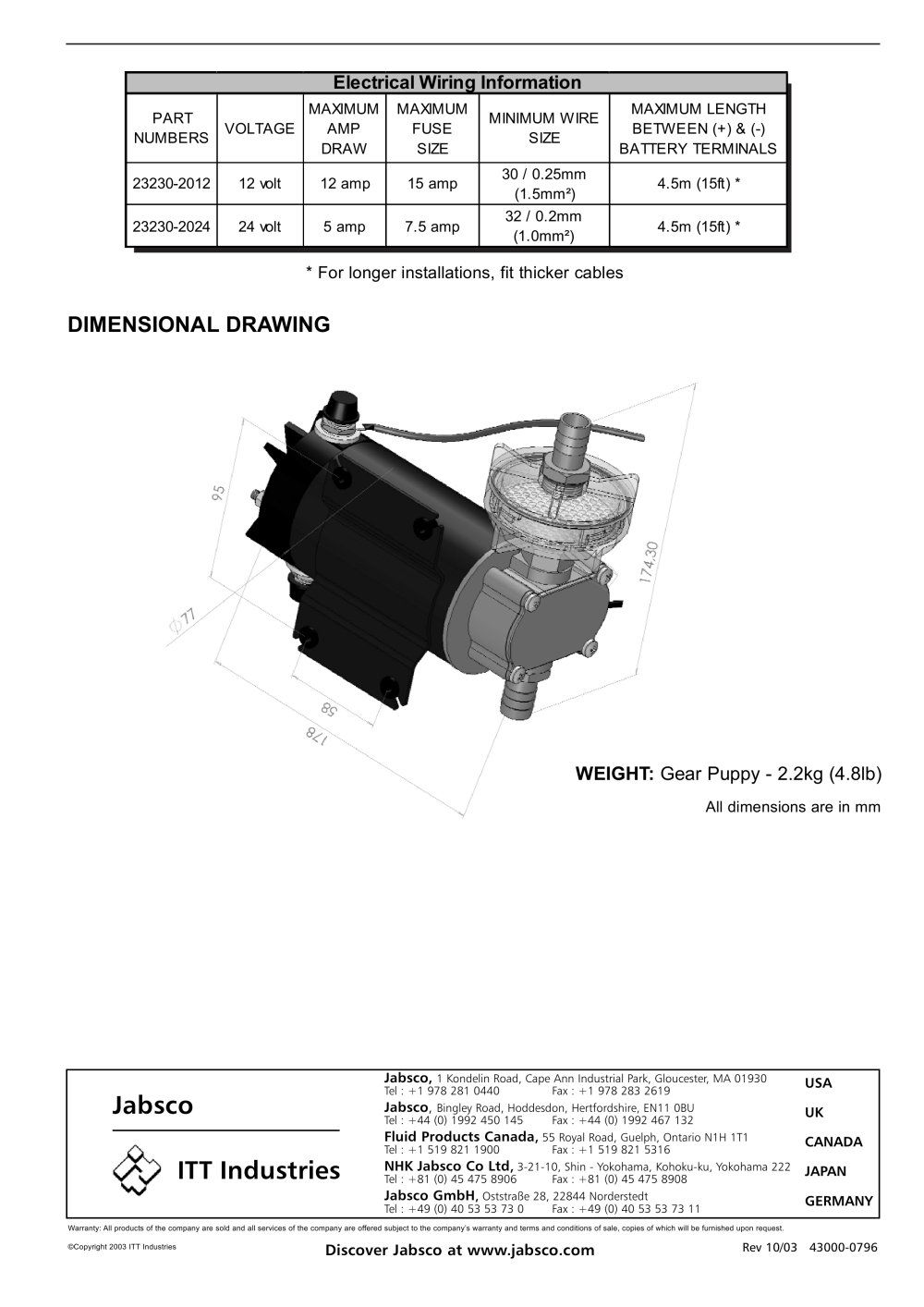

PART NUMBERS VOLTAGE MAXIMUM AMP DRAW MAXIMUM FUSE SIZE MINIMUM WIRE SIZE MAXIMUM LENGTH BETWEEN (+) & (-) BATTERY TERMINALS 23230-2012 12 volt 12 amp 15 amp 30 / 0.25mm (1.5mm²) 4.5m (15ft) * 23230-2024 24 volt 5 amp 7.5 amp 32 / 0.2mm (1.0mm²) 4.5m (15ft) * Electrical Wiring Information DIMENSIONAL DRAWING WEIGHT: Gear Puppy - 2.2kg (4.8lb) Warranty: All products of the company are sold and all services of the company are offered subject to the company’s warranty and terms and conditions of sale, copies of which will be furnished upon request. ©Copyright 2003 ITT Industries Jabsco ITT Industries Jabsco, 1 Kondelin Road, Cape Ann Industrial Park, Gloucester, MA 01930 Tel : +1 978 281 0440 Fax : +1 978 283 2619 Jabsco, Bingley Road, Hoddesdon, Hertfordshire, EN11 0BU Tel : +44 (0) 1992 450 145 Fax : +44 (0) 1992 467 132 Fluid Products Canada, 55 Royal Road, Guelph, Ontario N1H 1T1 Tel : +1 519 821 1900 Fax : +1 519 821 5316 NHK Jabsco Co Ltd, 3-21-10, Shin - Yokohama, Kohoku-ku, Yokohama 222 Tel : +81 (0) 45 475 8906 Fax : +81 (0) 45 475 8908 Jabsco GmbH, Oststraße 28, 22844 Norderstedt Tel : +49 (0) 40 53 53 73 0 Fax : +49 (0) 40 53 53 73 11 USA UK CANADA JAPAN GERMANY Discover Jabsco at www.jabsco.com * For longer installations, fit thicker cables All dimensions are in mm Rev 10/03 43000-0796
