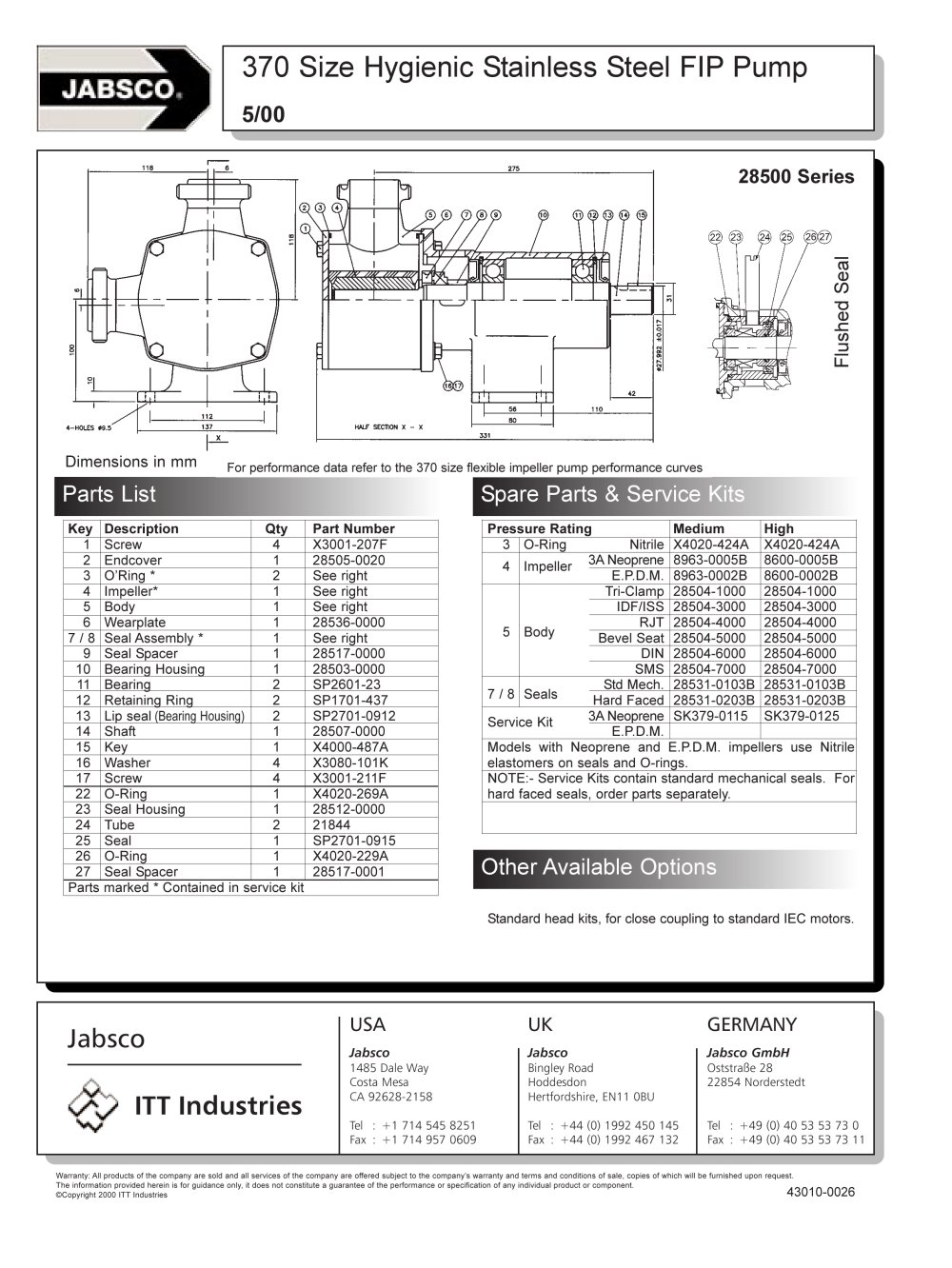

370 Size Hygienic Stainless Steel FIP Pump - Jabsco - #2

Text version of the page

Warranty: All products of the company are sold and all services of the company are offered subject to the company.s warranty and terms and conditions of sale, copies of which will be furnished upon request. The information provided herein is for guidance only, it does not constitute a guarantee of the performance or specification of any individual product or component. ©Copyright 2000 ITT Industries 43010-0026 Jabsco ITT Industries USA UK GERMANY Jabsco Jabsco Jabsco GmbH 1485 Dale Way Bingley Road Oststraße 28 Costa Mesa Hoddesdon 22854 Norderstedt CA 92628-2158 Hertfordshire, EN11 0BU Tel : +1 714 545 8251 Tel : +44 (0) 1992 450 145 Tel : +49 (0) 40 53 53 73 0 Fax : +1 714 957 0609 Fax : +44 (0) 1992 467 132 Fax : +49 (0) 40 53 53 73 11 Key Description Qty Part Number 1 Screw 4 X3001-207F 2 Endcover 1 28505-0020 3 O.Ring * 2 See right 4 Impeller* 1 See right 5 Body 1 See right 6 Wearplate 1 28536-0000 7 / 8 Seal Assembly * 1 See right 9 Seal Spacer 1 28517-0000 10 Bearing Housing 1 28503-0000 11 Bearing 2 SP2601-23 12 Retaining Ring 2 SP1701-437 13 Lip seal (Bearing Housing) 2 SP2701-0912 14 Shaft 1 28507-0000 15 Key 1 X4000-487A 16 Washer 4 X3080-101K 17 Screw 4 X3001-211F 22 O-Ring 1 X4020-269A 23 Seal Housing 1 28512-0000 24 Tube 2 21844 25 Seal 1 SP2701-0915 26 O-Ring 1 X4020-229A 27 Seal Spacer 1 28517-0001 Parts marked * Contained in service kit Pressure Rating Medium High 3 O-Ring Nitrile X4020-424A X4020-424A 4 Impeller 3A Neoprene 8963-0005B 8600-0005B E.P.D.M. 8963-0002B 8600-0002B Tri-Clamp 28504-1000 28504-1000 IDF/ISS 28504-3000 28504-3000 5 Body RJT 28504-4000 28504-4000 Bevel Seat 28504-5000 28504-5000 DIN 28504-6000 28504-6000 SMS 28504-7000 28504-7000 7 / 8 Seals Std Mech. 28531-0103B 28531-0103B Hard Faced 28531-0203B 28531-0203B Service Kit 3A Neoprene SK379-0115 SK379-0125 E.P.D.M. Models with Neoprene and E.P.D.M. impellers use Nitrile elastomers on seals and O-rings. NOTE:- Service Kits contain standard mechanical seals. For hard faced seals, order parts separately. Standard head kits, for close coupling to standard IEC motors. 5/00 370 Size Hygienic Stainless Steel FIP Pump Parts List Spare Parts & Service Kits Dimensions in mm 28500 Series Other Available Options Flushed Seal For performance data refer to the 370 size flexible impeller pump performance curves
