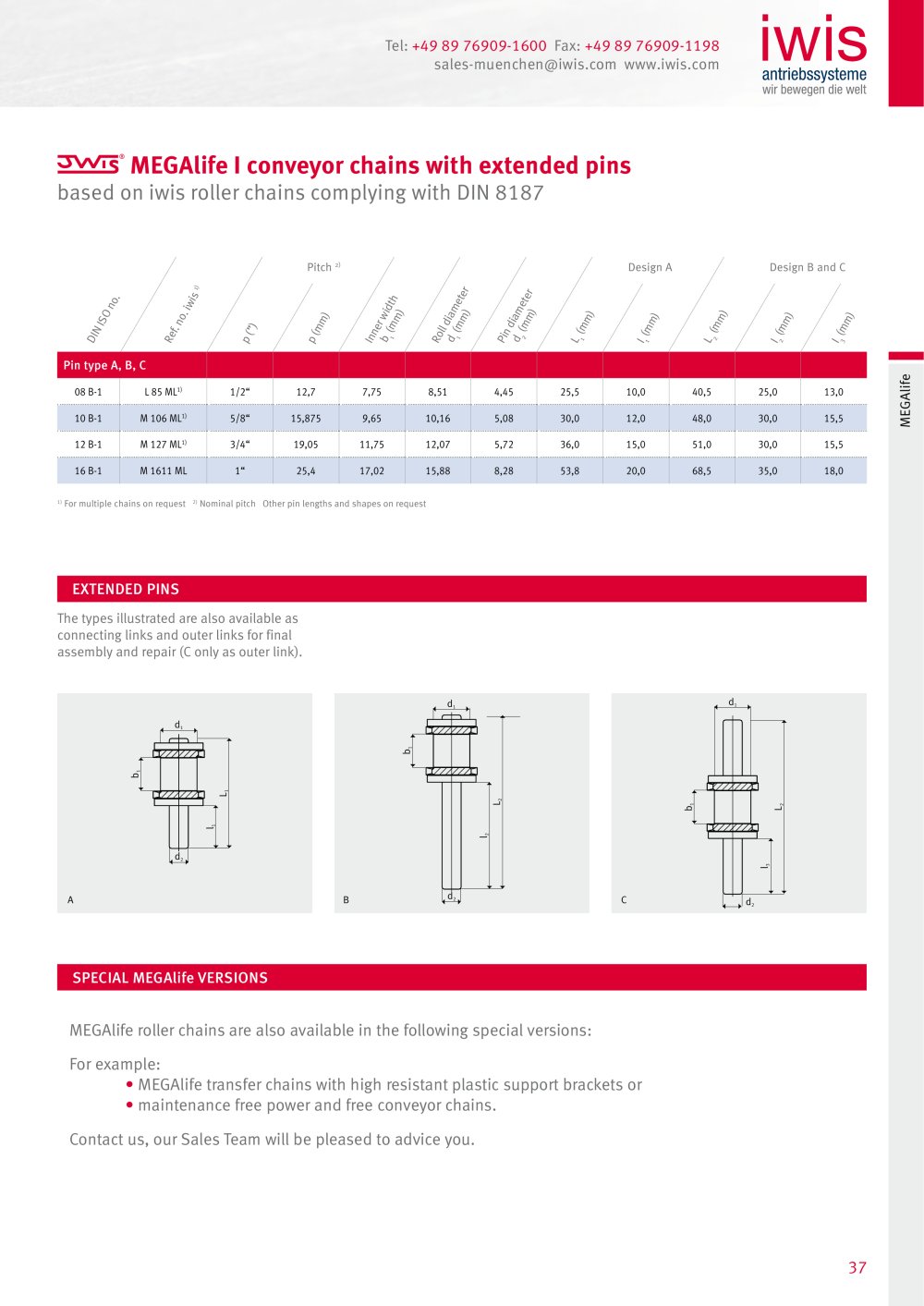

MEGAlife I conveyor chains with extended pins
based on iwis roller chains complying with DIN 8187
Pin type A, B, C
08 B-1
L 85 ML1'
1/2"
12,7
7,75
8,51
4,45
25,5
10,0
40,5
25,0
13,0
10 B-1
......................................................
M 106 ML1'
5/8"
15,875
9,65
10,16
5,08
30,0
12,0
48,0
30,0
15,5
12 B-1
M 127 ML1'
3/4"
19,05
11,75
12,07
5,72
36,0
15,0
51,0
30,0
15,5
16 B-1
M 1611 ML
1"
25,4
17,02
15,88
8,28
53,8
20,0
68,5
35,0
18,0
1 For multiple chains on request 2' Nominal pitch Other pin lengths and shapes on request
EXTENDED PINS
The types illustrated are also available as connecting links and outer links for final assembly and repair (C only as outer link'.
SPECIAL MEGAlife VERSIONS
MEGAlife roller chains are also available in the following special versions: For example:
• MEGAlife transfer chains with high resistant plastic support brackets or
• maintenance free power and free conveyor chains.
Contact us, our Sales Team will be pleased to advice you.
