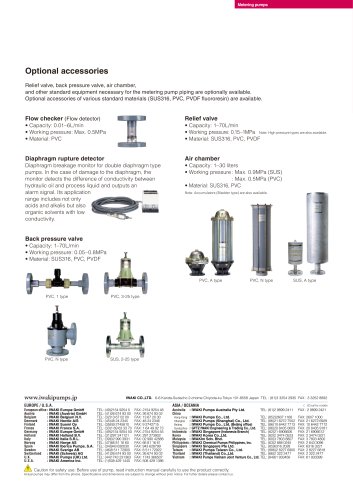

Hydraulic diaphragm metering pumps AX series - 12 / 12 Pages

Metering pumps
Optional accessories
Relief valve, back pressure valve, air chamber,
and other standard equipment necessary for the metering pump piping are optionally available. Optional accessories of various standard materials (SUS316, PVC, PVDF fluororesin) are available.
Flow checker (Flow detector)
• Capacity: 0.01-6L/min
• Working pressure: Max. 0.5MPa
• Material: PVC
Relief valve
• Capacity: 1-70L/min
• Working pressure: 0.15-1MPa Note: Highpressuretypesarealsoavailable
• Material: SUS316, PVC, PVDF
Diaphragm rupture detector
Diaphragm breakage monitor for double diaphragm type pumps. In the case of damage to the diaphragm, the monitor detects the difference of conductivity between hydraulic oil and process liquid and outputs an alarm signal. Its application ---
range includes not only acids and alkalis but also organic solvents with low conductivity.
Air chamber
• Capacity: 1-30 liters
• Working pressure : Max. 0.9MPa (SUS)
: Max. 0.5MPa(PVC)
• Material: SUS316, PVC
Note: Accumulators (Bladder type) are also available
Back pressure valve
• Capacity: 1-70L/min
• Working pressure: 0.05-0.8MPa
• Material: SUS316, PVC, PVDF
PVC, A type
PVC, N type
SUS, A type
PVC, 1 type
PVC, 3-25 type
F---1
SUS, 2-25 type
PVC, N type
www.iwakipumps.jp
IWAKI CO.,LTD. 6-6 Kanda-Sudacho 2-chome Chiyoda-ku Tokyo 101-8558 Japan TEL : (81)3 3254 2935 FAX : 3 3252 8892
EUROPE / U.S.A.
European office: IWAKI Europe GmbH
Austria : IWAKI (Austria) GmbH
Belgium : IWAKI Belgium N.V.
Denmark : IWAKI Nordic A/S
Finland : IWAKI Suomi Oy
France : IWAKI France S.A.
Germany : IWAKI Europe GmbH
Holland : IWAKI Holland B.V.
Italy : IWAKI Italia S.R.L.
Norway : IWAKI Norge AS
Spain : IWAKI Iberica Pumps, S.A.
Sweden : IWAKI Sverige AB
Switzerland : IWAKI (Schweiz) AG
U.K. : IWAKI Pumps (UK) Ltd.
U.S.A. : IWAKI America Inc.
ASIA / OCEANIA
( )Country codes FAX : 2 9899 2421
FAX: 2607 1000 FAX: 21 6272 6929 FAX: 10 6442 7712 FAX: 20 8435 9181 FAX: 21 6906612 FAX: 2 3474 0221 FAX: 3 7803 4800 FAX: 2 843 3096 FAX: 6316 3221 FAX: 2 8227 6818 FAX: 2 322 2477 FAX: 61 933399
TEL: (49)2154 9254 0 TEL: (41)26 674 93 00 TEL: (32)13 67 02 00 TEL: (45)48 24 2345 TEL: (358)9 2745810 TEL: (33)1 69 63 33 70 TEL: (49)2154 9254 50 TEL: (31)297 241121 TEL: (39)02 990 3931 TEL: (47)66 81 16 60 TEL: (34)943 630030 TEL: (46)8 511 72900 TEL: (41)26 674 93 00 TEL: (44)1743 231363 TEL: (1)508 429 1440
FAX: 2154 9254 48 FAX: 26 674 93 02 FAX: 13 67 20 30 FAX: 48 24 2346 FAX: 9 2742715 FAX: 1 64 49 92 73 FAX: 2154 9254 55 FAX: 297 273902 FAX: 02 990 42888 FAX: 66 81 16 61 FAX: 943 628799 FAX: 8 511 72922 FAX: 26 674 93 02 FAX: 1743 366507 FAX: 508 429 1386
Australia : IWAKI Pumps Australia Pty Ltd.
TEL: (61)2 9899 2411
China
HongKong : IWAKI Pumps Co., Ltd. TEL: (852)2607 1168 Shanghai : IWAKI Pumps (Shanghai) Co., Ltd. TEL: (86)21 6272 7502 Beijing : IWAKI Pumps Co., Ltd. (Beijing office) TEL: (86)10 6442 7713 Guangzhou : GFTZ IWAKI Engineering & Trading Co., Ltd. TEL: (86)20 8435 0603 Indonesia : IWAKI Singapore (Indonesia Branch) TEL: (62)21 6906606
Korea : IWAKI Korea Co.,Ltd.
Malaysia : IWAKIm Sdn. Bhd. Philippines : IWAKI Chemical Pumps Philippines, Inc. Singapore : IWAKI Singapore Pte Ltd. Taiwan : IWAKI Pumps Taiwan Co., Ltd. Thailand : IWAKI (Thailand) Cc.Ltd.
TEL: (82)2 3474 0523 TEL: (60)3 7803 8807 TEL: (63)2 888 0245 TEL: (65)6316 2028 TEL: (886)2 8227 6900 TEL: (66)2 322 2471
Vietnam
: IWAKI Pumps Vietnam Joint Venture Co., Ltd. TEL: (84)61 933456
Caution for safety use: Before use of pump, read instruction manual carefully to use the product correctly
Actual pumps may differ from the photos. Specifications and dimensions are subject to change without prior notice. For futher details please contact us.
